- Product description
-
Product description

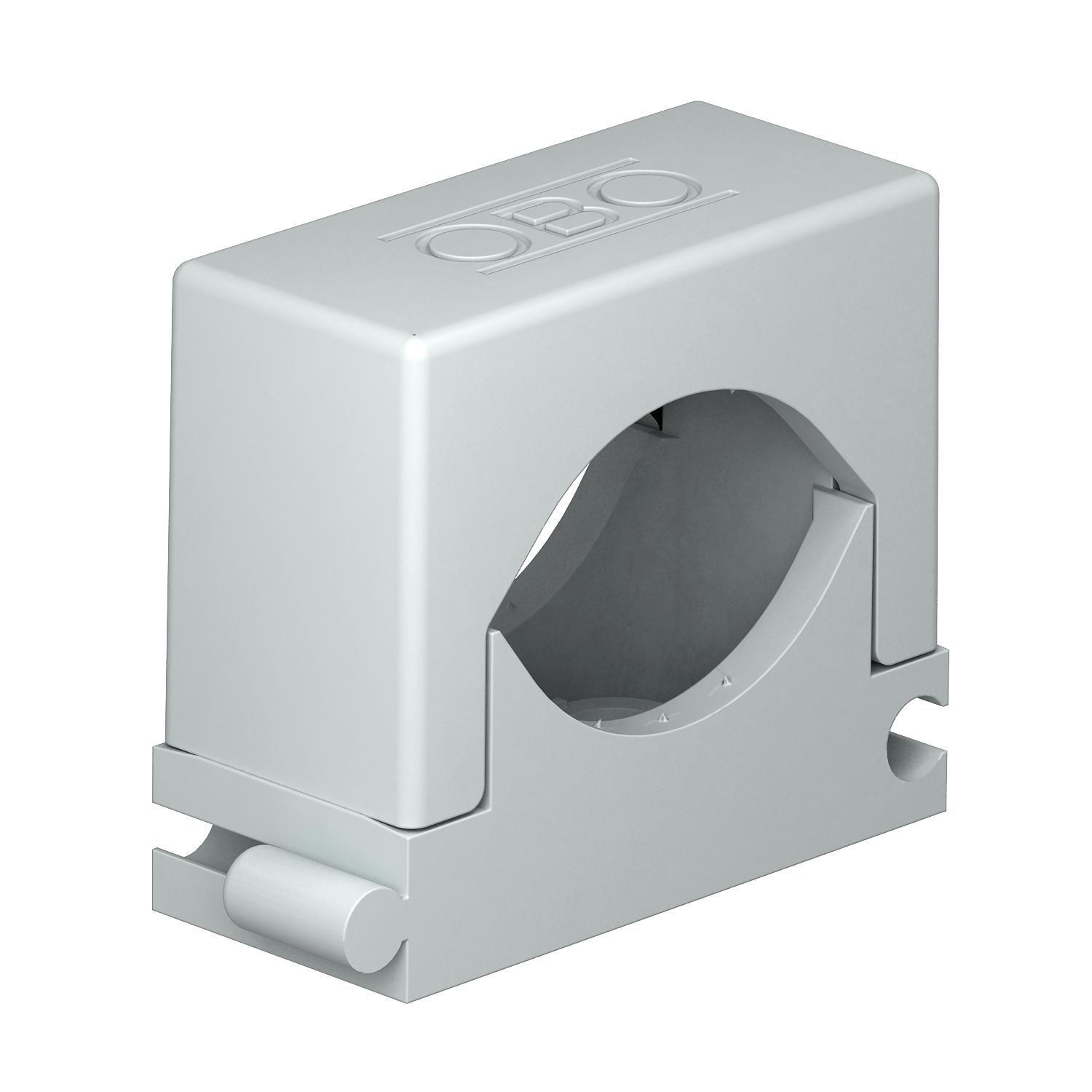

Universal clip for the single fastening of cables and pipes, all sizes can be seamlessly expanded among each other, with adhesive foot, slot and for screwing to M6 thread.
To stick the polyamide clips to masonry and concrete, use Impu-Fix ribbon conductor quick adhesive, type 509.
*Sizes 3–7 are not suitable for nail guns.
- Technical data
-
Technical data

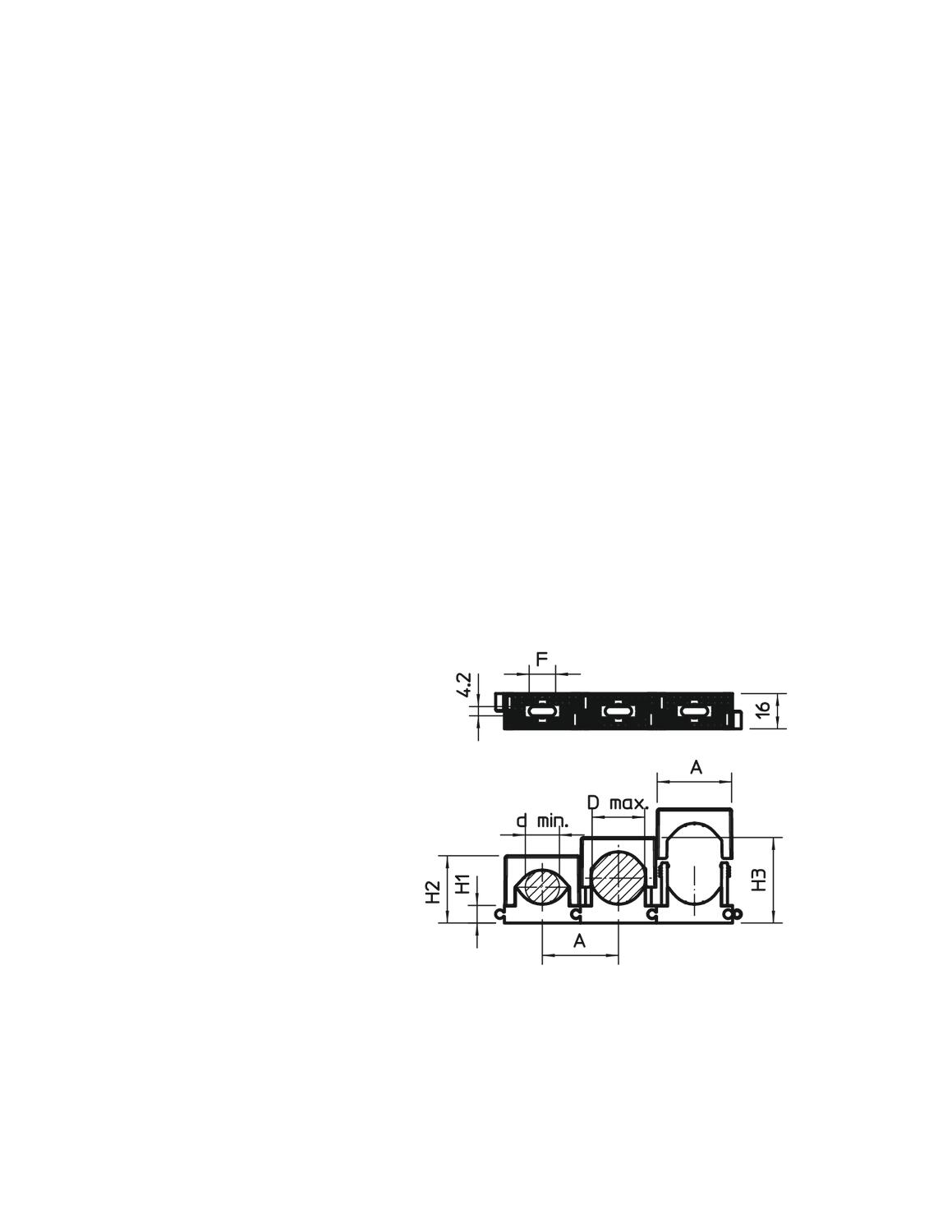

Clamping range D, max. 24 mm Clamping range D, min. 16 mm Colour Light grey; RAL 7035 Dimension 16-24mm Dimension A 34,5 mm Dimension d max. 24 mm Dimension d min. 16 mm Dimension F 12 mm Dimension H1 8,5 mm Dimension H2 31 mm Dimension H3 39 mm Expandable yes Fastening type Screw hole Halogen-free yes Impact-resistant no Material Polyamide Number of cables/pipes 1 - All types
-
All types
- Downloads
-
Data sheet 2037 16-24 LGR / 2250241 , 0.18MB , pdfDeclaration of conformity 2037 16-24 LGR / 2250241 , 0.13MB , pdfREACH Declaration of conformity 2037 16-24 LGR / 2250241 , 0.12MB , pdfRoHS Declaration of conformity 2037 16-24 LGR / 2250241 , 0.12MB , pdf
