Series pressure clip, light grey 18 | 30 | Light grey; RAL 7035

Series pressure clip, light grey

Item no. 2250306 | EAN 4012195221531

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

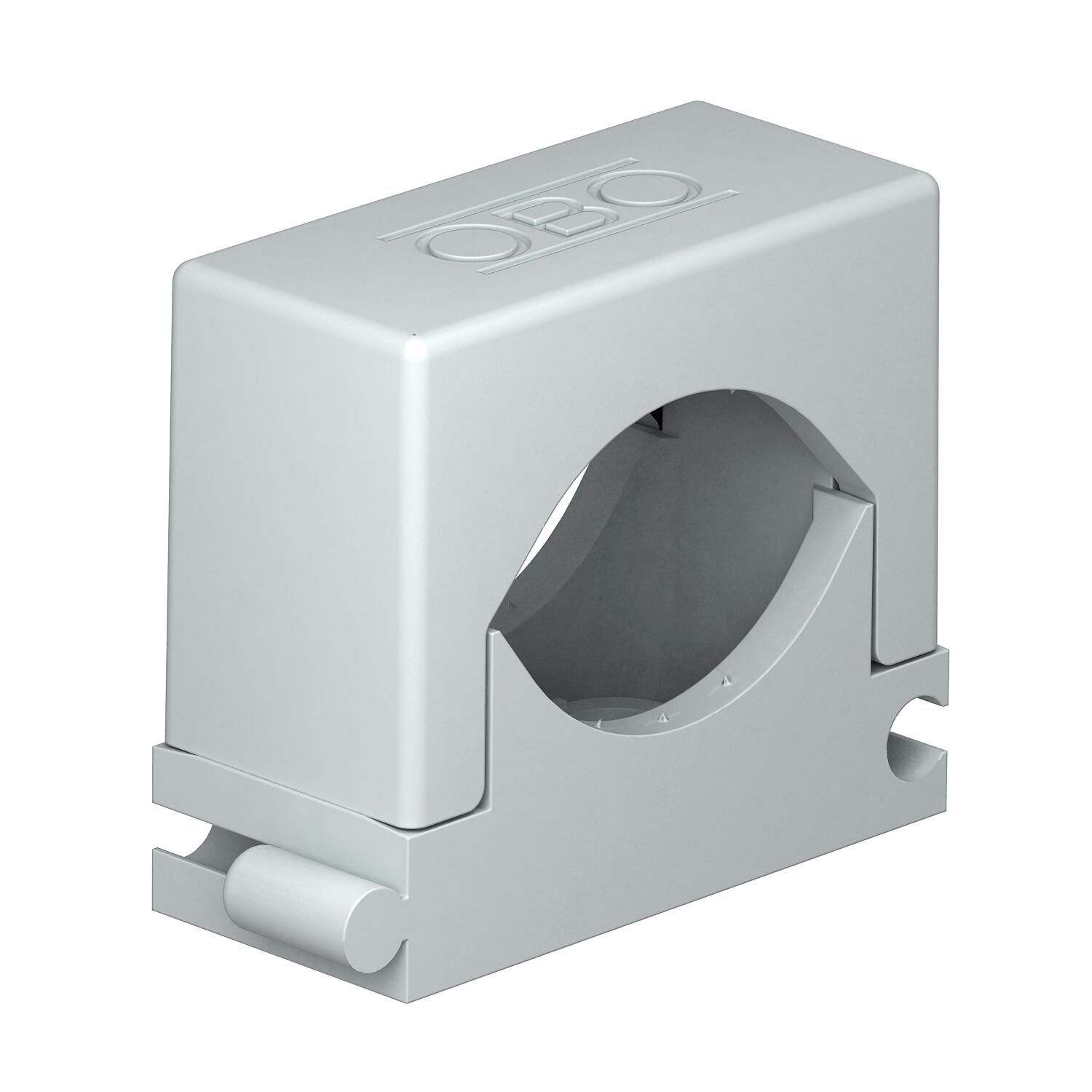

Universal clip for the single fastening of cables and pipes, all sizes can be seamlessly expanded among each other, with adhesive foot, slot and for screwing to M6 thread.
To stick the polyamide clips to masonry and concrete, use Impu-Fix ribbon conductor quick adhesive, type 509.
*Sizes 3–7 are not suitable for nail guns.

Technical data

Technical data

Clamping range D, max.	30 mm
Clamping range D, min.	18 mm
Colour	Light grey; RAL 7035
Dimension	18-30mm

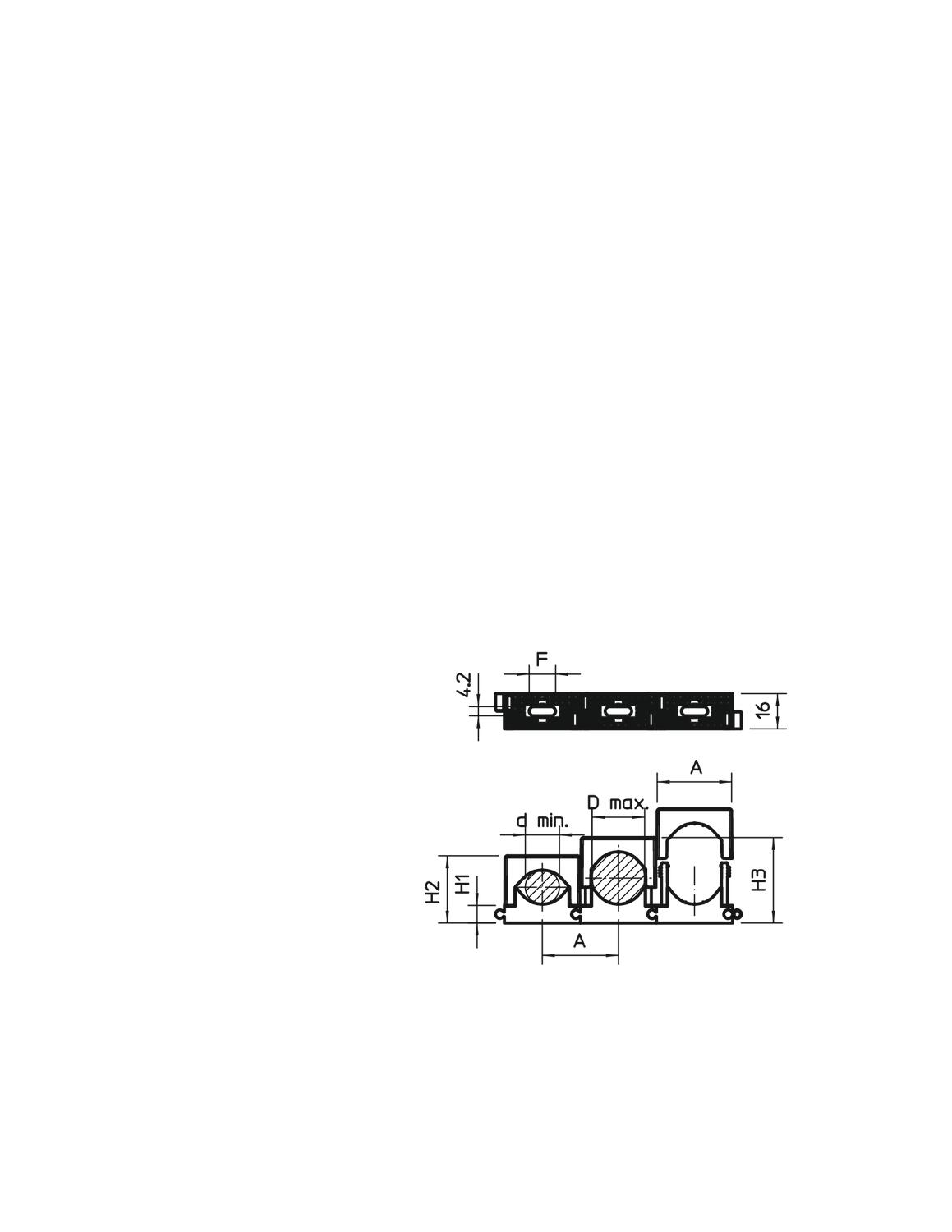

Dimension A	40 mm
Dimension d max.	30 mm
Dimension d min.	18 mm
Dimension F	12 mm
Dimension H1	9 mm

Dimension H2	34 mm
Dimension H3	46 mm
Expandable	yes
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	no
Material	Polyamide
Number of cables/pipes	1

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
2037 3-7 LGR	3 mm	7 mm	Light grey; RAL 7035	2250071	piece	100 piece
2037 6-13 LGR	6 mm	13 mm	Light grey; RAL 7035	2250136	piece	100 piece
2037 12-20 LGR	12 mm	20 mm	Light grey; RAL 7035	2250209	piece	50 piece
2037 16-24 LGR	16 mm	24 mm	Light grey; RAL 7035	2250241	piece	50 piece
2037 18-30 LGR	18 mm	30 mm	Light grey; RAL 7035	2250306	piece	25 piece
2037 27-43 LGR	27 mm	43 mm	Light grey; RAL 7035	2250438	piece	25 piece
