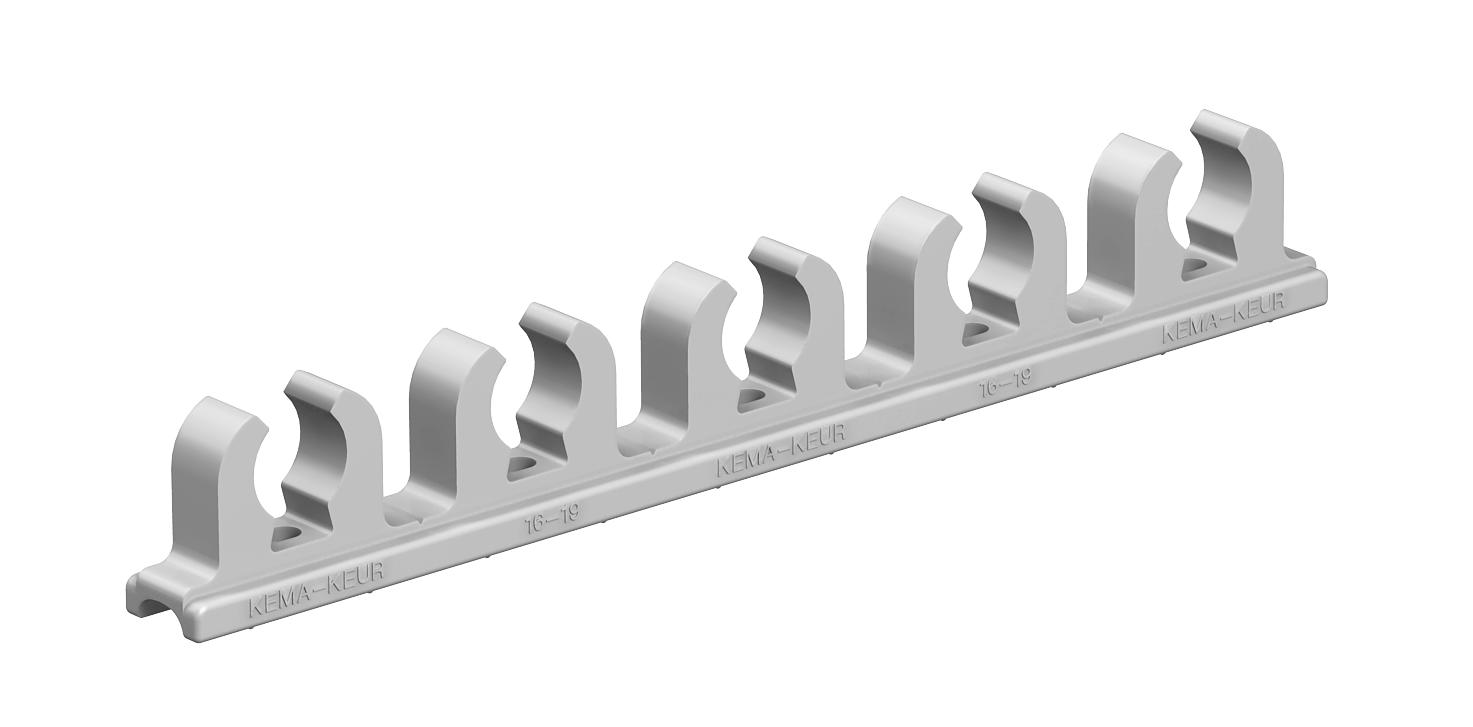

Series terminal clip 16 | 19 | Stone grey; RAL 7030

morepic-1

morepic-2

Series terminal clip

Item no. 2259745 | EAN 4012195616573

Item no. / Types

Clamping range D, min.	16 mm

Clamping range D, max.	19 mm

Colour

Product description

Product description

Individually separable, for pushing into profile rails.

Technical data

Technical data

Clamping range D, max.	19 mm
Clamping range D, min.	16 mm
Colour	Stone grey; RAL 7030
Dimension	16-19mm
Fastening type	Rail fastening
for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes

Impact-resistant	no
Material	Polyethylene
Number of cables/pipes	1
Number of clips per strip	3
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
Version for	Closed

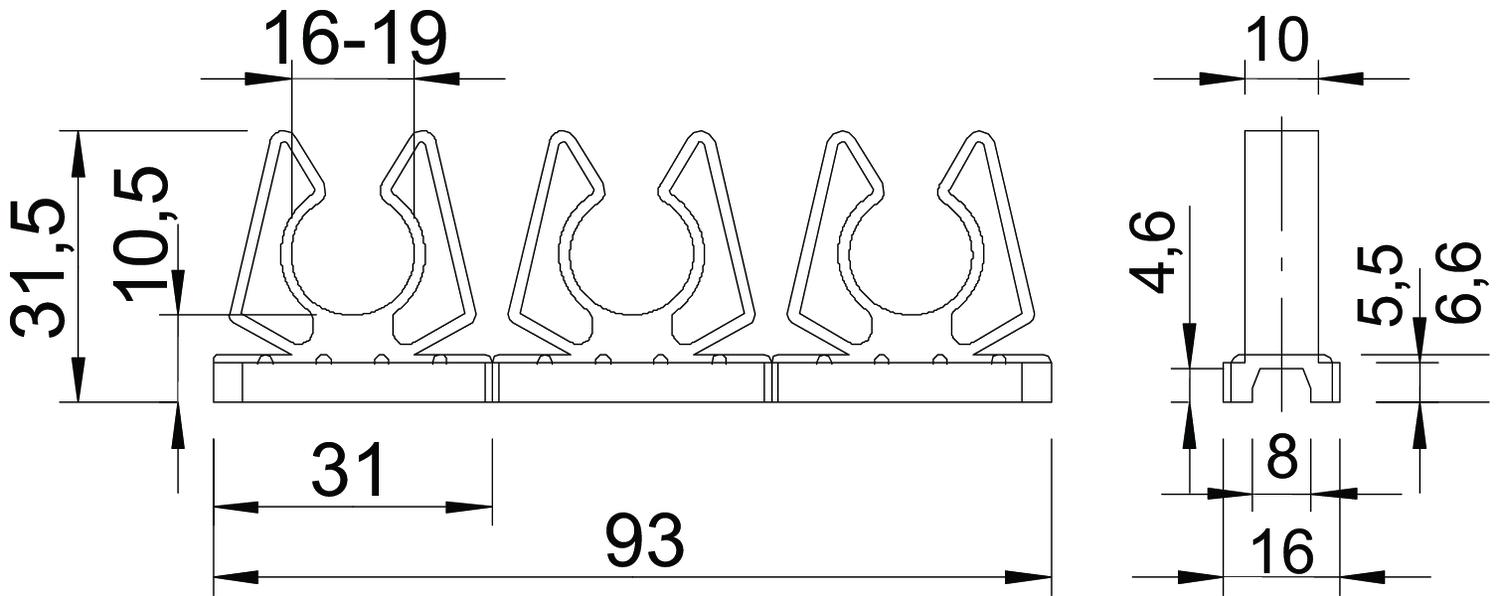

Dimensions

Dimension A	31 mm
Dimension B	93 mm

Dimension H	31,5 mm
Dimension H1	10,5 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
2036 19 NL STGR	16 mm	19 mm	Stone grey; RAL 7030	2259745	piece	25 piece
2036 19 NL CW	16 mm	19 mm	Cream; RAL 9001	2259796	piece	25 piece
