Serrated washer DIN 6798 A2 11 | 6.4 | 2.1 | M6

morepic-1

morepic-2

Serrated washer DIN 6798 A2

Item no. 3404331 | EAN 4012195301936

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Serrated washer to DIN 6798, shape A.

Technical data

Technical data

Diameter	11 mm
Dimension	M6
External diameter	11 mm
Inner diameter	0,25 mm
Lock washer version	Open external gearing

Material	Stainless steel
Plate thickness	0,08 in
Surface	Bright, treated
Thickness	2,1 mm
Thread	M6

Dimensions

Dimension d	6,4 mm
Dimension d min.	11 mm

Dimension h	2,1 mm
Height	2,1 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
SWS M6 A2	11 mm	6.4 mm	2.1 mm	M6	3404331	piece	100 piece
SWS M8 A2	15 mm	8.4 mm	2.4 mm	M8	3404358	piece	100 piece

Downloads

Data sheet SWS M6 A2 / 3404331 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

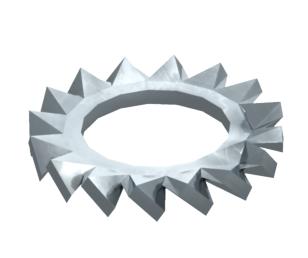

Product graphic SWS M6 A2 / 3404331, 9.90 kB, jpg

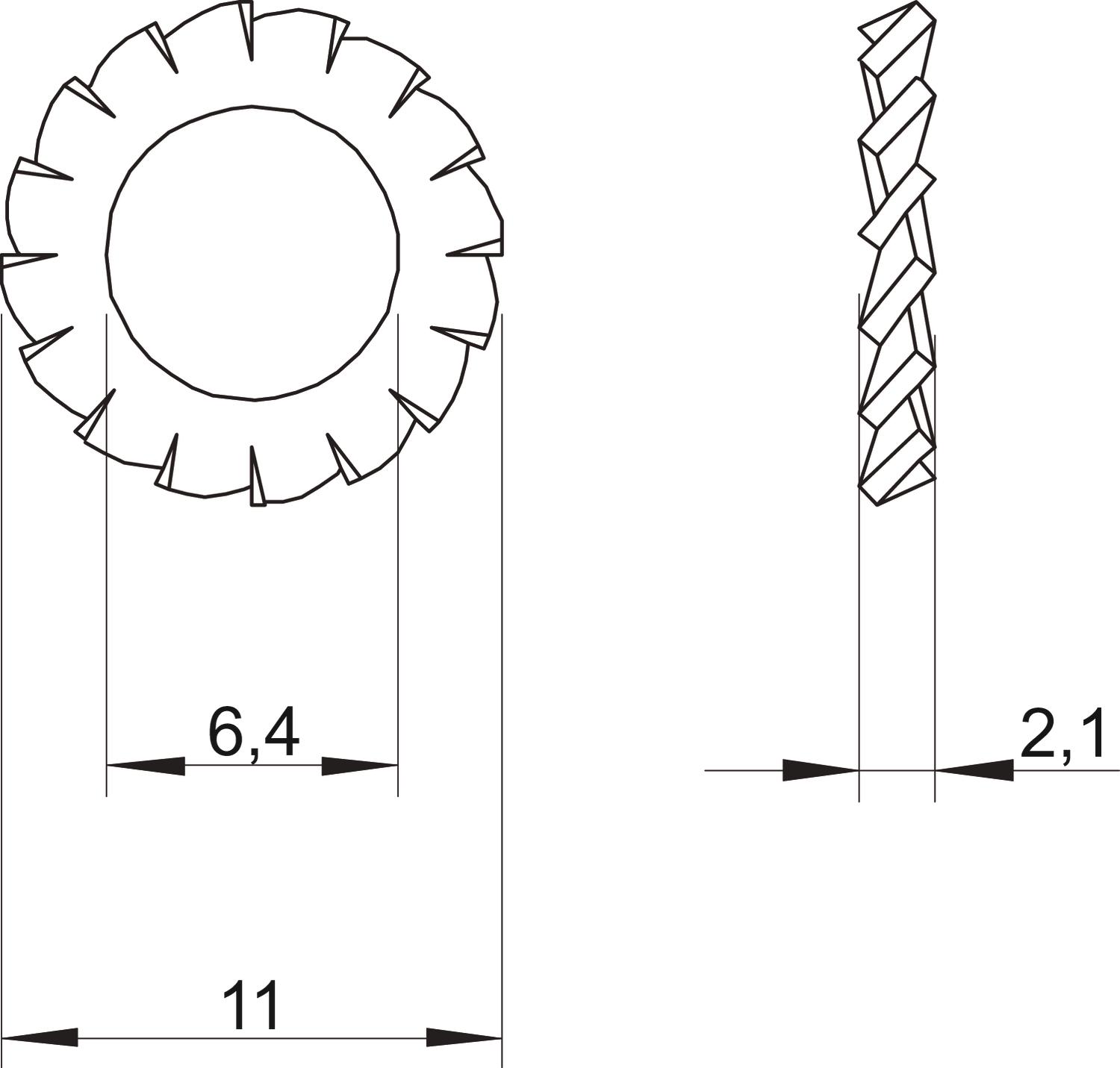

Scale drawing SWS M6 A2 / 3404331, 80.73 kB, jpg

SWS M6 A2 / 3404331
