Serrated washer DIN 6798 A4 20.5 | 13 | 3 | M12

morepic-1

morepic-2

Serrated washer DIN 6798 A4

Item no. 3404385 | EAN 4012196095537

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Serrated washer to DIN 6798, shape A.

Technical data

Technical data

Diameter	20,5 mm
Dimension	M12
Dimension d	13 mm
Dimension d max.	20,5 mm
Dimension d min.	20,5 mm
Dimension h	3 mm
External diameter	20,5 mm

Height	3 mm
Inner diameter	13 mm
Lock washer version	Open external gearing
Material	Stainless steel
Surface	Bright, treated
Thickness	3 mm
Thread	M12

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
SWS M6 A4	11 mm	6.4 mm	2.1 mm	M6	3404372	piece	1000 piece
SWS M8 A4	15 mm	8.4 mm	2.4 mm	M8	3404377	piece	100 piece
SWS M10 A4	18 mm	10.5 mm	2.7 mm	M10	3404381	piece	100 piece
SWS M12 A4	20.5 mm	13 mm	3 mm	M12	3404385	piece	100 piece

Downloads

Data sheet SWS M12 A4 / 3404385 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

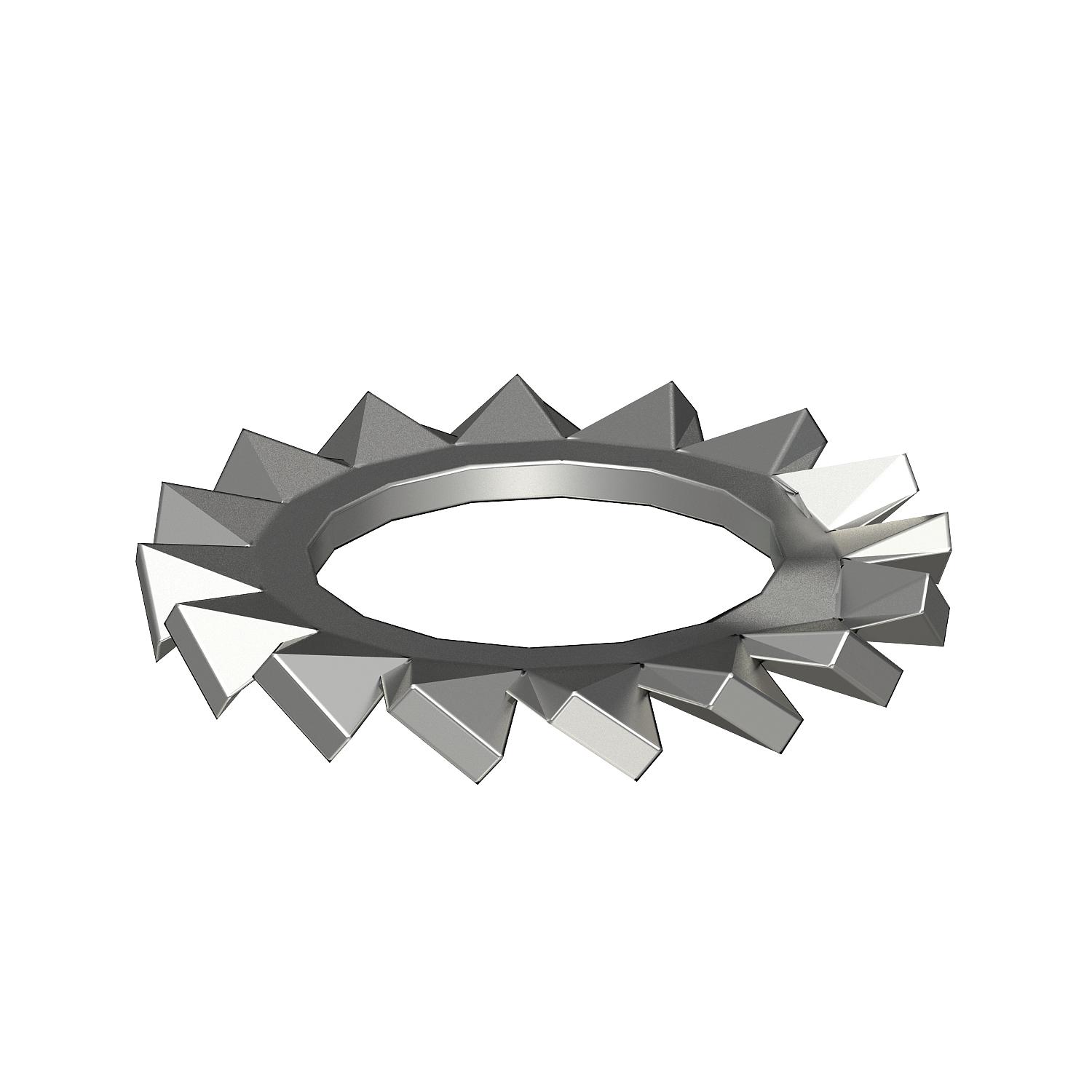

Product graphic SWS M12 A4 / 3404385, 71.13 kB, jpg

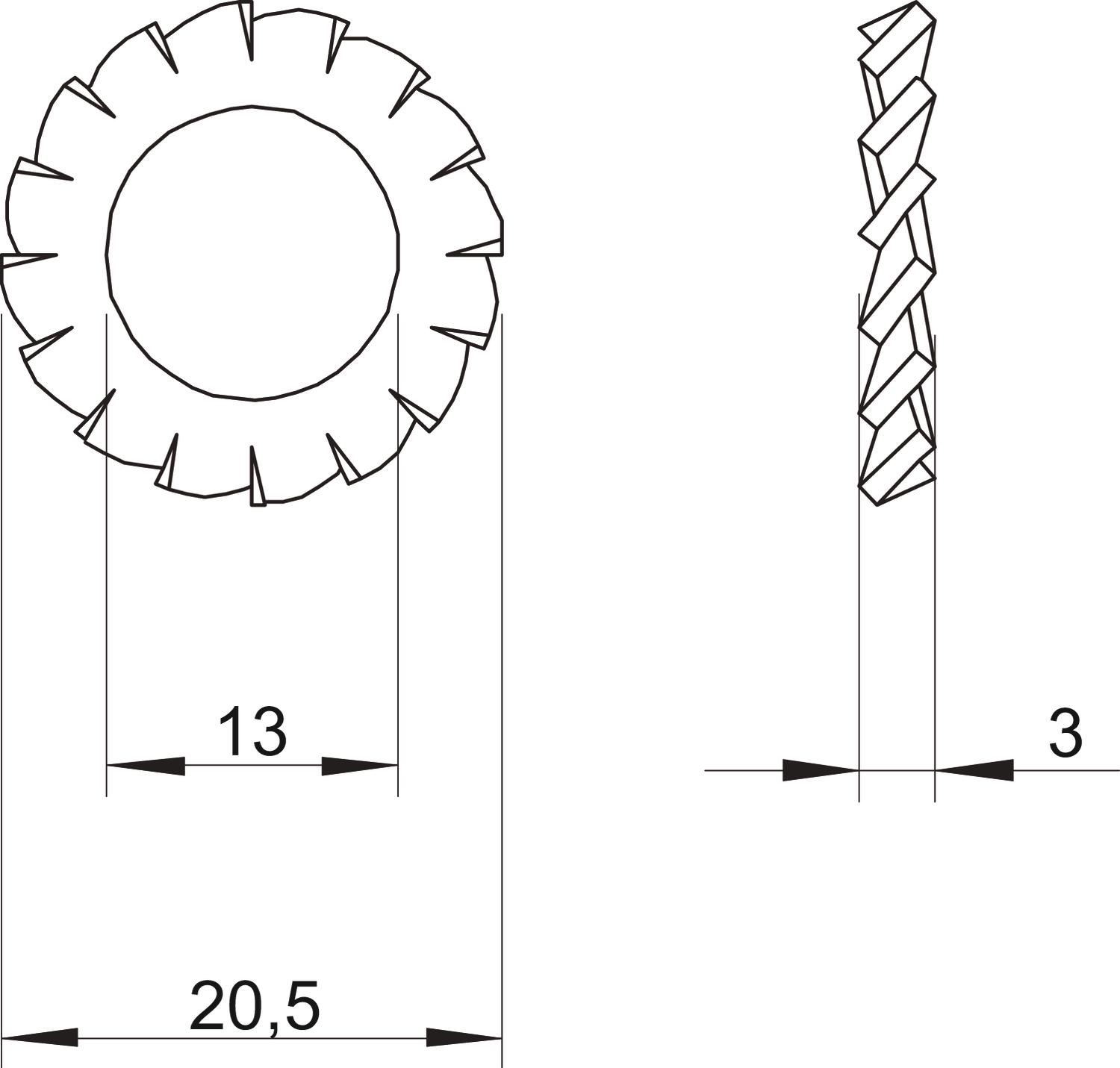

Scale drawing SWS M12 A4 / 3404385, 81.69 kB, jpg

SWS M12 A4 / 3404385
