Serrated washer DIN 6798 G 18 | 10.5 | 2.7 | M10
morepic-1 morepic-2

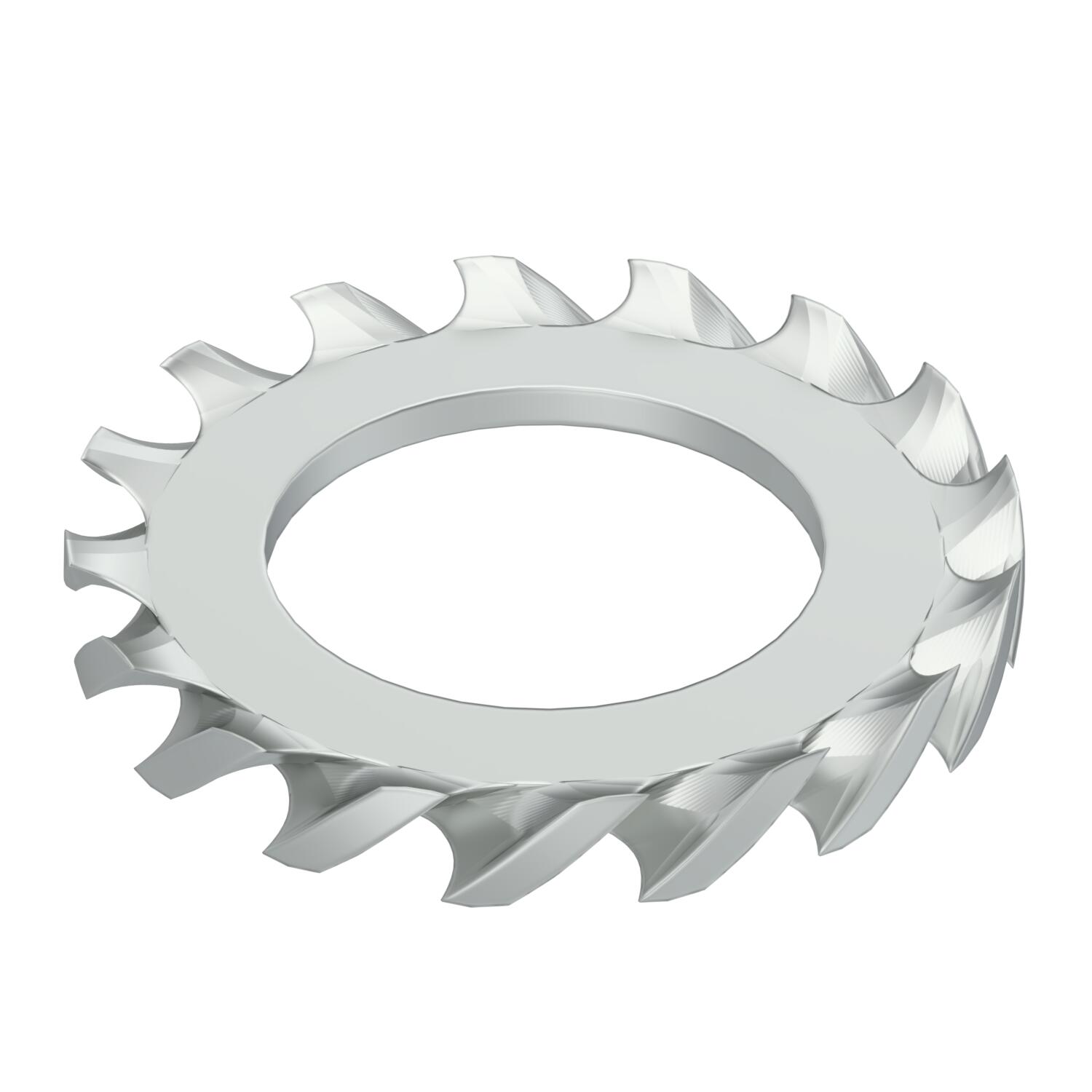

Serrated washer DIN 6798 G

Item no. 3404102 | EAN 4012195301752

Product description

Product description

Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

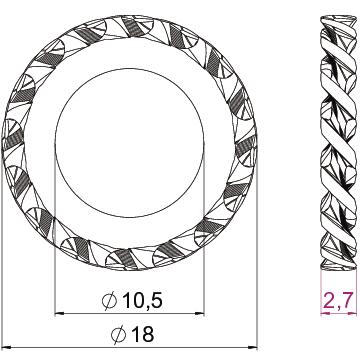

Diameter 18 mm
Dimension M10
Dimension d 10,5 mm
Dimension d max. 18 mm
Dimension d min. 18 mm
Dimension h 2,7 mm
External diameter 18 mm
Height 2,7 mm
Inner diameter 0,41 mm
Lock washer version Open external gearing
Material Steel
Plate thickness 0,11 in
Surface Electrogalvanized
Thickness 2,7 mm
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
SWS M5 G 10 mm 5.3 mm 1.8 mm M5 3404056
1000 piece
SWS M6 G 11 mm 6.4 mm 2.1 mm M6 3404064
1000 piece
SWS M8 G 15 mm 8.4 mm 2.4 mm M8 3404080
100 piece
SWS M10 G 18 mm 10.5 mm 2.7 mm M10 3404102
100 piece
SWS M12 G 20.5 mm 13 mm 3 mm M12 3404129
100 piece
