Serrated washer DIN 6798 G 20.5 | 13 | 3 | M12
morepic-1 morepic-2

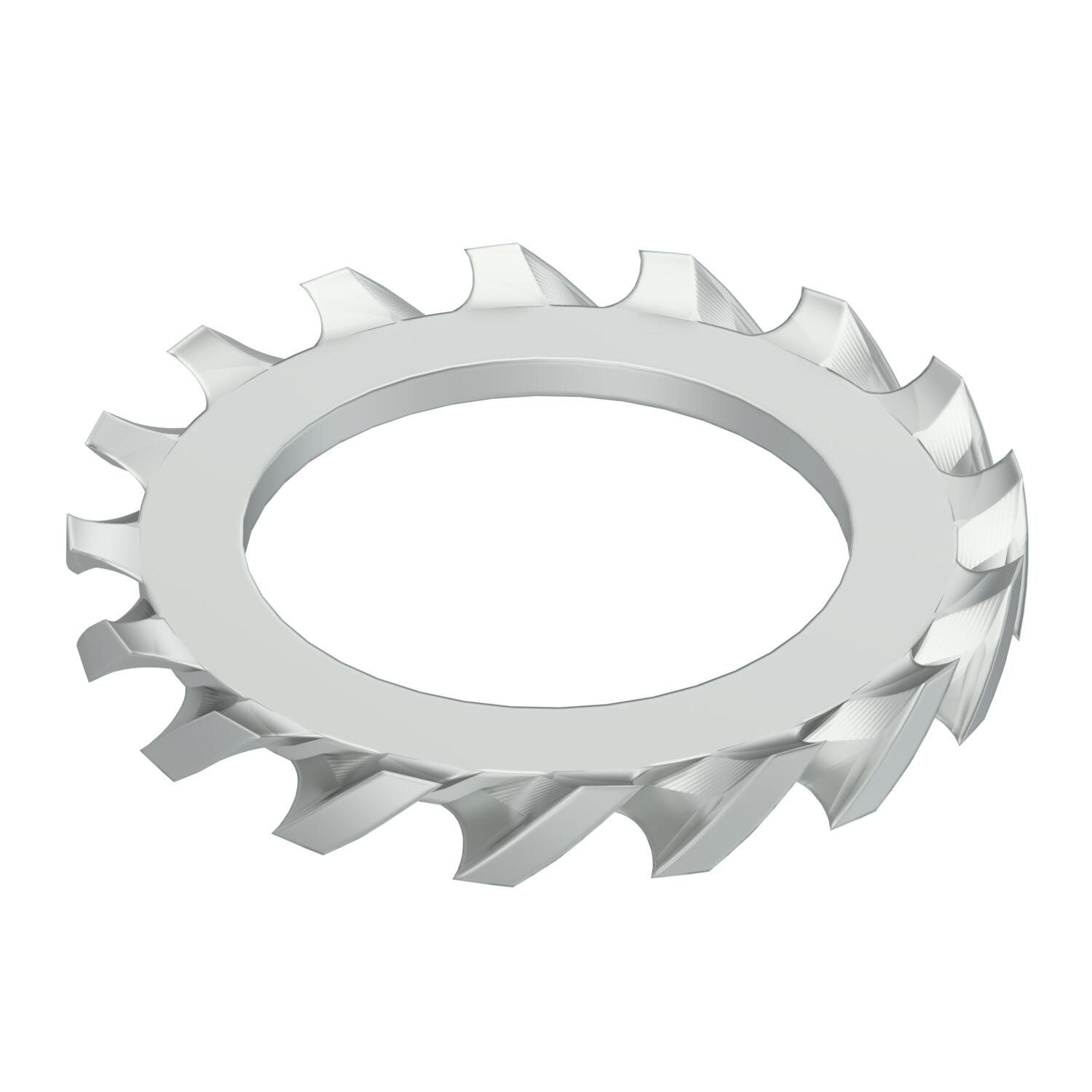

Serrated washer DIN 6798 G

Item no. 3404129 | EAN 4012195301813

Product description

Product description

Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

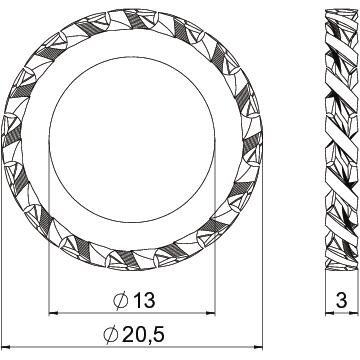

Diameter 20,5 mm
Dimension M12
Dimension d 13 mm
Dimension d max. 20,5 mm
Dimension d min. 20,5 mm
Dimension h 3 mm
External diameter 20,5 mm
Height 3 mm
Inner diameter 0,51 mm
Lock washer version Open external gearing
Material Steel
Plate thickness 0,12 in
Surface Electrogalvanized
Thickness 3 mm
Thread M12
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
SWS M5 G 10 mm 5.3 mm 1.8 mm M5 3404056
1000 piece
SWS M6 G 11 mm 6.4 mm 2.1 mm M6 3404064
1000 piece
SWS M8 G 15 mm 8.4 mm 2.4 mm M8 3404080
100 piece
SWS M10 G 18 mm 10.5 mm 2.7 mm M10 3404102
100 piece
SWS M12 G 20.5 mm 13 mm 3 mm M12 3404129
100 piece
Downloads

Download

Download

Declaration of conformity SWS M12 G / 3404129 , 0.06MB , pdf
Download
REACH Declaration of conformity SWS M12 G / 3404129 , 0.12MB , pdf
Download
RoHS Declaration of conformity SWS M12 G / 3404129 , 0.12MB , pdf
Download

SWS M12 G / 3404129
