Product description

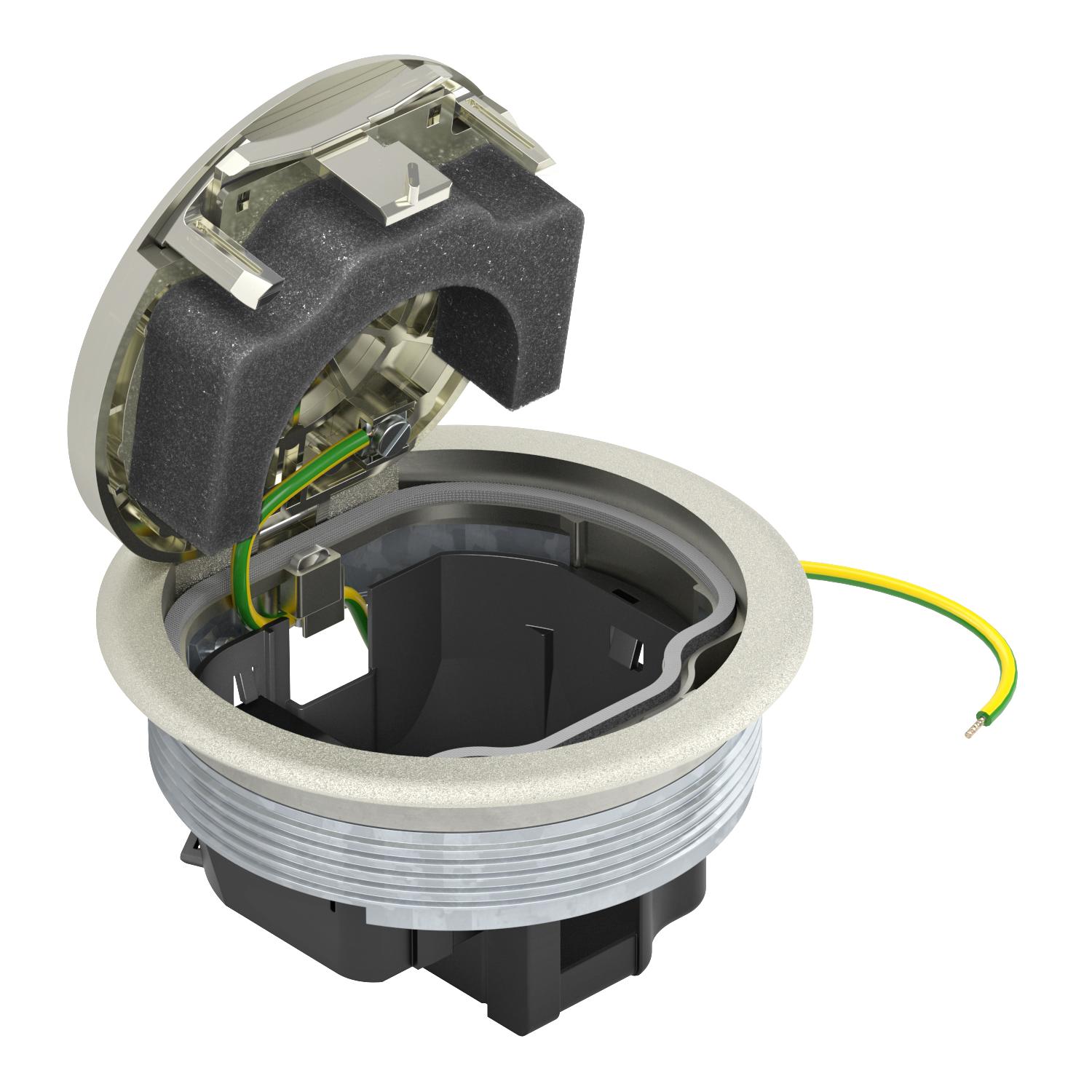

Round installation unit with floor covering protection frame for direct installation in the connection socket UDL2-120 for indoor use. When closed, the installation unit can be wet-cleaned. The minimum installation depth is 70 mm.
Cover plate and socket of the Modul 45 series should be ordered separately.
- Technical data
-
Technical data

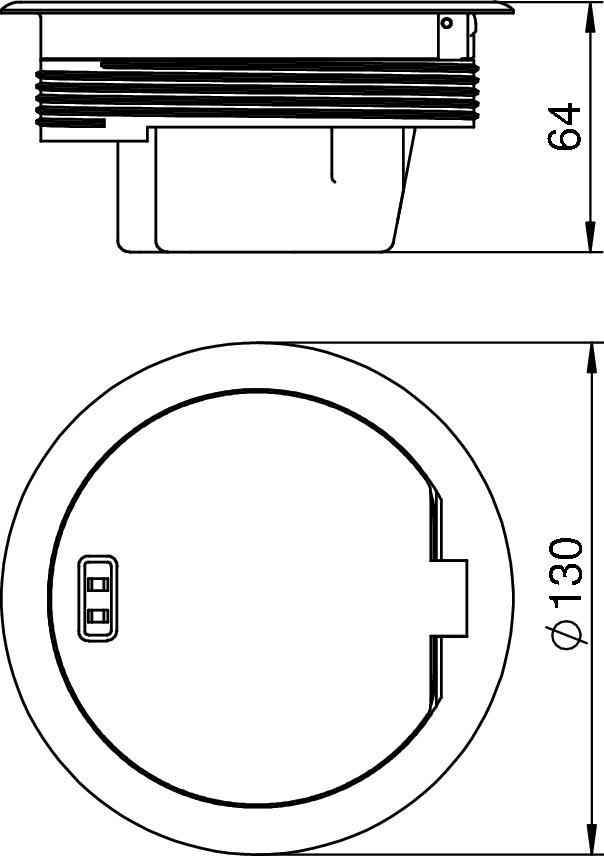

Dimension 130x130x64 External diameter 130 mm Floor care Wet Floor covering protection frame yes Material Die-cast zinc Opening mechanism Locking slider Protection rating (IP) when unused IP66 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for underfloor ducts yes Suitable for wet care yes Surface Nickel-plated Version for Round With floor covering recess no - All types
- Downloads
-
Data sheet GESRN2 / 7405713 , 0.30MB , pdfMounting instructions Mounting instructions, GESRM2 , 2.00MB , pdf
