Service outlet GRAF9-2 BA3, wet-cleaned with floor covering recess

Item no. 7405743 | EAN 4012196581634

7405743 / GRAF9-2 BA3
3 mm
R9
Product description

Product description

Service outlet with tube body for wet-cleaned floors for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct or trunking systems and system floors for indoor use.

Aluminium surface, polished, with a floor covering recess of 3 mm. For an installation depth of 65 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Approvals VDE
Cable outlet version Lowerable tube body

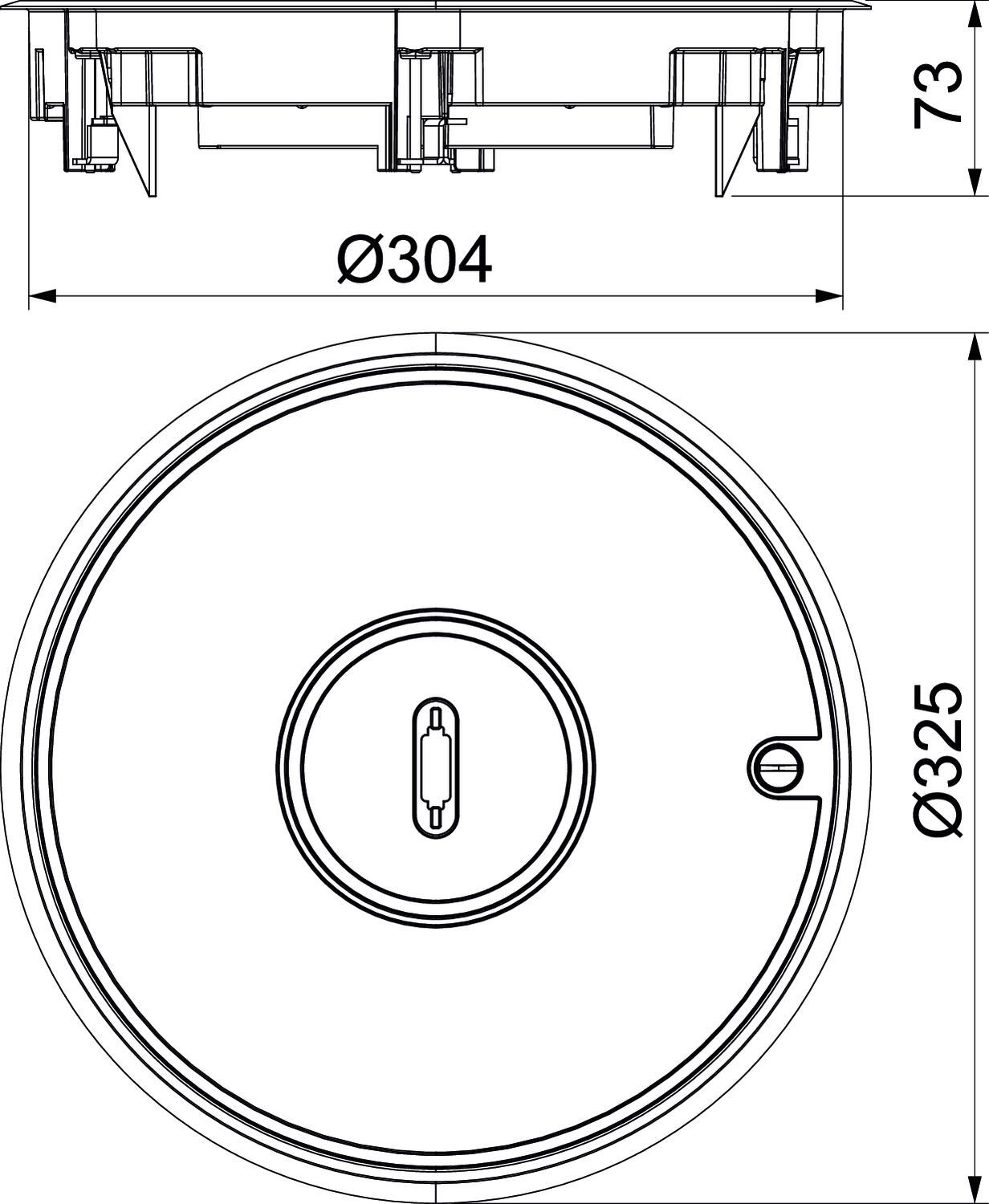

Dimension Ø325x73
External diameter 325 mm
Floor care Wet
Floor covering protection frame yes
Floor covering thickness 3 mm
Floor height, min. 80 mm
Frame version Carpet protection frame
Heavy-duty version yes
Installation diameter 305
Installation system type UT4
Material Cast aluminium
Nominal size for device installation units R9
Number of installable devices 12
Number of mounting boxes 3
Opening mechanism Sash lock
Protection rating (IP) when unused IP45
Protection rating (IP) when used IP20
Protection rating IK code IK10
Seal installation option yes
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts yes
Suitable for underfloor ducts yes
Suitable for wet care yes
Version for Round
Vertical load, large area to 10,000 N
Vertical load, small area to 3,000 N
With floor covering recess yes
All types

All types

Types Floor covering thickness Nominal size for device installation units Item no. Quantity SSU
GRAF9-2 BA3 3 mm R9 7405743
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Ladder extensions Ladder extensions GES RV 7407536
20 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 45 4 7408727
5 piece
Mounting support for data technology connection sockets, system length 208 mm Mounting support for data technology connection sockets, system length 208 mm MTU 3 7407840
10 piece
Support plate 2 x type C for mounting support Support plate 2 x type C for mounting support MTM 2C 7407788
15 piece
