Service outlet, round, for screed height 55 mm
Item no. 7405049 | EAN 4012195674467
- Product description
-
Product description

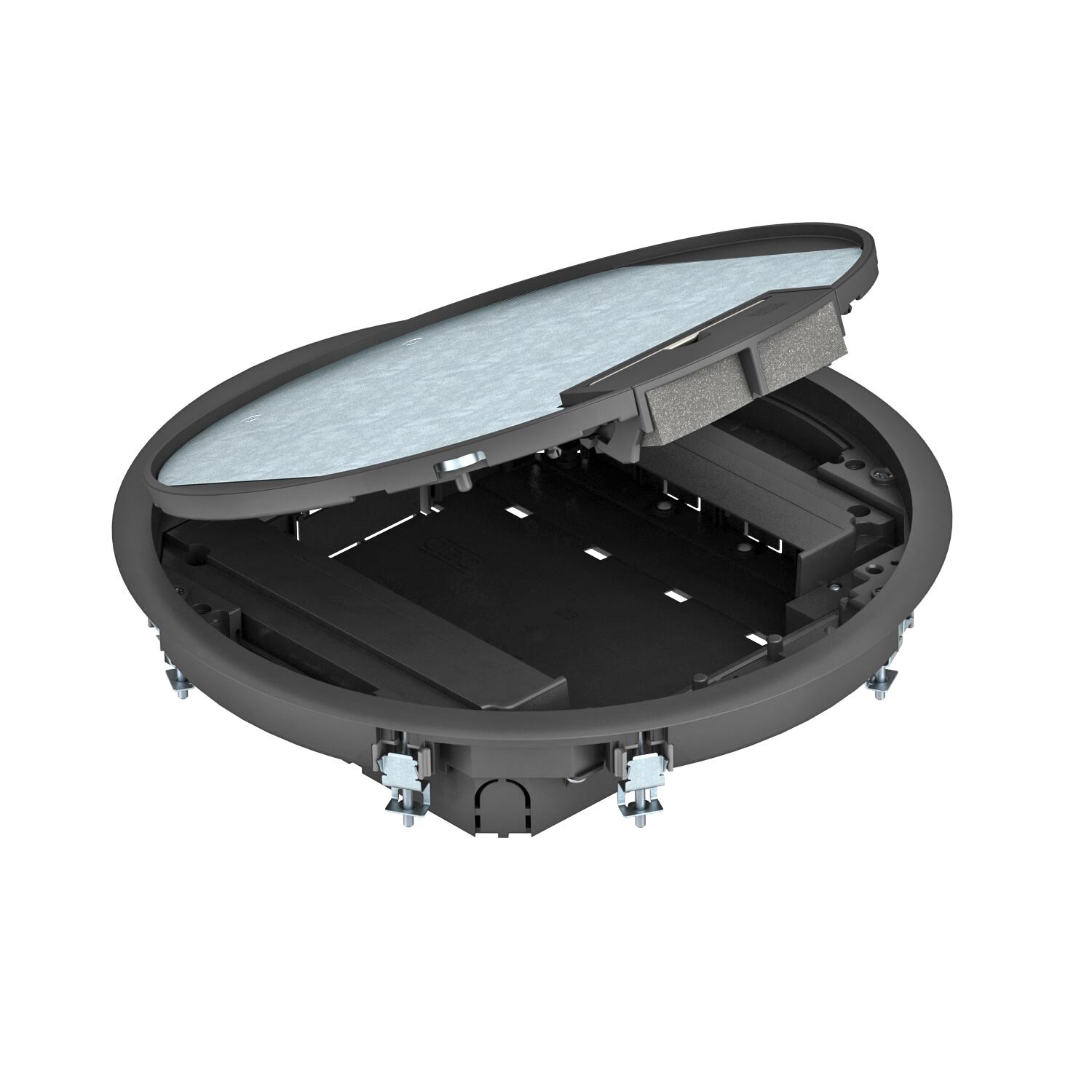

GESR9 service outlet with a fixed construction height of 55 mm for indoor use. With two fitted plug housings for vertical mounting of Modul 45 devices and four strain reliefs. Two installation frames are required to mount Modul 45 devices.
The data modules are mounted using an optional mounting plate MPMT45. The service outlet is equipped with universal fastening brackets.
-
- Technical data
-
Technical data

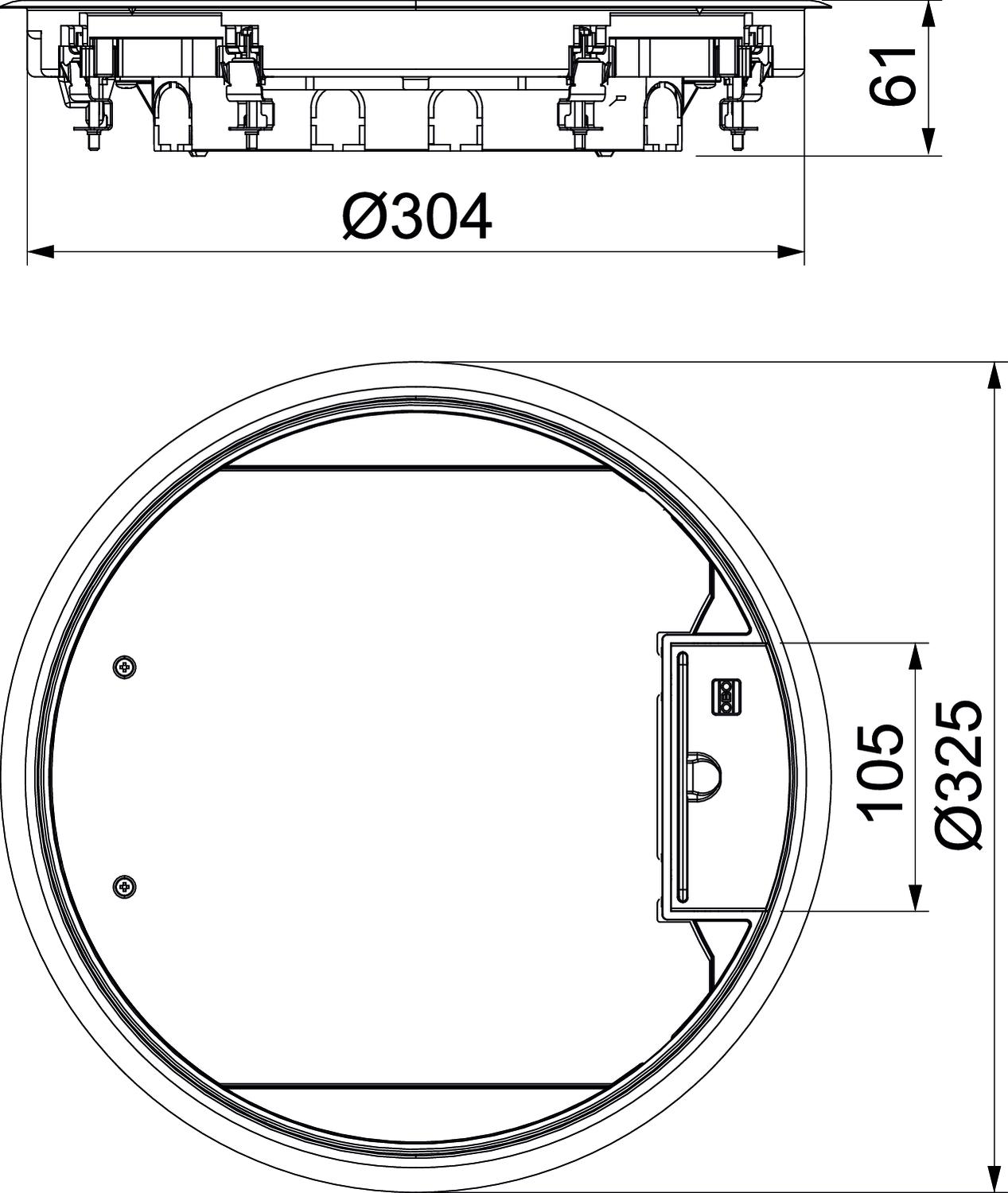

Cable outlet version Swivellable cord outlet Colour Graphite black; RAL 9011 Device support to accept mounting boxes no Dimension Ø325x61 External diameter 325 mm Floor care Dry Floor covering protection frame yes Floor covering thickness 5 mm Floor height, min. 58 mm Heavy-duty version no Height 61 mm Installation depth 58 mm Installation diameter 304 Length 325 mm Material Polyamide Nominal size for device installation units R9 Number of installable devices 8 Opening mechanism Handle Screed height, min. 55 mm Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Suitable for wet care no Version for Round Vertical load, large area to 5,000 N Vertical load, small area to 3,000 N Width 325 mm With floor covering recess no - All types
-
System accessories
Products Types Item no. Quantity SSU
Installation frame for four single Modul 45® devices
MT45V 4 7408670 50 piece
Installation frame for three single Modul 45® devices
MT45V 3 7408672 50 piece
Installation frame for combination of 3x and 1x Modul 45® devices
MT45V 3+1 7408680 50 piece
Installation frame for combination of 2x and 2x Modul 45® devices
MT45V 2+2 7408682 50 piece
Separating retainer for module support, vertical
MT45V TW 7408693 10 piece
Installation frame for MT45V, terminated with protective contact socket
MT45V 3 3WS V 7408697 10 piece
Mounting plate 2 x data socket type C for System 55
MPMT45 2C 7408705 25 piece - Downloads
-
Data sheet GESR9 55U V 9011 / 7405049 , 0.26MB , pdfLabel approval VDE symbol approval, GES 55 , 0.18MB , pdfNo invitation to tender text is available for this product.
