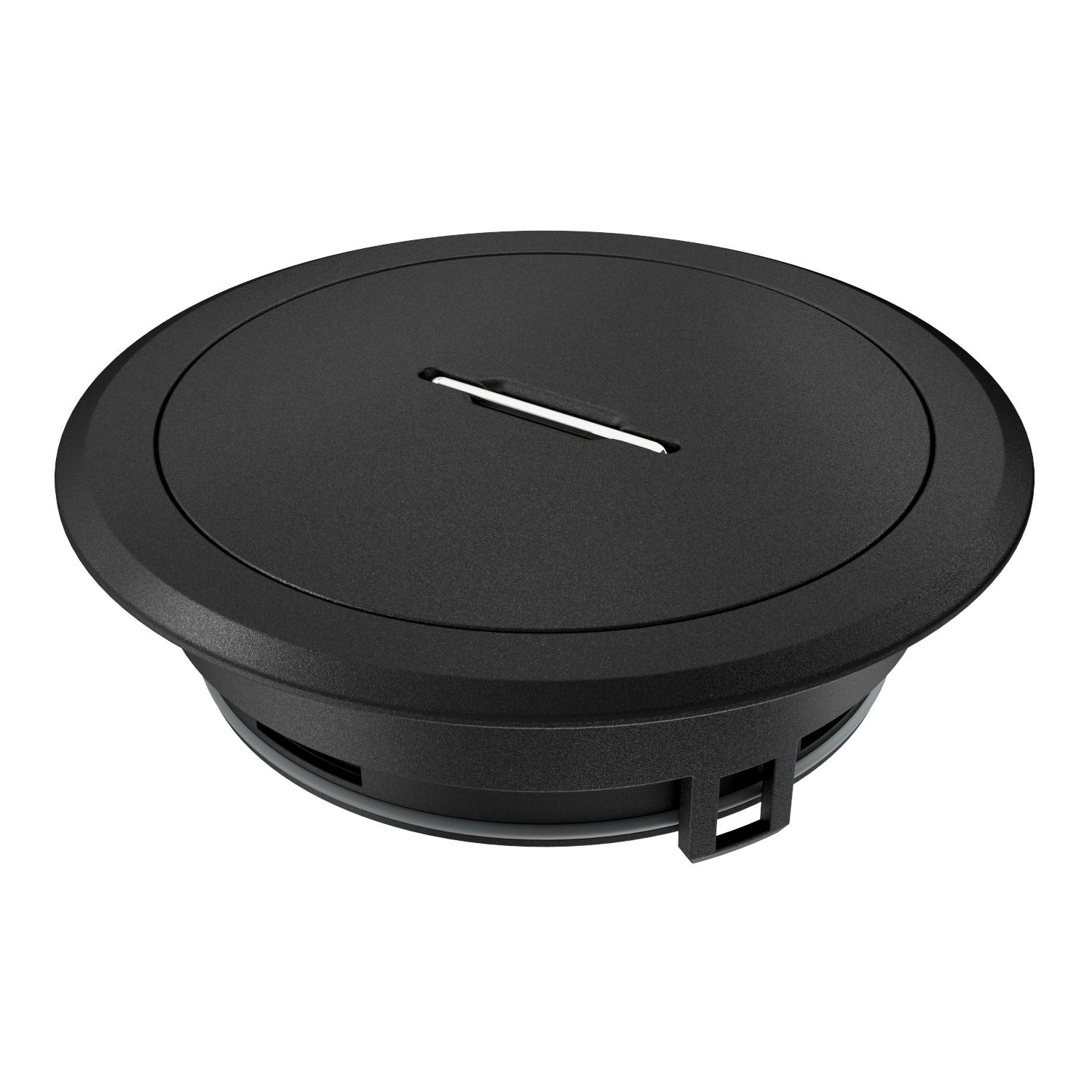

Service outlet with tube body and handle clamp, GES R2, deep black
Item no. 7408857 | EAN 4012196689774
- Product description
-

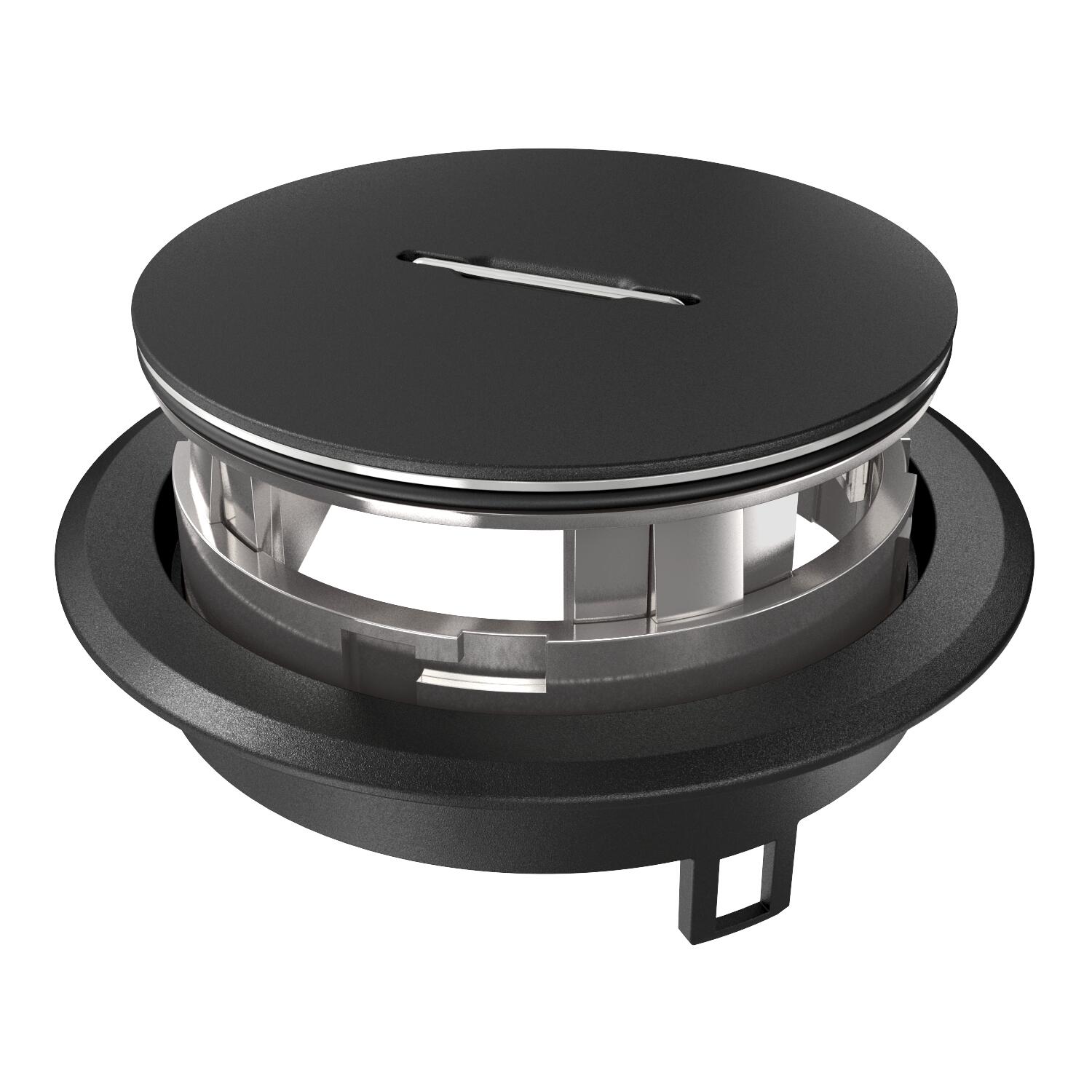

Product descriptionService outlet with tube body and handle clamp for GES R2 floor socket for direct installation in the MT R2 installation socket for indoor use.
The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
-
- Technical data
-
Technical data

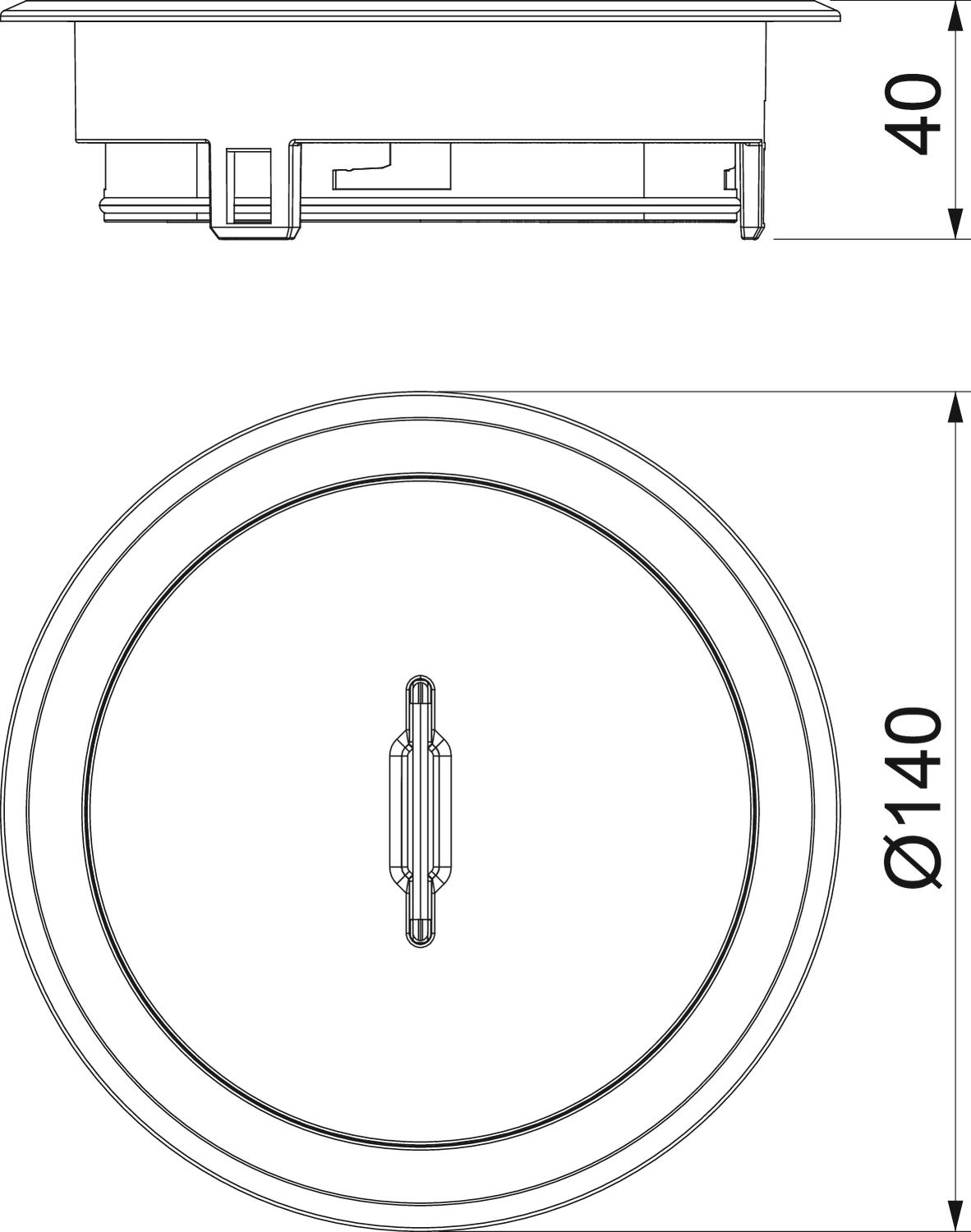

Approvals VDE Cable outlet version Lowerable tube body Colour Jet black; RAL 9005 Dimension 140 mm External diameter 140 mm Floor care Wet Floor covering protection frame yes Material Die-cast zinc Opening mechanism Handle Protection rating (IP) when unused IP66 Protection rating (IP) when used IP20 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for underfloor ducts no Suitable for wet care yes Surface Powder-coated Version for Round Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N With floor covering recess no - All types
-
System accessories
Products Types Item no. Quantity SSU
Mounting plate for data technology, type C
MP R2 2C 7408806 25 piece
Installation socket, double, VDE
MT R2 VDE 7408832 1 piece
Screed box for GES R2
UD GES R2 7428526 1 piece - Downloads
-
Data sheet GES R2T KP / 7408857 , 0.28MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfEU declaration of conformity GES R2T KP / 7408857 , 0.10MB , pdfUK Declaration of Conformity GES R2T KP / 7408857 , 0.14MB , pdfREACH Declaration of conformity GES R2T KP / 7408857 , 0.12MB , pdfRoHS Declaration of conformity GES R2T KP / 7408857 , 0.13MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Bodensteckdose GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.05MB , pdf
