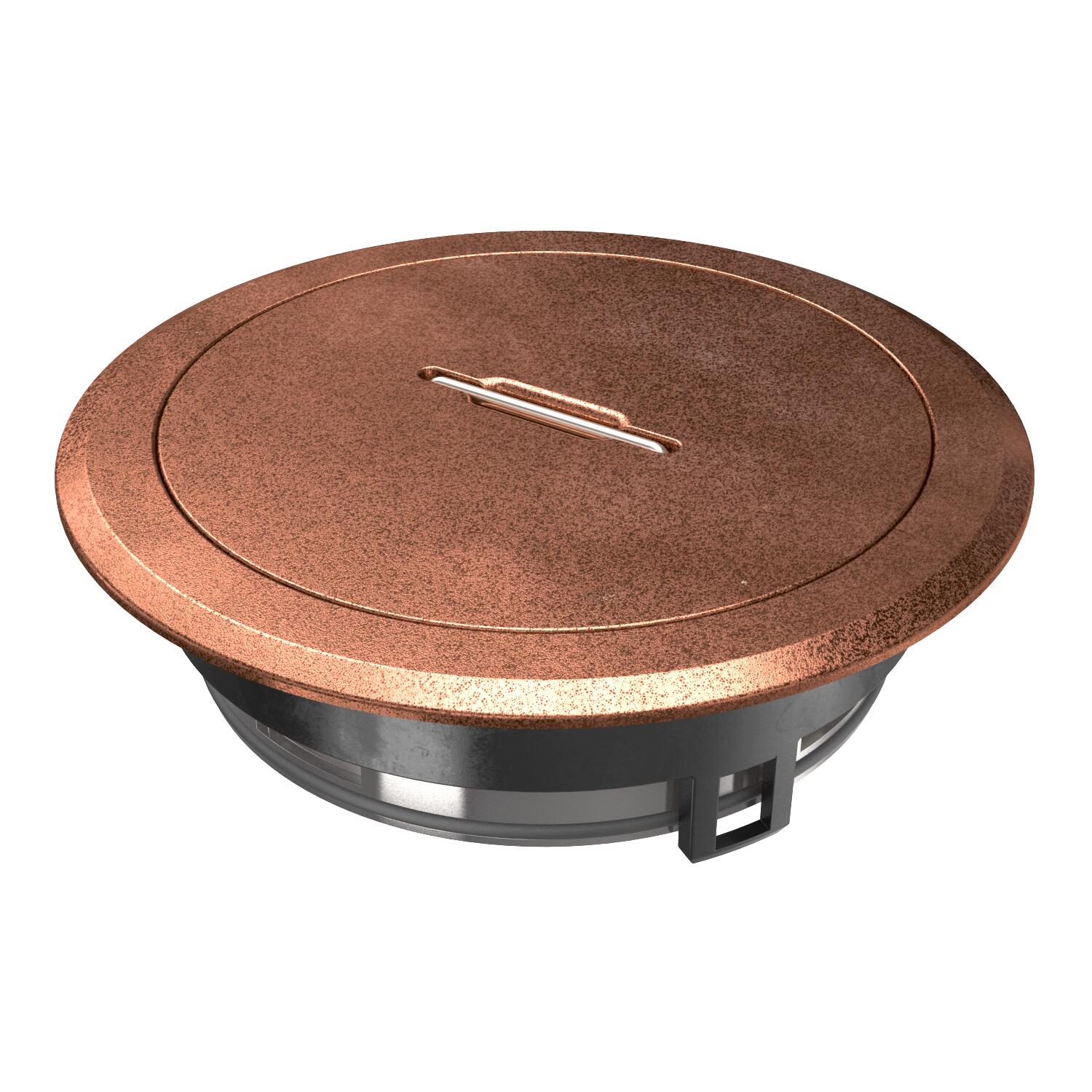

Service outlet with tube body with handle clamp, GES R2, old copper

Item no. 7408864 | EAN 4012196459063

Die-cast zinc
Product description
Product description
Service outlet with tube body and handle clamp for GES R2 floor socket for direct installation in the MT R2 installation socket for indoor use.

The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • IK Code 10
Technical data

Technical data

Approvals VDE

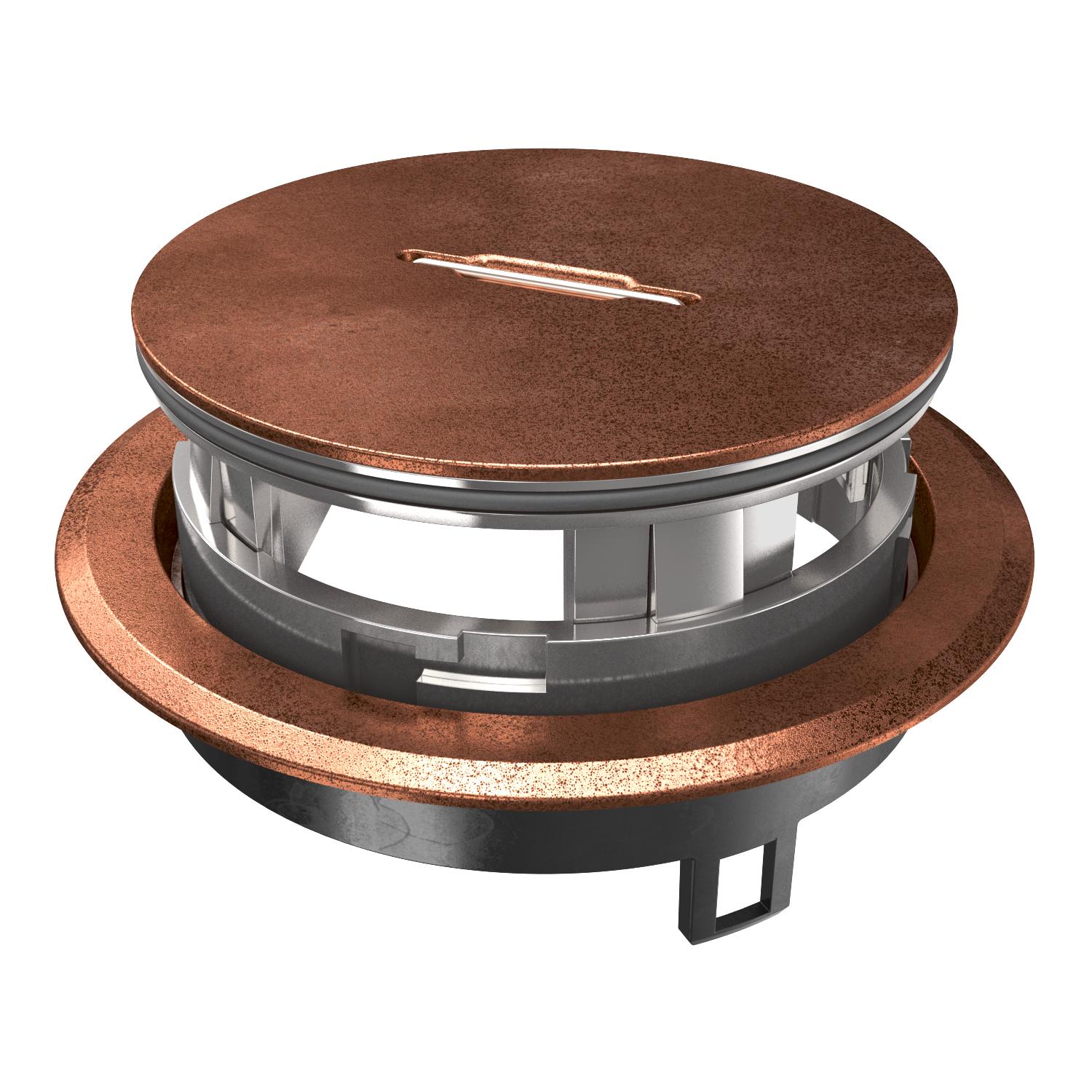

Cable outlet version Lowerable tube body

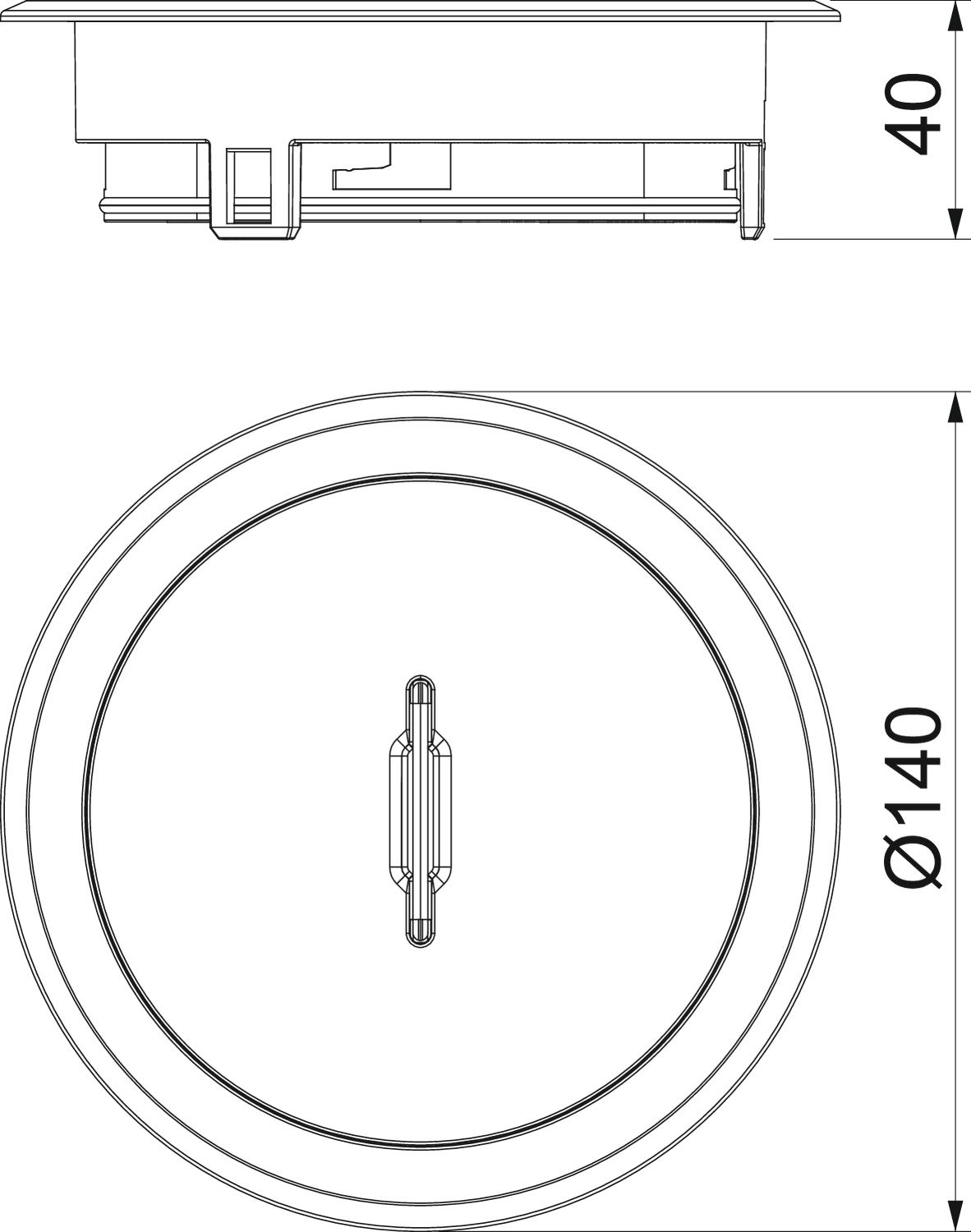

External diameter 140 mm
Floor care Wet
Floor covering protection frame yes
Material Die-cast zinc
Opening mechanism Handle
Protection rating (IP) when unused IP66
Protection rating (IP) when used IP20
Protection rating IK code IK10
Standard EN 50085-2-2
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for underfloor ducts no
Suitable for wet care yes
Surface Copper-plated
Version for Round
Vertical load, large area to 15,000 N
Vertical load, small area to 3,000 N
With floor covering recess no
All types

All types

Types Material Item no. Quantity SSU
GES R2T KP Die-cast zinc 7408857
1 piece
GES R2T Ni-O Die-cast zinc 7408859
1 piece
GES R2T Ni Die-cast zinc 7408860
1 piece
GES R2T CuZn Die-cast zinc 7408862
1 piece
GES R2T Cu Die-cast zinc 7408864
1 piece
GES R2T Cr Die-cast zinc 7408866
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Mounting plate for data technology, type C Mounting plate for data technology, type C MP R2 2C 7408806
25 piece
Installation socket, double, VDE Installation socket, double, VDE MT R2 VDE 7408832
1 piece
Screed box for GES R2 Screed box for GES R2 UD GES R2 7428526
1 piece
