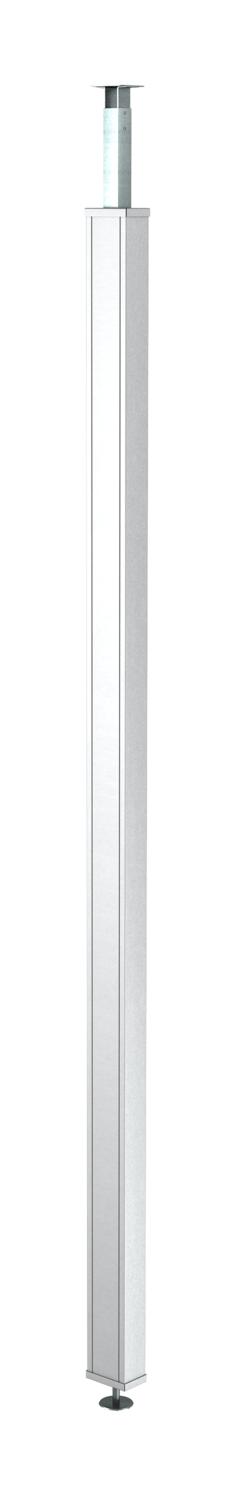

Service pole, sheet steel, with PVC cover
Item no. 6286540 | EAN 4012195809142
- Product description
-
Product description
Sheet steel service pole with a 76.5 mm system opening.
Set consisting of:
1 single-compartment pole with clamping fastening
Total length 2,625–3,665 mm
1 ceiling fastening with telescopic profile
1 PVC cover
Length: 2,500 mm
A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.
The service pole is suitable for accepting accessory mounting boxes of the
series 71GD...
The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.
-
- Technical data
-
Technical data

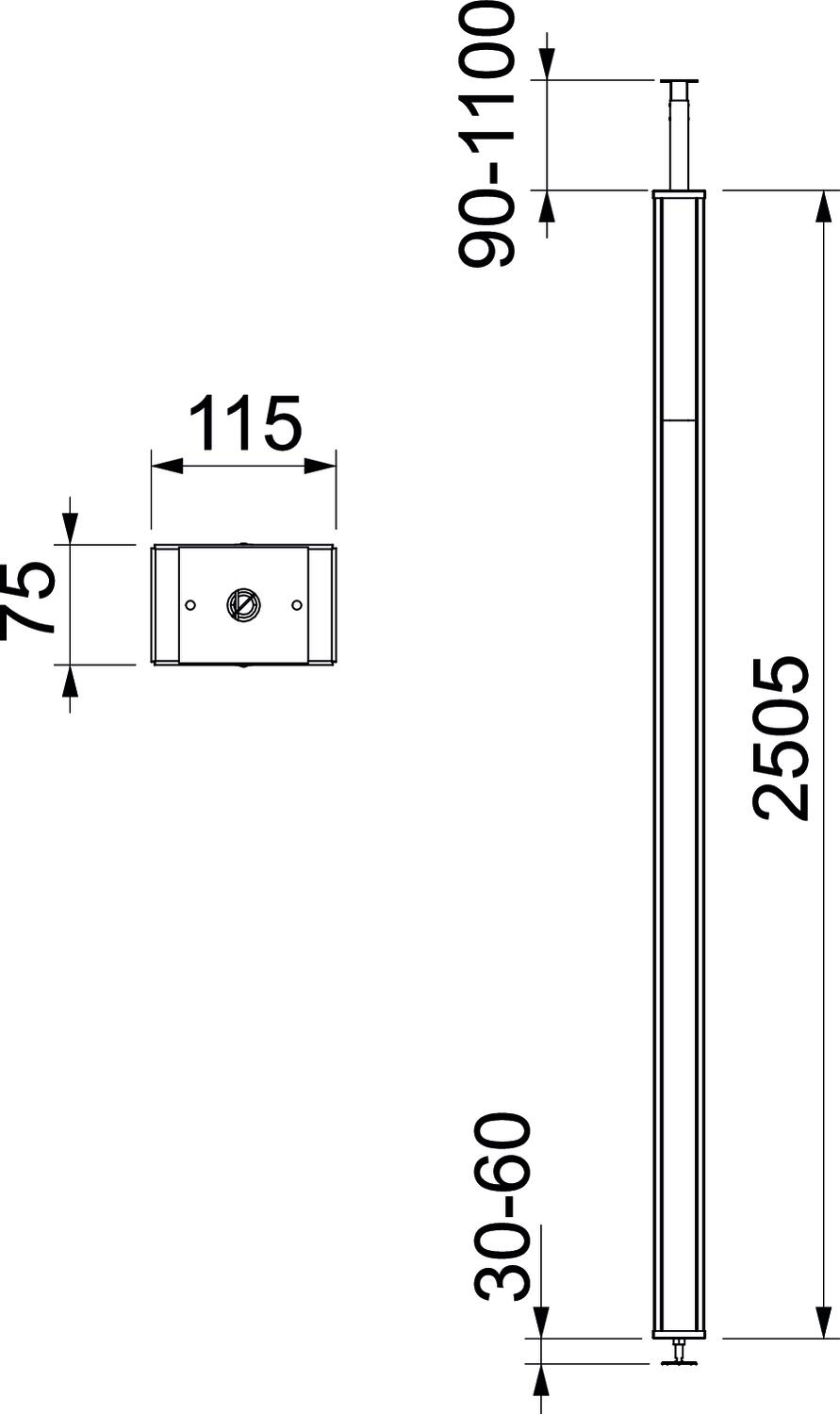

Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location no Colour Pure white; RAL 9010 Continuous profile yes Cover width 76,5 mm Dimension 2505x115x75 Fastening type Telescope Floor mounting no Halogen-free no Height compensation, max. 1100 mm Height compensation, min. 90 mm Material Steel Number of compartments 1 St. Number of usable covers 1 Pole shape Rectangular Pre-wired no Version for Single-sided Dimensions
Height 75 mm Length 2505 mm Pole height, max. 3700 mm Pole height, min. 2600 mm Width 115 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Cover screen
ISS98B 6286800 1 piece
Clamp fastening
ISS98KF 6286802 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
