Service pole, type ISS110100F
Item no. 6289040 | EAN 4012195477013
- Product description
-
Product description

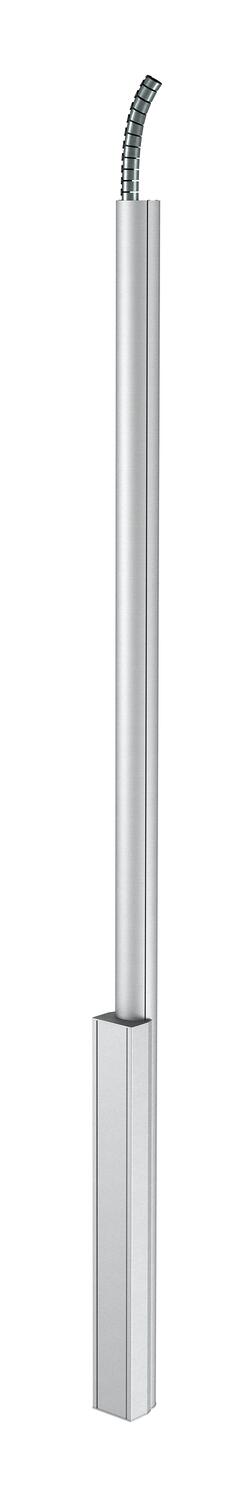

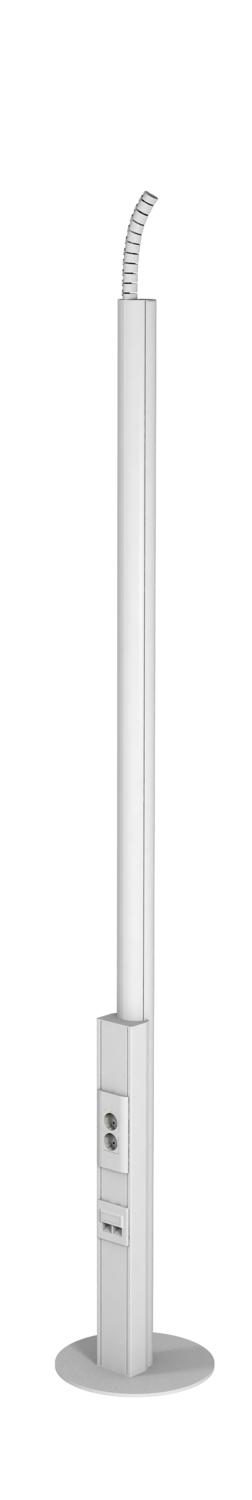

ISS aluminium service pole with a flexible hose to the ceiling.
Set consists of:
1 single-compartment pole with flexible hose to the ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 equippable aluminium installation compartment
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD... The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see items below).
-
- Technical data
-
Technical data
Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location yes Colour Pure white; RAL 9010 Continuous profile no Cover width 76,5 mm Dimension 2300x100x110 Fastening type Stand Floor mounting yes Halogen-free yes Height compensation, max. 1500 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole shape Installation space, angular/pole, round Pre-wired no Version for Single-sided Dimensions

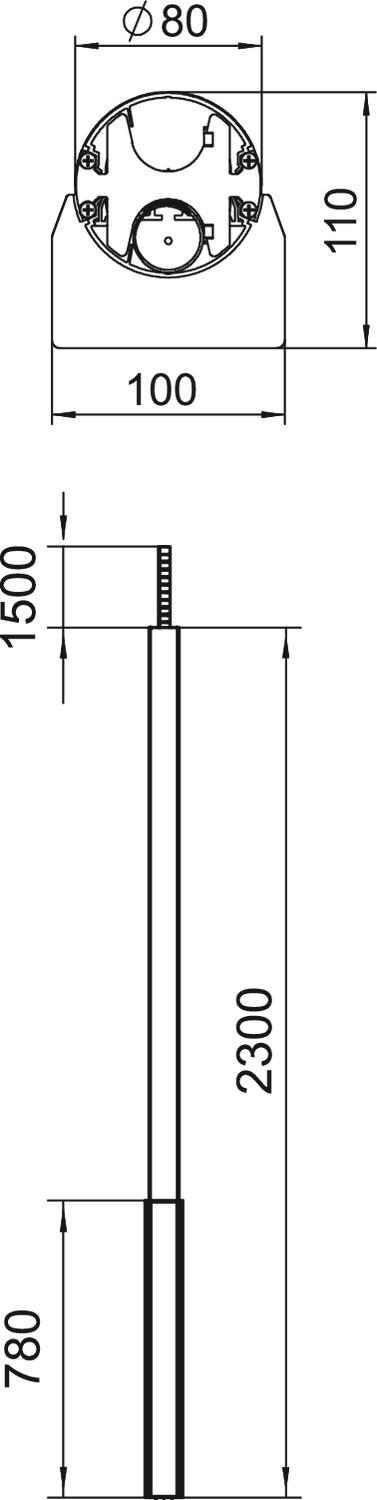

Dimension A 780 mm Dimension B 2300 mm Dimension C 1500 mm Height 110 mm Length 2300 mm Pole height, max. 3800 mm Pole height, min. 2300 mm Width 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

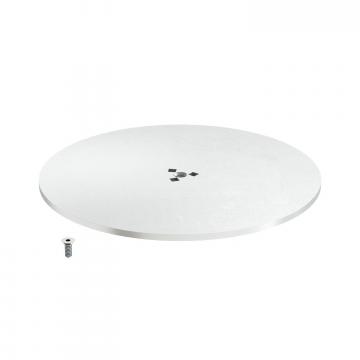

Stand
SFISSFRW 6290196 1 piece

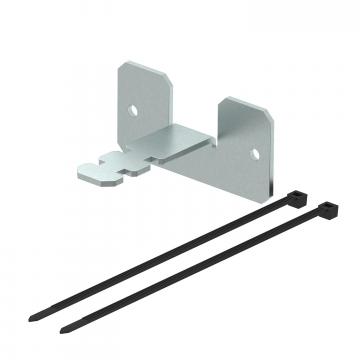

Hose connection
SAISSF 6290198 1 piece

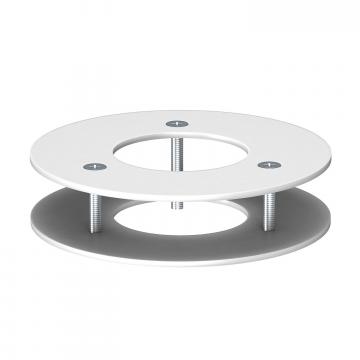

Ceiling panel
DAB-F RW 6290269 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
