Service pole, type ISS110100R
Item no. 6289060 | EAN 4012195477037
- Product description
-
Product description

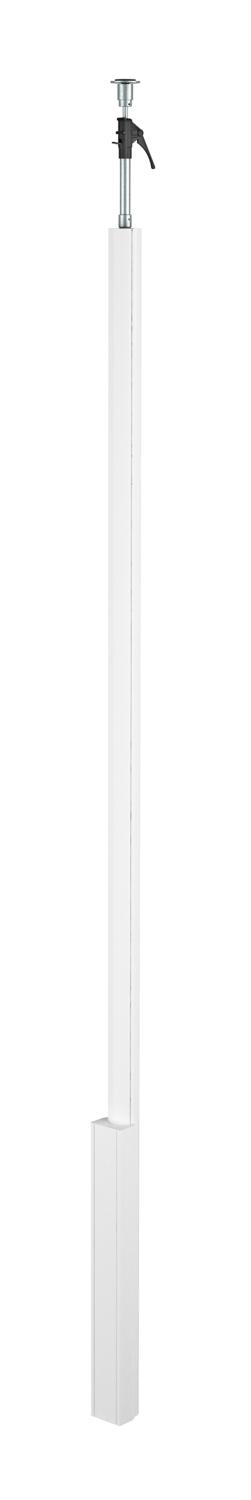

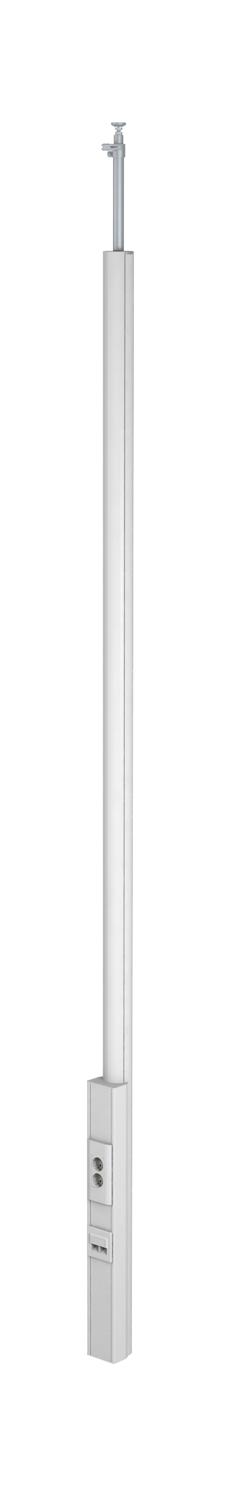

ISS aluminium service pole with a thin tube to the ceiling.
Set consists of:
1 single-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 clamping device for clamping to the ceiling
1 equippable aluminium installation area
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
-
- Technical data
-
Technical data

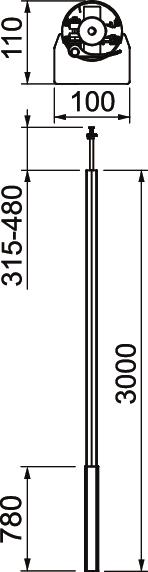

Adjustable yes Cable entry Top/bottom Ceiling mounting yes Changes according to location no Colour Pure white; RAL 9010 Continuous profile no Cover width 76,5 mm Dimension 3000x100x110 Fastening type Tension Floor mounting yes Halogen-free yes Height 110 mm Height compensation, max. 480 mm Height compensation, min. 315 mm Length 3000 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3480 mm Pole height, min. 3315 mm Pole shape Installation space, angular/pole, round Pre-wired no Version for Single-sided Width 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

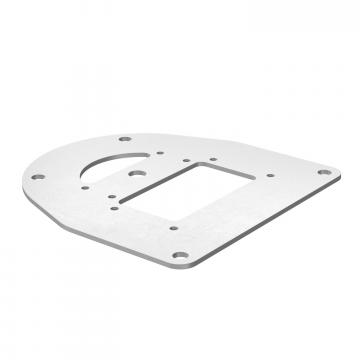

Floor plate for ISS110100R
ISSBP110100RW 6290330 1 piece

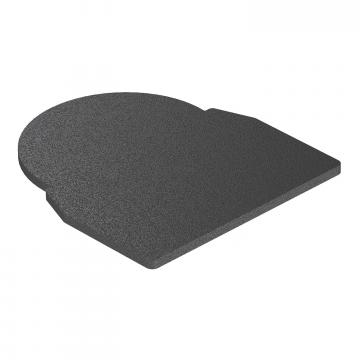

Rubber support for ISS110100R
ISSGU110100 6290358 1 piece

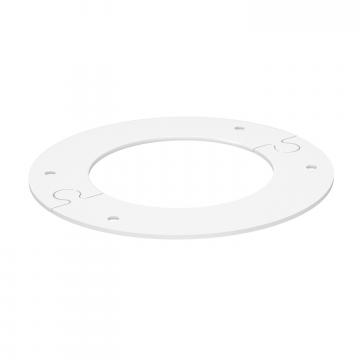

Ceiling panel
WAG140100RRW 6290290 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
