Service pole, type ISS130130 3000 | Tension | Aluminium | Pure white; RAL 9010 |

Service pole, type ISS130130

Item no. 6289407 | EAN 4012196770489

Item no. / Types

Length	3000 mm

Fastening type	Tension

Material	Aluminium

Colour

Surface

Product description

Product description

Aluminium floor-ceiling service pole (surface anodised or powder-coated in RAL 9010) with two 76.5 system openings to accept device installation sockets of the 71GD series.

Technical data

Technical data

Adjustable	yes
Cable entry	Top/bottom
Ceiling mounting	yes
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	76,5 mm

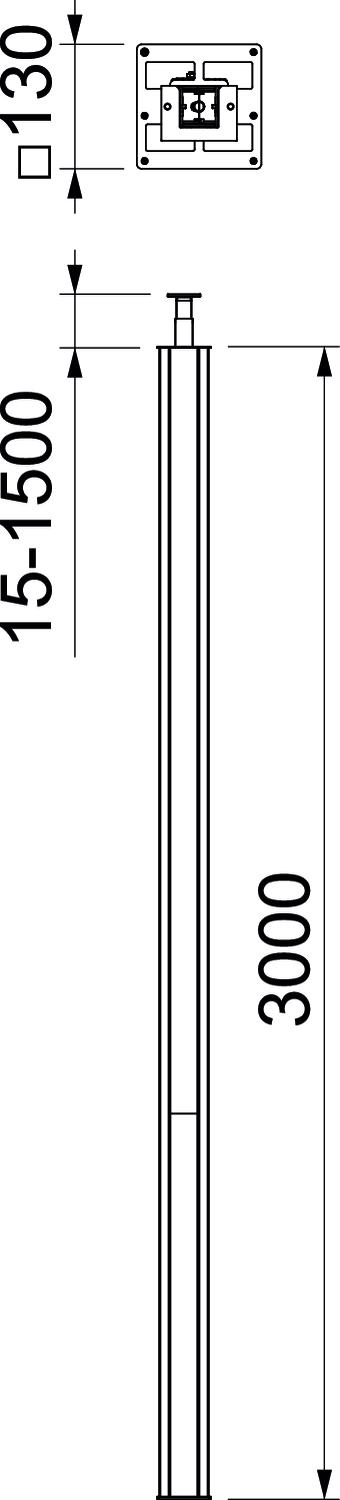

Dimension	3000x130x130
Fastening type	Tension
Floor mounting	yes
Halogen-free	yes
Height	130 mm

Height compensation, max.	1500 mm
Height compensation, min.	15 mm
Length	3000 mm
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole height, max.	4500 mm
Pole height, min.	3015 mm
Pole shape	Square
Pre-wired	no
Version for	Double-sided
Width	130 mm

All types

All types

Types	Length	Fastening type	Material	Colour	Surface	Item no.	Quantity	SSU
ISS130130EL	3000 mm	Tension	Aluminium	-	Anodised	6289405	piece	1 piece
ISS130130RW	3000 mm	Tension	Aluminium	Pure white; RAL 9010	-	6289407	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece

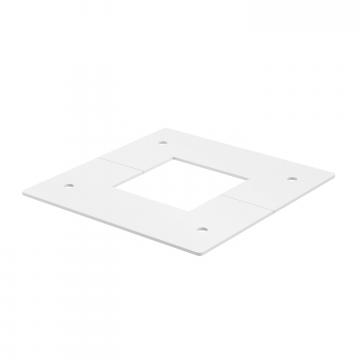

Ceiling panel for telescope	DBT130130RW	6286820	piece	1 piece

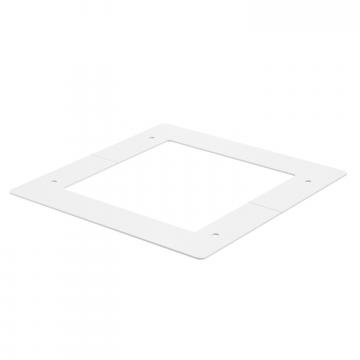

Ceiling panel for pole profile	DBP130130RW	6286825	piece	1 piece
Partition	TW130130	6286835	m	1 m
Rubber support	ISSGU130130	6286839	piece	1 piece
