Service pole, type ISS140100R 3000 | Tension | Aluminium | Pure white; RAL 9010 |

Service pole, type ISS140100R

Item no. 6289070 | EAN 4012195477433

Item no. / Types

Length	3000 mm

Fastening type	Tension

Material	Aluminium

Colour

Surface

Product description

Product description

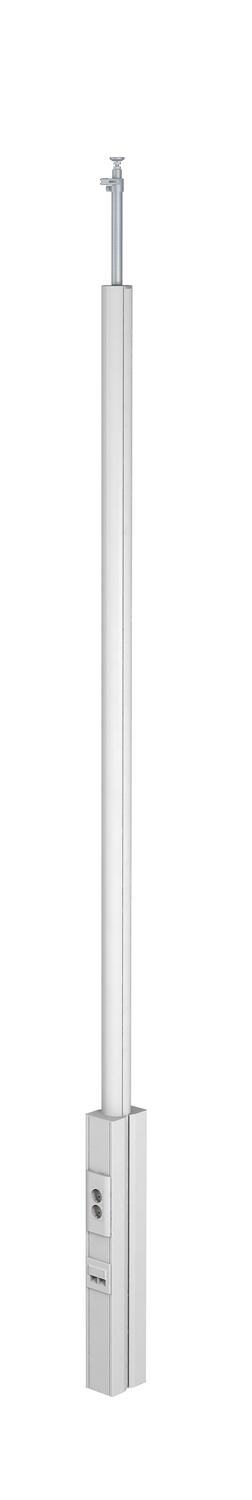

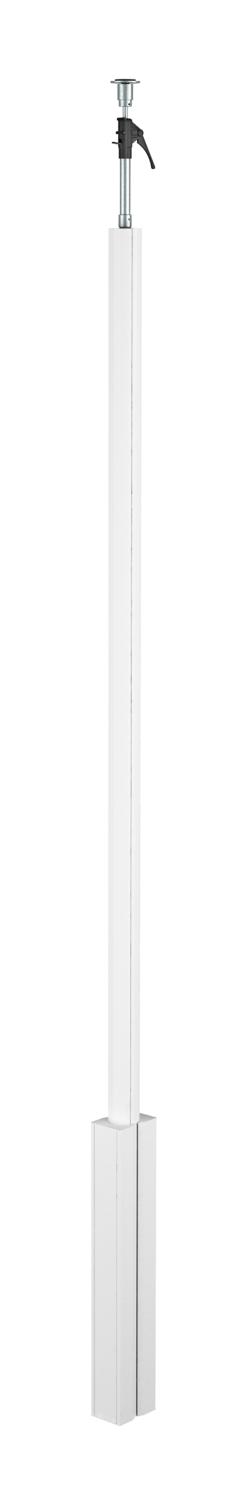

ISS aluminium service pole with a thin tube to the ceiling.

Set consists of:
1 two-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 ceiling fastening with clamping device
2 aluminium covers
Length: 780 mm
The service pole has a 76.5 mm system opening in the area for device installation and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...

Technical data

Technical data

Adjustable	yes
Cable entry	Top/bottom
Ceiling mounting	yes
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	no
Cover width	76,5 mm

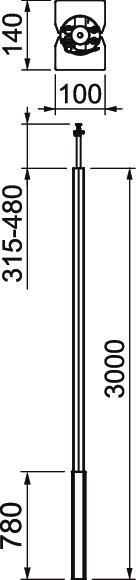

Dimension	3000x100x140
Fastening type	Tension
Floor mounting	yes
Halogen-free	yes
Height	140 mm

Height compensation, max.	480 mm
Height compensation, min.	315 mm
Length	3000 mm
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole height, max.	3480 mm
Pole height, min.	3315 mm
Pole shape	Installation space, angular/pole, round
Pre-wired	no
Version for	Double-sided
Width	100 mm

All types

All types

Types	Length	Fastening type	Material	Colour	Surface	Item no.	Quantity	SSU
ISS140100RRW	3000 mm	Tension	Aluminium	Pure white; RAL 9010	-	6289070	piece	1 piece
ISS140100REL	3000 mm	Tension	Aluminium	-	Anodised	6289073	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

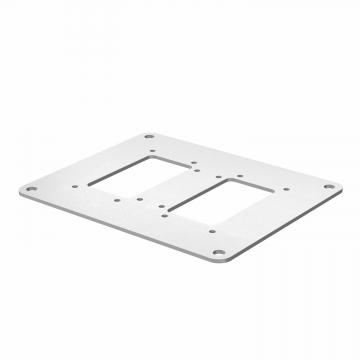

Floor plate for ISS140100R	ISSBP140100RW	6290336	piece	1 piece

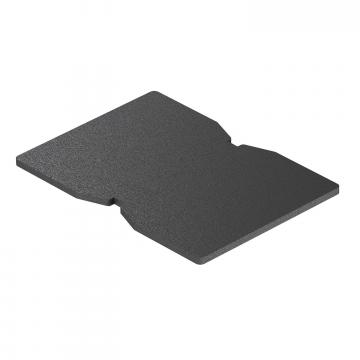

Rubber support for ISS140100R	ISSGU140100	6290362	piece	1 piece
Ceiling panel	WAG140100RRW	6290290	piece	1 piece
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
