Service pole, type ISS140110 3000 | Tension | Aluminium | Pure white; RAL 9010 |

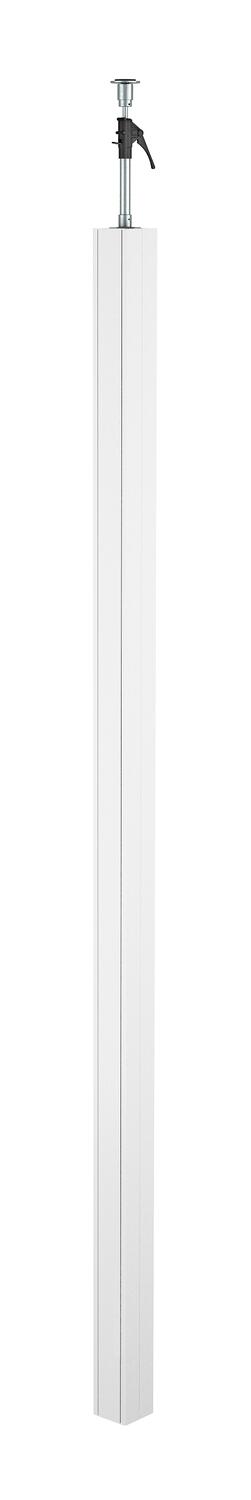

Service pole, type ISS140110

Item no. 6288960 | EAN 4012195160861

Item no. / Types

Length	3000 mm

Fastening type	Tension

Material	Aluminium

Colour

Surface

Product description

Product description

ISS aluminium service pole with a 76.5 mm system opening.

Set consists of:

1 two-compartment pole with clamping fastening

Total length 3,315‒3,480 mm

1 ceiling fastening with clamping device

2 aluminium covers

Length: 3,000 mm

The service pole is suitable for accepting front-locking accessory mounting boxes

of the series 71GD... The installation of a partition of type GA-TW70 (6279711) and the installation of the cover clip, type KL80A (6288640), are possible as an option.

The following accessories can be used, depending on the mounting situation.

Technical data

Technical data

Adjustable	yes
Cable entry	Top/bottom
Ceiling mounting	yes
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	76,5 mm

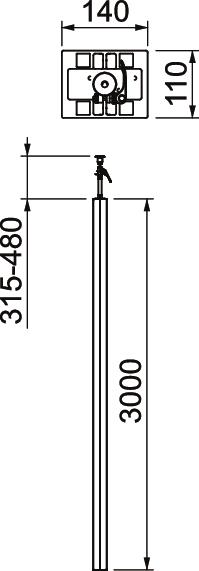

Dimension	3000x110x140
Fastening type	Tension
Floor mounting	yes
Halogen-free	yes
Height	140 mm

Height compensation, max.	480 mm
Height compensation, min.	315 mm
Length	3000 mm
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole height, max.	3480 mm
Pole height, min.	3315 mm
Pole shape	Rectangular
Pre-wired	no
Version for	Double-sided
Width	110 mm

All types

All types

Types	Length	Fastening type	Material	Colour	Surface	Item no.	Quantity	SSU
ISS140110RW	3000 mm	Tension	Aluminium	Pure white; RAL 9010	-	6288960	piece	1 piece
ISS140110EL	3000 mm	Tension	Aluminium	-	Anodised	6288963	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

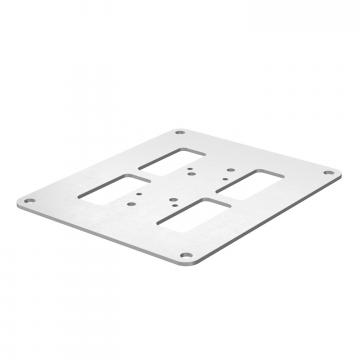

Floor plate for ISS140110	ISSBP140110RW	6290130	piece	1 piece

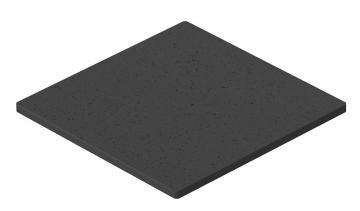

Rubber support for ISS140110	ISSGU140110	6290176	piece	1 piece

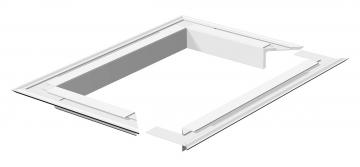

Ceiling panel for ISS140110	WAG140110RW	6290240	piece	1 piece
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
