Service pole, type ISSDM45F
Item no. 6289974 | EAN 4012195773887
- Product description
-
Product description

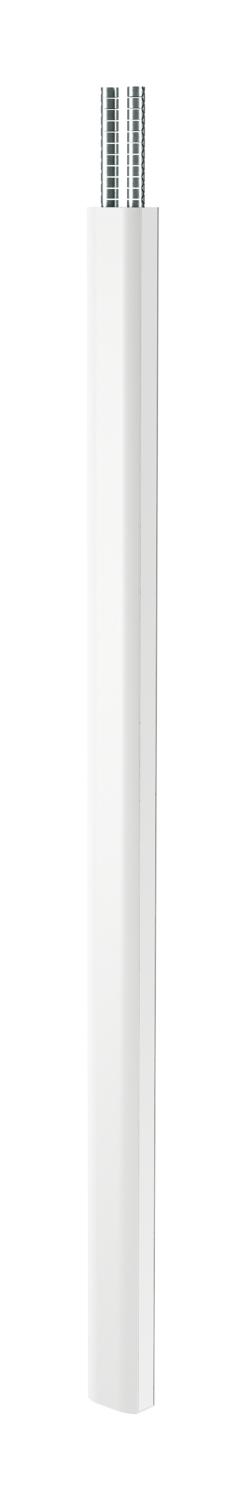

ISS aluminium service pole with a 45 mm system opening.
Set consists of:
1 two-compartment pole with 2 flexible hoses to the ceiling
Total length of the aluminium profile: 2,300 mm
2 aluminium covers, length: 2,300 mm

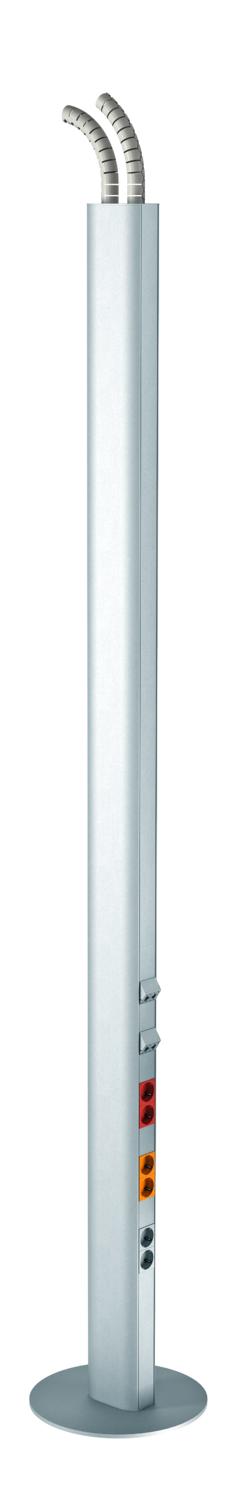

The colours are either pure white or anodised. There are two 45 mm system openings on opposite sides for direct installation of Module 45® devices. The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
-
- Technical data
-
Technical data

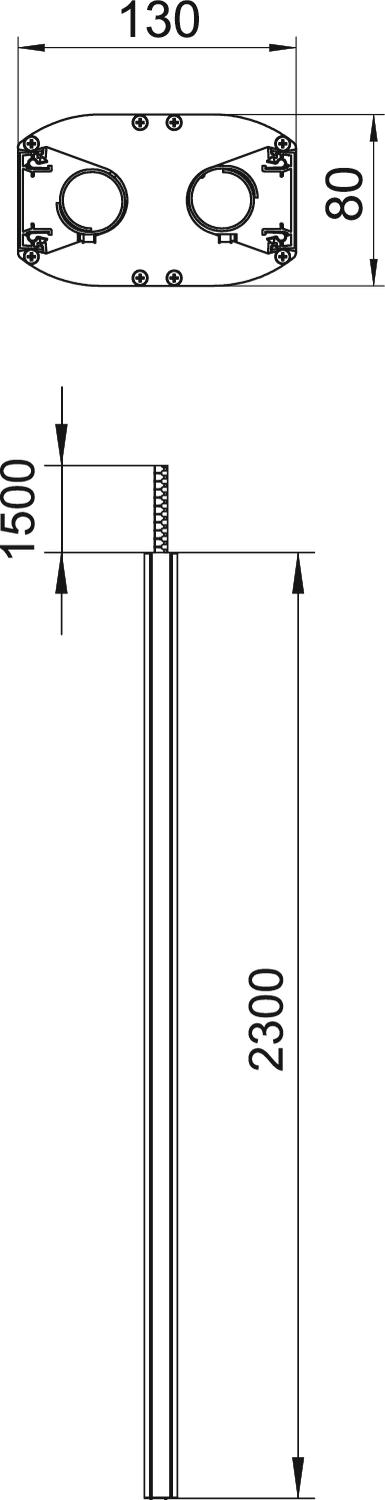

Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location yes Colour Pure white; RAL 9010 Continuous profile yes Cover width 45 mm Dimension 2300x80x130 Fastening type Stand Floor mounting yes Halogen-free yes Height 130 mm Height compensation, max. 1500 mm Length 2300 mm Material Aluminium Number of compartments 2 St. Number of usable covers 2 Pole height, max. 3800 mm Pole height, min. 2300 mm Pole shape Oval Pre-wired no Version for Double-sided Width 80 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Stand
SFISSFRW 6290196 1 piece
Hose connection
SAISSF 6290198 1 piece
Ceiling panel ISSDM45F
DAB-2F 6290382 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Partition for WDK trunking, trunking height 40 mm
2371 40 6023096 60 m - Downloads
-
Data sheet ISSDM45FRW / 6289974 , 0.24MB , pdfBrochure Service poles, office , 2.77MB , pdfDeclaration of conformity ISSDM45FRW / 6289974 , 0.13MB , pdfUK Declaration of Conformity ISSDM45FRW / 6289974 , 0.14MB , pdfMounting instructions Mounting instructions, ISSRM45F , 0.29MB , pdfNo invitation to tender text is available for this product.
