Service pole, type ISSRM45F
Item no. 6290095 | EAN 4012195459095
- Product description
-
Product description

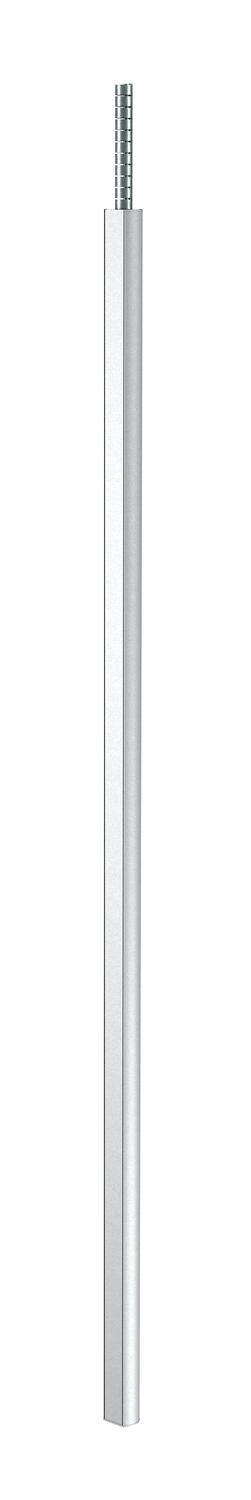

ISS aluminium service pole with a flexible hose to the ceiling and a 45 mm system opening.
Set consisting of:
1 one-compartment pole with flexible hose to ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 aluminium cover
Length: 2,300 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
-
- Technical data
-
Technical data

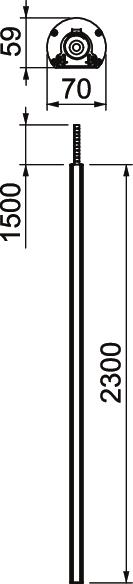

Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location yes Colour Pure white; RAL 9010 Continuous profile yes Cover width 45 mm Dimension 2300x70x59 Fastening type Stand Floor mounting yes Halogen-free yes Height compensation, max. 1500 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole shape Round Pre-wired no Version for Single-sided Dimensions
Height 59 mm Length 2300 mm Pole height, max. 3800 mm Pole height, min. 2300 mm Width 70 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Stand
SFISSFRW 6290196 1 piece
Hose connection
SAISSF 6290198 1 piece
Ceiling panel
DAB-F RW 6290269 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Partition for WDK trunking, trunking height 40 mm
2371 40 6023096 2 m - Downloads
-
Data sheet ISSRM45FRW / 6290095 , 0.27MB , pdfBrochure Service poles, office , 2.77MB , pdfDeclaration of conformity ISSRM45FRW / 6290095 , 0.13MB , pdfUK Declaration of Conformity ISSRM45FRW / 6290095 , 0.14MB , pdfMounting instructions Mounting instructions, ISSRM45F , 0.29MB , pdfNo invitation to tender text is available for this product.
