Set of Quick clips and Quick pipe pipes
Item no. 2154501 | EAN 4012195482895
- Product description
-
Product description

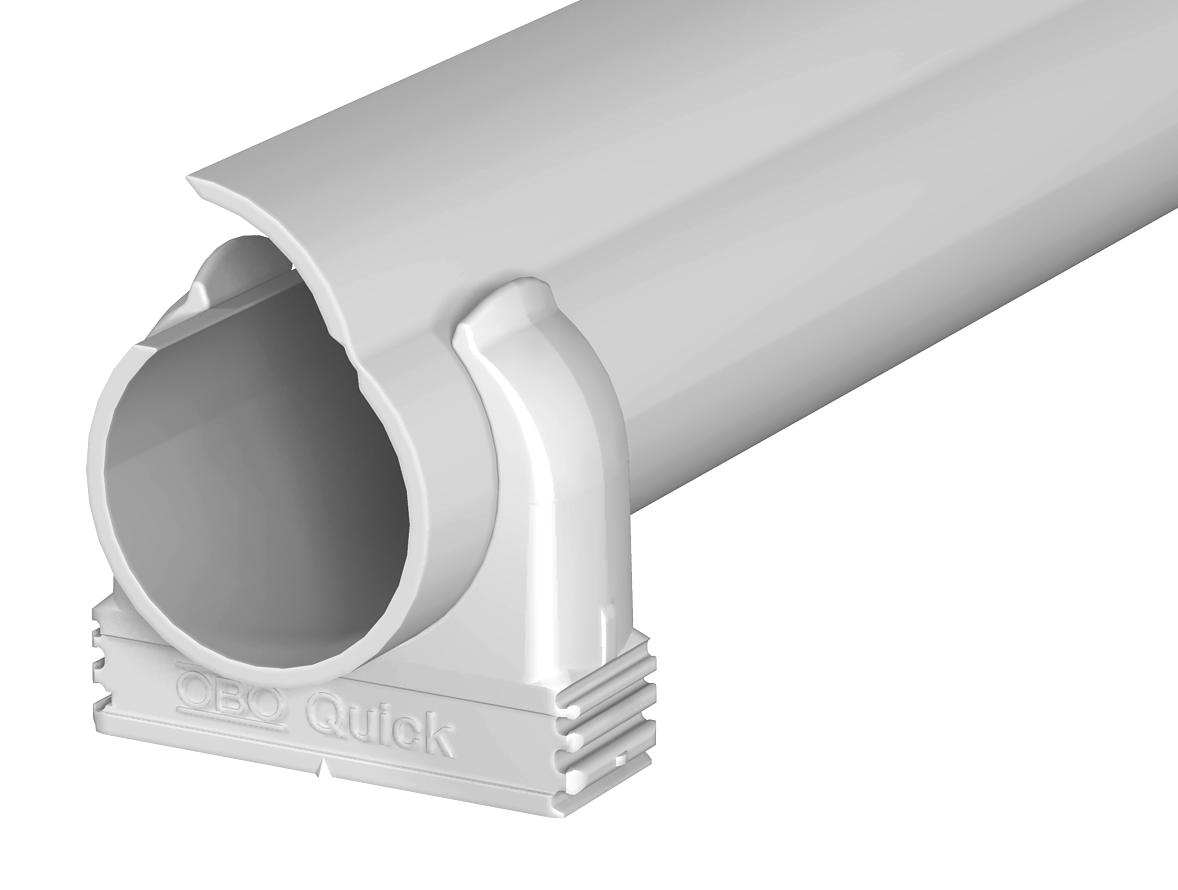

Set consisting of Quick pipe electrical installation pipes and Quick clip surface-mounted clips. For surface-mounted routing of cables in interiors and protected outdoor areas. Universal fastening on wall and ceiling. Comprises 50 m of pipe with each pipe 2 metres in length and 156 Quick clips. Can be used in a temperature range of –25 to + 60 °C.
-
- Technical data
-
Technical data

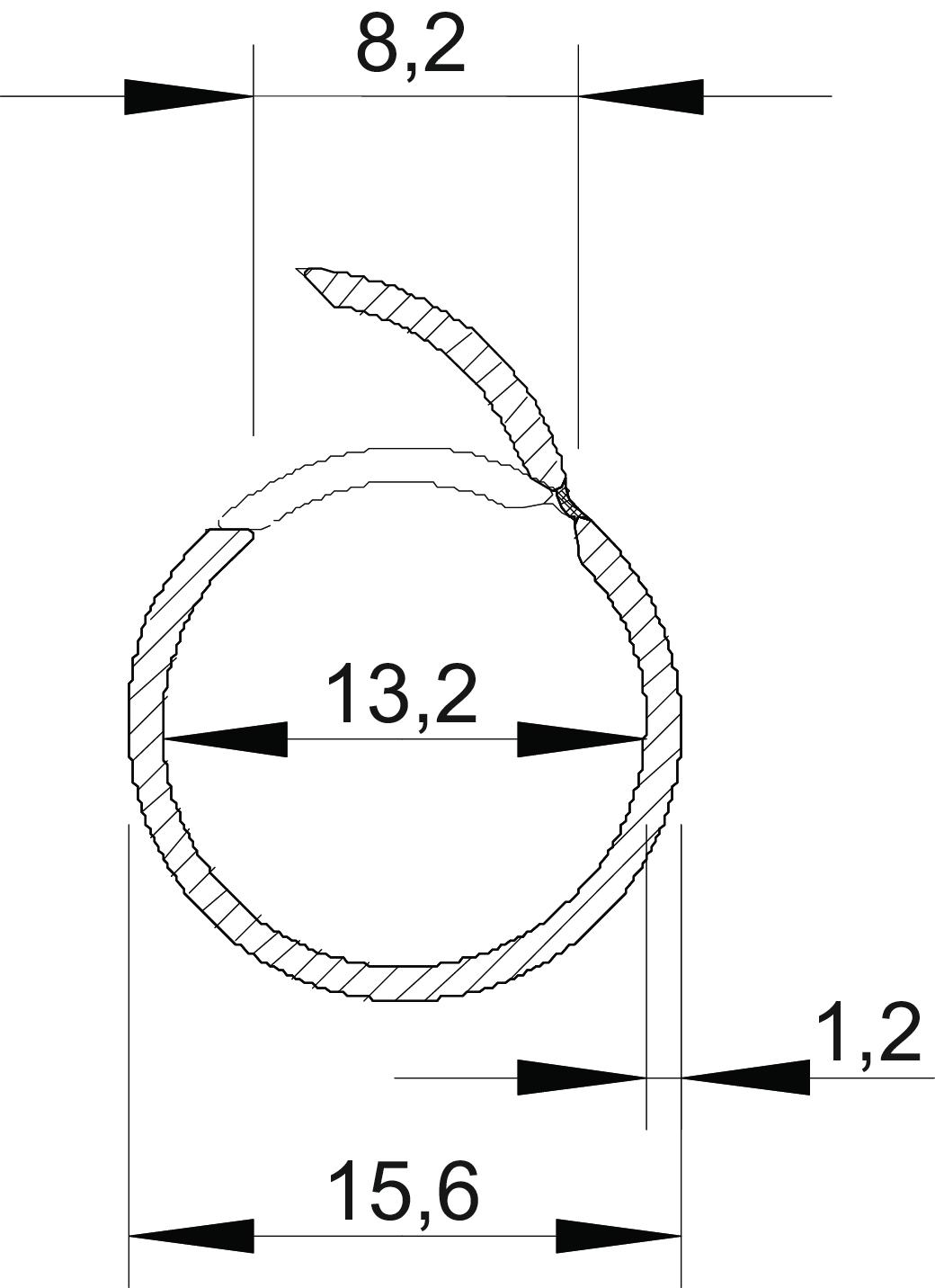

Colour Light grey; RAL 7035 Concealed no Concrete installation yes Dimension M16 Dimension C 8,2 mm Dimension D 15,6 mm Dimension m (mm) 13,2 Dimension t 1,2 mm Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M16 Surface-mounted yes Underfloor installation (screed) no With sleeve no - All types
- Downloads
-
Data sheet 2954 M16 LGR / 2154501 , 0.19MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 2954 M16 LGR / 2154501 , 0.12MB , pdfRoHS Declaration of conformity 2954 M16 LGR / 2154501 , 0.12MB , pdf
