Setting tool for drop-in anchor 168 | M8
morepic-1 morepic-2

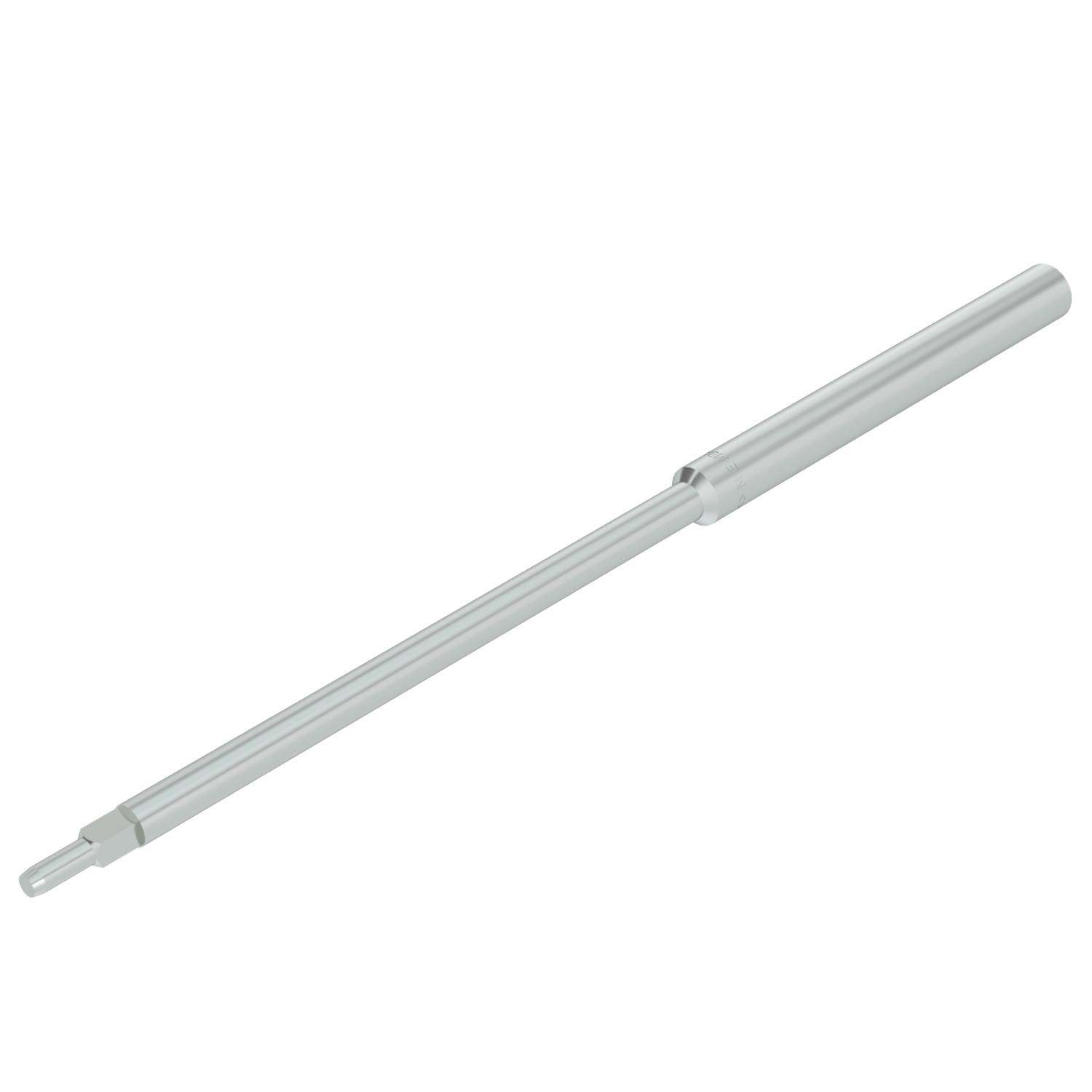

Setting tool for drop-in anchor

Item no. 3492030 | EAN 4012196709717

168 mm
Product description
Product description
Setting tool for drop-in anchor of the type E. With the standard version there is no marking made on the anchor sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
Dimension 8x30
Length 168 mm
Material Steel
Pin dimension 8 mm
Surface Electrogalvanized
Thread M8
With hand protection no
All types

All types

Types Length Thread Item no. Quantity SSU
E-SW 10x30 168 mm M10 3492029
1 piece
E-SW 8x30 168 mm M8 3492030
1 piece
