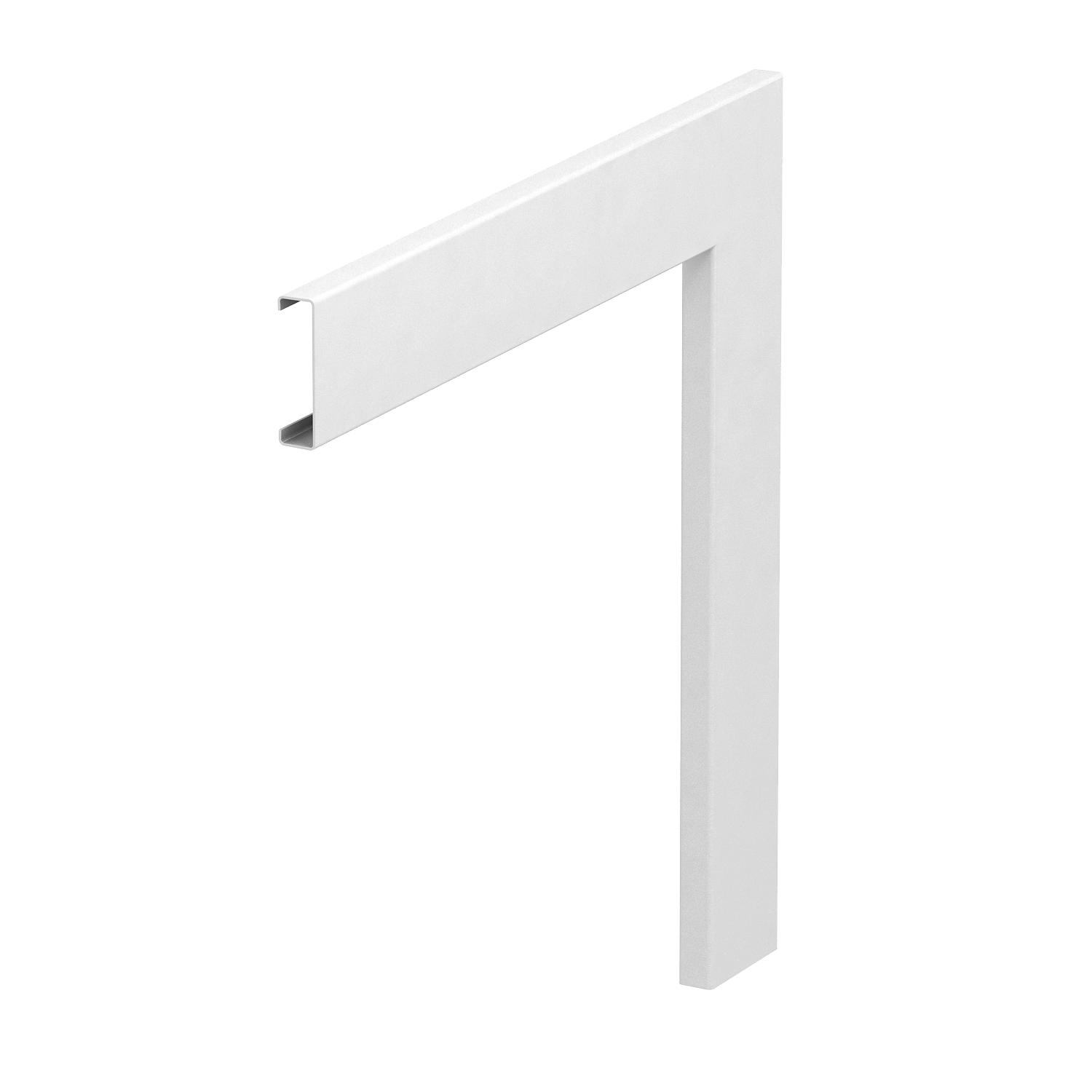

Sheet steel flat angle cover, 50 mm system opening

Item no. 6279990 | EAN 4012195681090

6279990 / GS-OT50FRW
45 mm
Product description
Product description
Sheet steel flat angle cover for 50 mm system opening.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover mounting type Internal

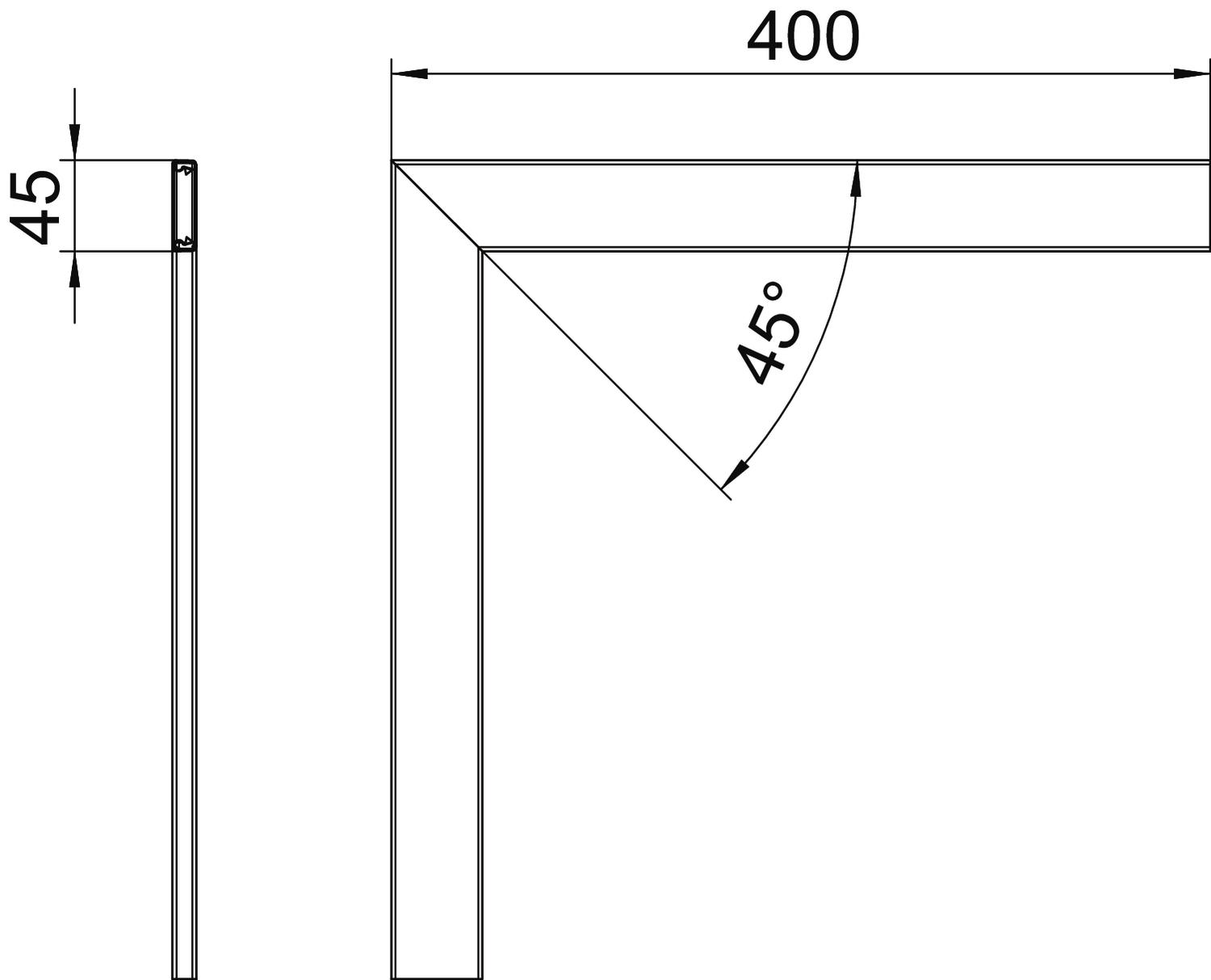

Dimension 12x45x400
Halogen-free yes
Height 12 mm
Length 400 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Version for Smooth
Width 45 mm
All types

All types

Types Width Item no. Quantity SSU
GS-OT50FRW 45 mm 6279990
1 piece
Downloads

Download

Download

EU declaration of conformity GS-OT50FRW / 6279990 , 0.13MB , pdf
Download
UK Declaration of Conformity GS-OT50FRW / 6279990 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
