Sheet steel flat angle cover, rising 76.5
morepic-1 morepic-2 video-1

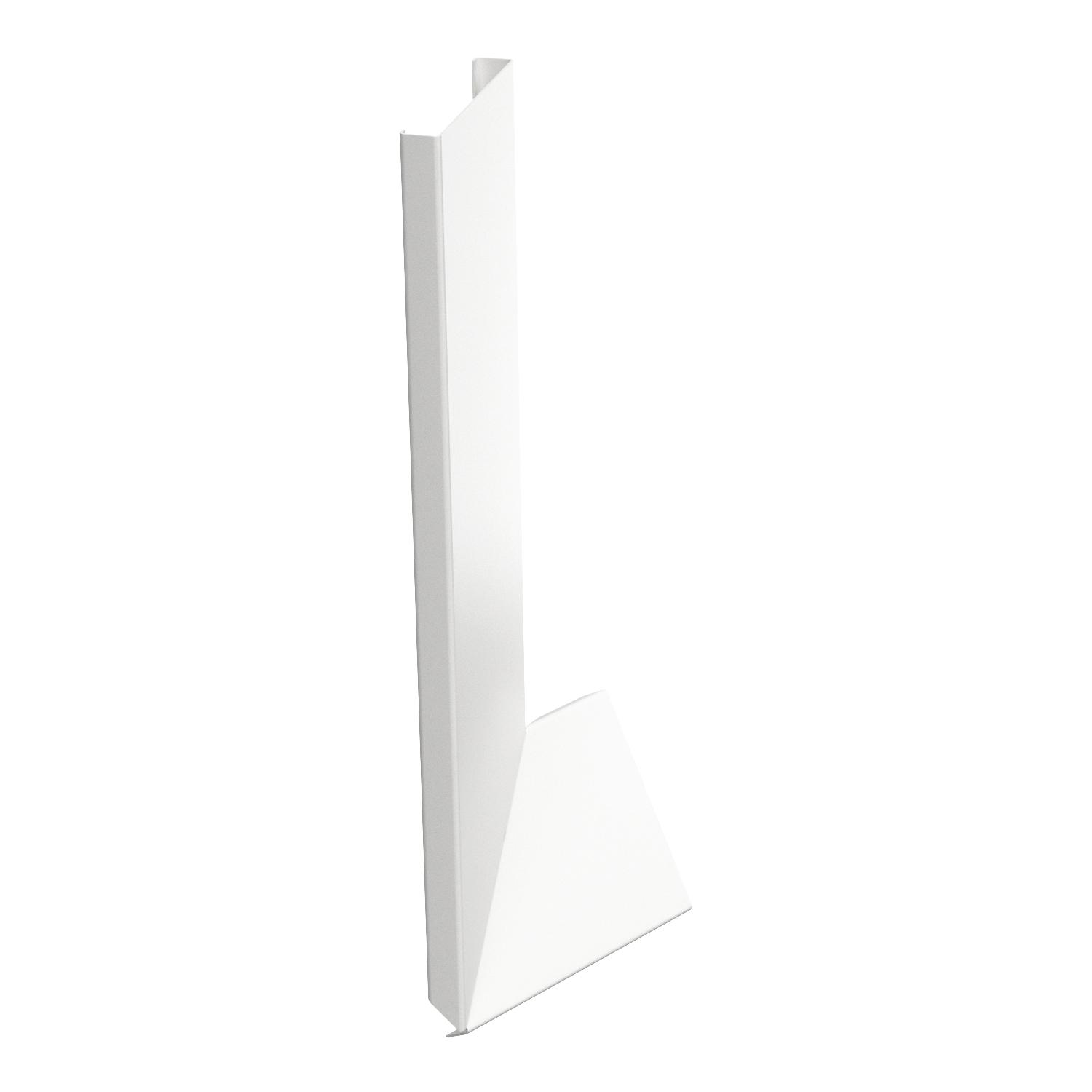

Sheet steel flat angle cover, rising

Item no. 6287060 | EAN 4012195144762

6287060 / FOOP3RW
76.5 mm
Product description
Product description
Cover for closing flat angles.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover mounting type Internal

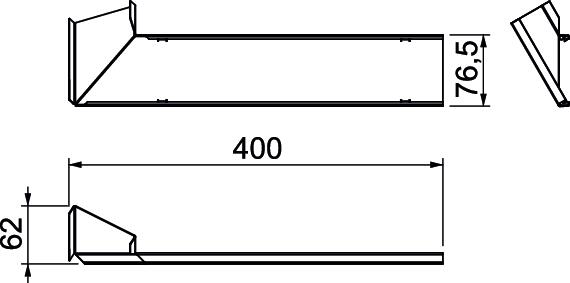

Dimension 12x76,5x400
Halogen-free yes
Height 12 mm
Length 400 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Version for Smooth
Width 76,5 mm
All types

All types

Types Width Item no. Quantity SSU
FOOP3RW 76.5 mm 6287060
1 piece
Downloads

Download

Download

EU declaration of conformity FOOP3RW / 6287060 , 0.13MB , pdf
Download
UK Declaration of Conformity FOOP3RW / 6287060 , 0.14MB , pdf
Download
REACH Declaration of conformity FOOP3RW / 6287060 , 0.12MB , pdf
Download
RoHS Declaration of conformity FOOP3RW / 6287060 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
