Side end panel 85 FS 76

morepic-1

morepic-2

Side end panel 85 FS

Item no. 7083008 | EAN 4012196568802

Item no. / Types	7083008 / SEB 85 FS

Height	76 mm

Product description

Product description

Side end plate for side reinforcement at the ends of the cable tray and as cable protection.

Technical data

Technical data

Dimension	B85mm
Dimension H	76 mm
Height	76 mm
Length	63 mm
Maintain electrical functions	no

Material	Steel
Rustproof steel, pickled	no
Surface	Strip galvanized
Wide-span version	no
Width	12,5 mm

All types

All types

Types	Height	Item no.	Quantity	SSU
SEB 85 FS	76 mm	7083008	piece	20 piece

Downloads

Mounting instructions General information on the mounting , 2.61MB , pdf

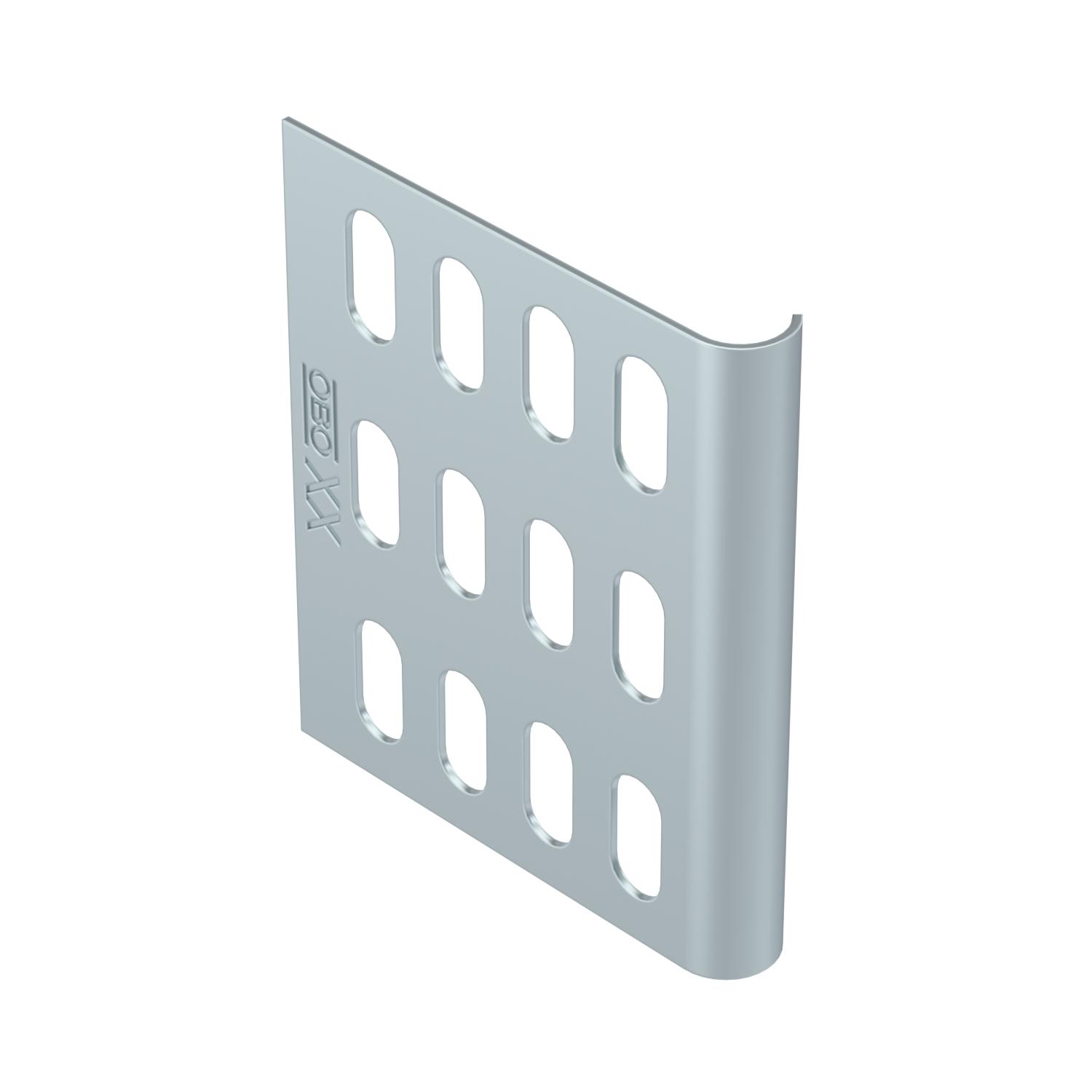

Product graphic SEB 85 FS / 7083008, 42.91 kB, jpg

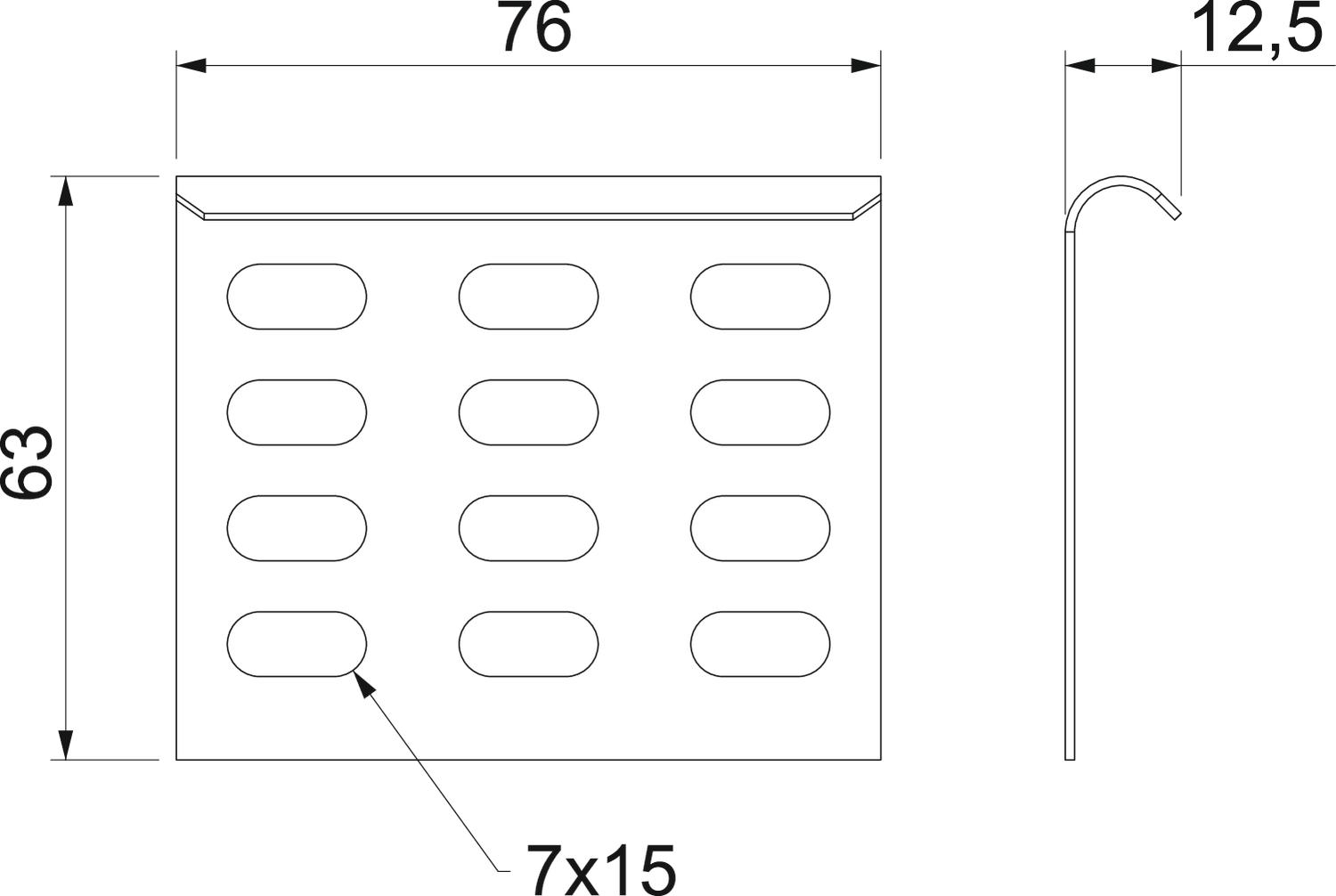

Scale drawing SEB 85 FS / 7083008, 53.14 kB, jpg

SEB 85 FS / 7083008

7083008_KSTP1.stp, 153.54 kB

Seitenendblech- SEB 85 FS_A4.rfa, 400.00 kB
