Side profile for AIKU (spare part) 2400
morepic-1 morepic-2

Side profile for AIKU (spare part)

Item no. 7404806 | EAN 4012195101031

7404806 / AIKF SP
2400 mm
Product description
Product description

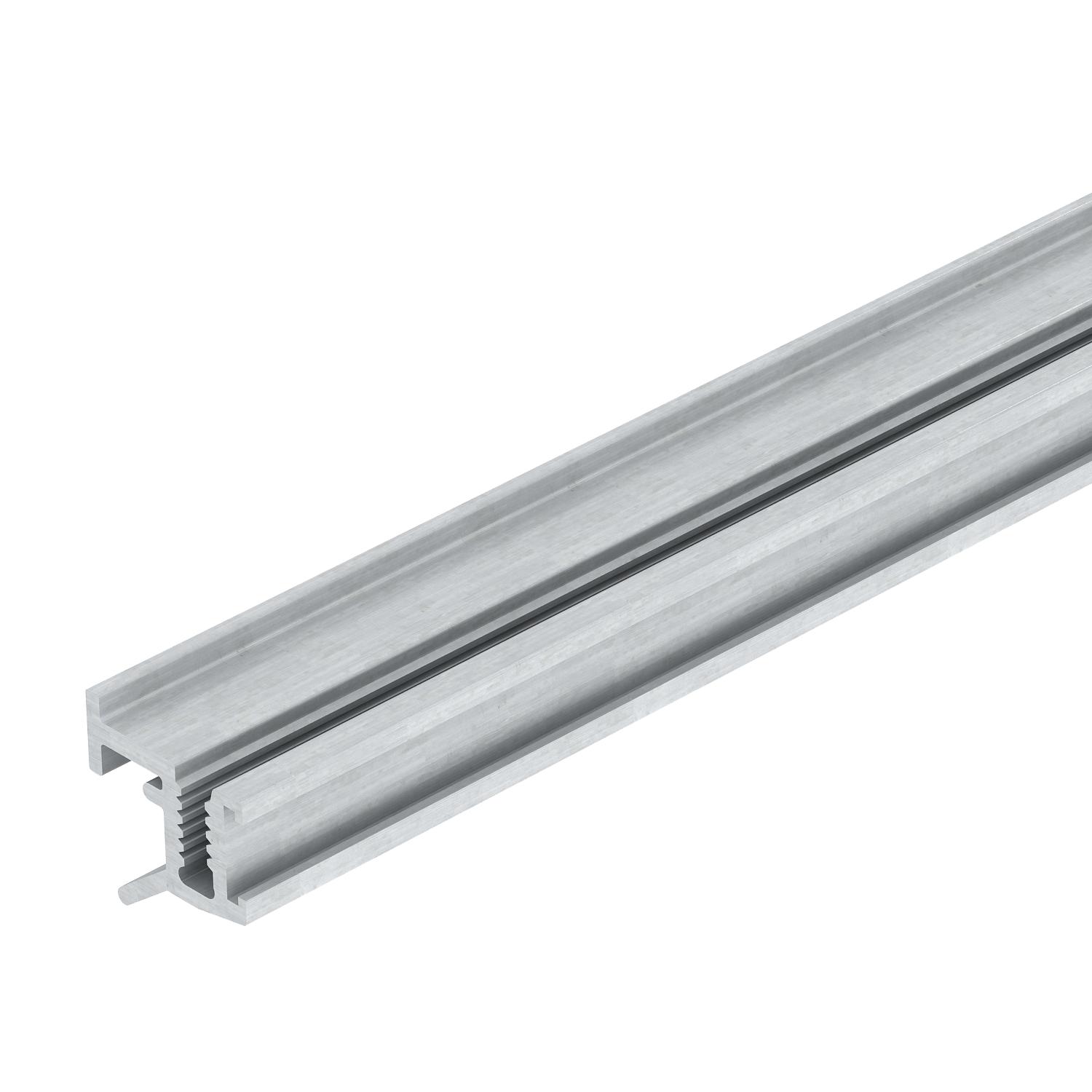

Side profile as cover support with contact edge for the cover (rear profile). For pushing onto AIKU bases, with continuous screw groove for earth conductor clamp. Spare part.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

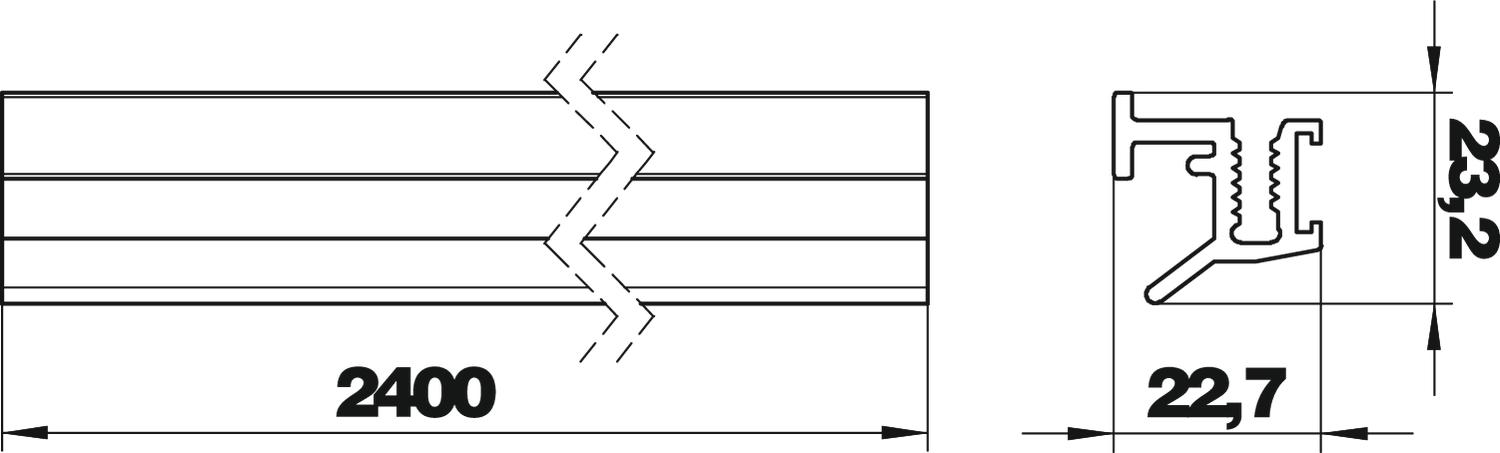

Dimensions

Height 23,2 mm
Length 2400 mm
Material Aluminium
Width 22,7 mm
All types

All types

Types Length Item no. Quantity SSU
AIKF SP 2400 mm 7404806
2,4 m
Downloads

Download

Download

No invitation to tender text is available for this product.
