Siko nail 16 | 2

morepic-1

morepic-2

Siko nail

Item no. 3366162 | EAN 4012195294436

Item no. / Types

Length

Shank diameter	2 mm

Product description

Product description

Hardened steel, blue tempered, with polyethylene safety head.

Technical data

Technical data

Dimension	2x16mm
Dimension d	2 mm
Dimension L	16 mm
Hardened	yes
Head shape	Rounded head
Length	16 mm

Material	Steel
Screw nail version	no
Shank diameter	2 mm
Surface	Bright
Version for	Siko

All types

All types

Types	Length	Shank diameter	Item no.	Quantity	SSU
511 12	12 mm	2 mm	3366111	piece	1000 piece
511 16	16 mm	2 mm	3366162	piece	1000 piece
511 18	18 mm	2 mm	3366189	piece	1000 piece
511 23	23 mm	2 mm	3366235	piece	1000 piece
511 30	30 mm	2 mm	3366308	piece	1000 piece
511 40	40 mm	2 mm	3366405	piece	1000 piece
511 50	50 mm	2 mm	3366502	piece	1000 piece
511 60	60 mm	2 mm	3366596	piece	1000 piece

Downloads

Data sheet 511 16 / 3366162 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 511 16 / 3366162 , 0.05MB , pdf

Download

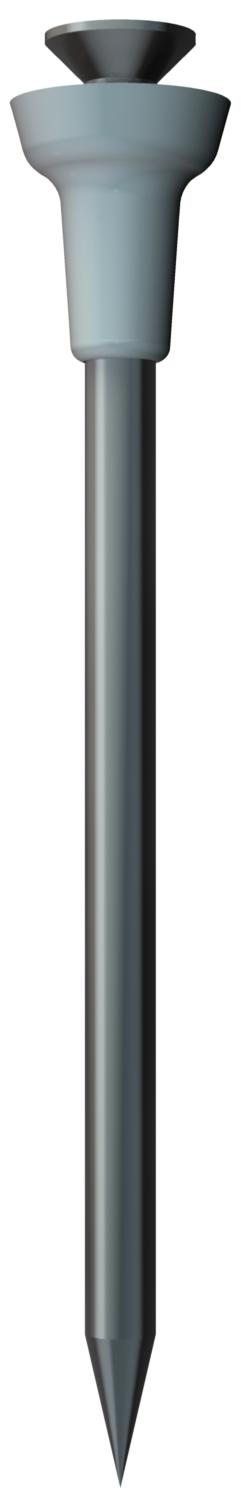

Product graphic 511 16 / 3366162, 17.79 kB, jpg

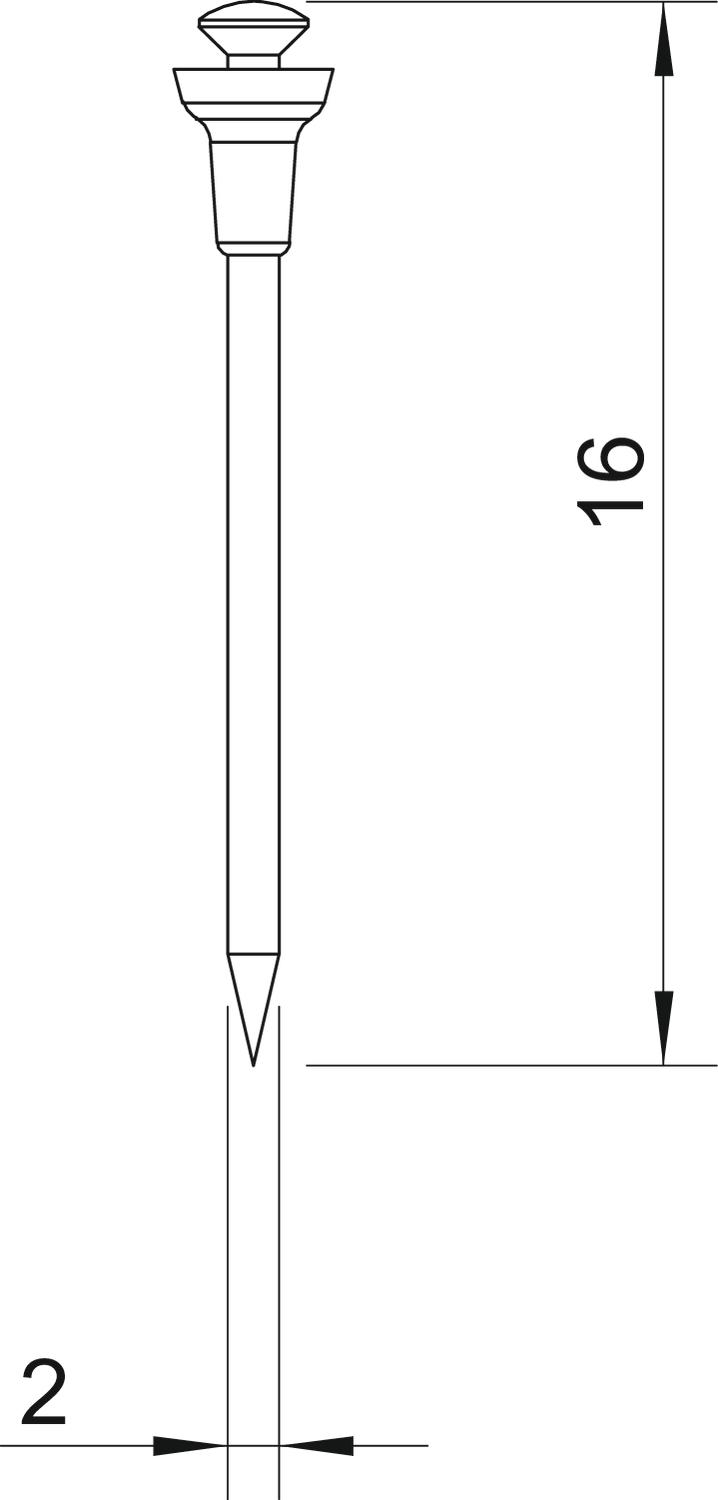

Scale drawing 511 16 / 3366162, 27.45 kB, jpg

511 16 / 3366162
