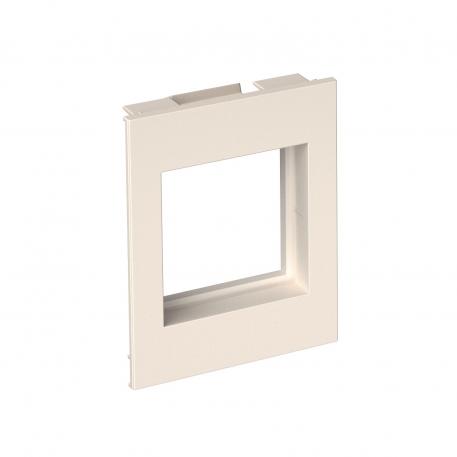

Single frame BRK
Item no. 6121102 | EAN 4012196734979
- Product description
-
Product description
Frame for Modul 45 locking connection (to accept the support plate for Keystone modules).
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Concealed no Depth 28 mm Dimension 66x80x28 Einbaubreite 45 mm Fastening type Clamp fastening Flush-mounted version no Halogen-free yes Hinged cover no Installation height 45 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting direction Horizontal and vertical Number of units 1 Number of units, horizontal 1 Protection rating IP20 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no With mounting frame no Dimensions
Height 80 mm Width 66 mm - All types
- Downloads
-
Data sheet BRK CF1 M45 cws / 6121102 , 0.18MB , pdfNo invitation to tender text is available for this product.
