Single frame BRK
Item no. 6121104 | EAN 4012196734986
- Product description
-
Product description

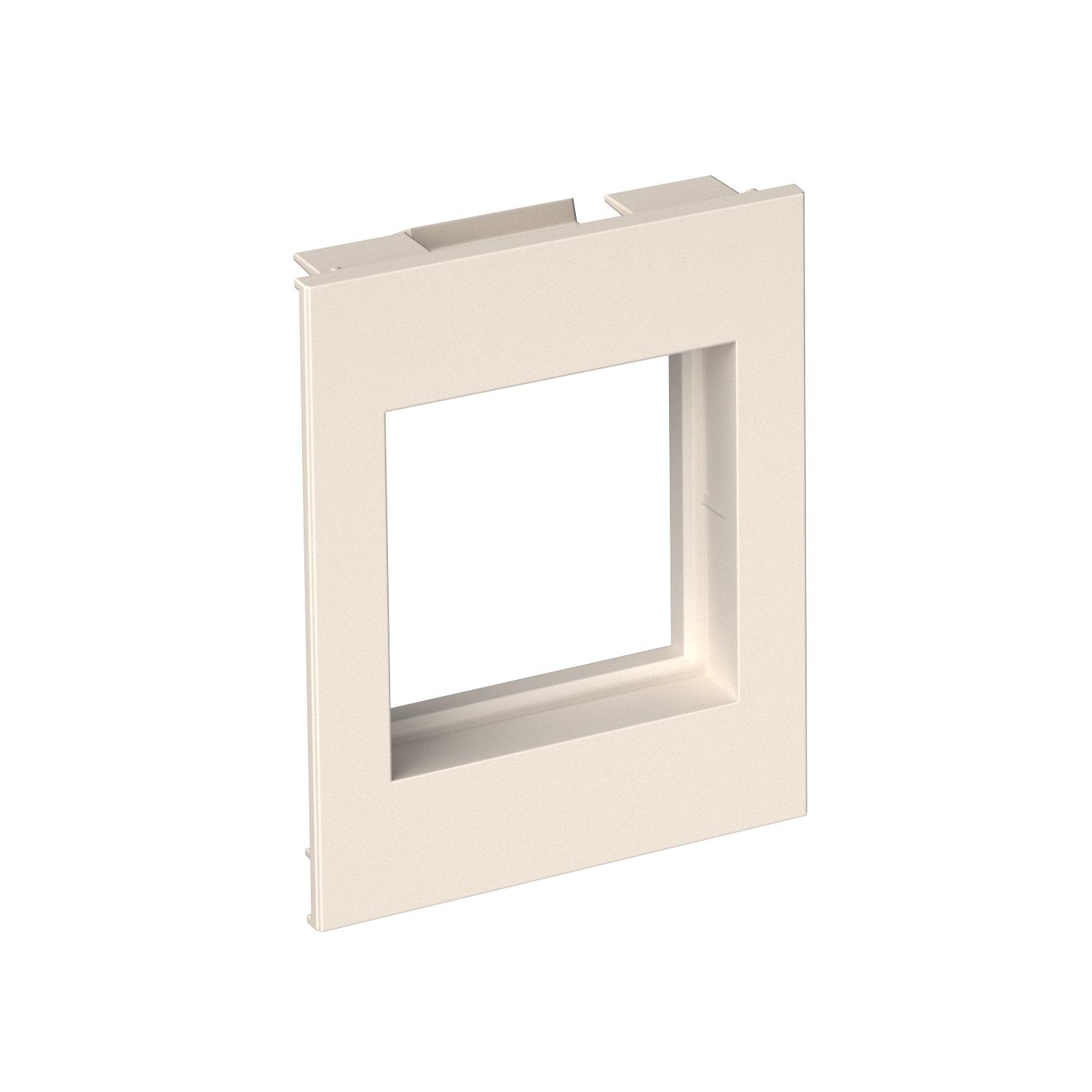

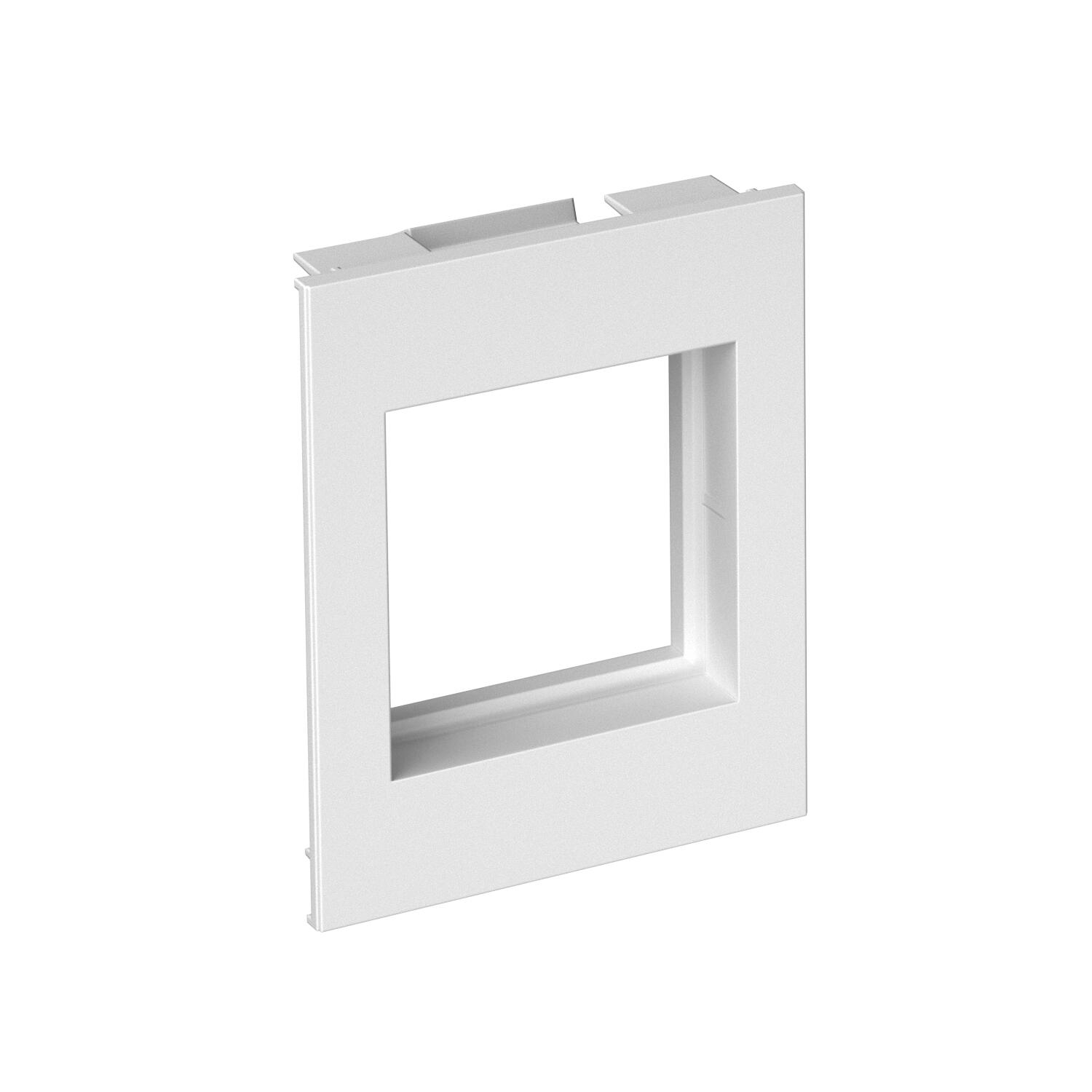

Frame for Modul 45 locking connection (to accept the support plate for Keystone modules).
- Technical data
-
Technical data
Antibacterial treatment no Anzahl der Einheiten vertikal 1 Colour Pure white; RAL 9010 Concealed no Depth 28 mm Dimension 66x80x28 Einbaubreite 45 mm Fastening type Clamp fastening Flush-mounted version no Halogen-free yes Hinged cover no Installation height 45 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting direction Horizontal and vertical Number of units 1 Number of units, horizontal 1 Protection rating IP20 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no With mounting frame no Dimensions

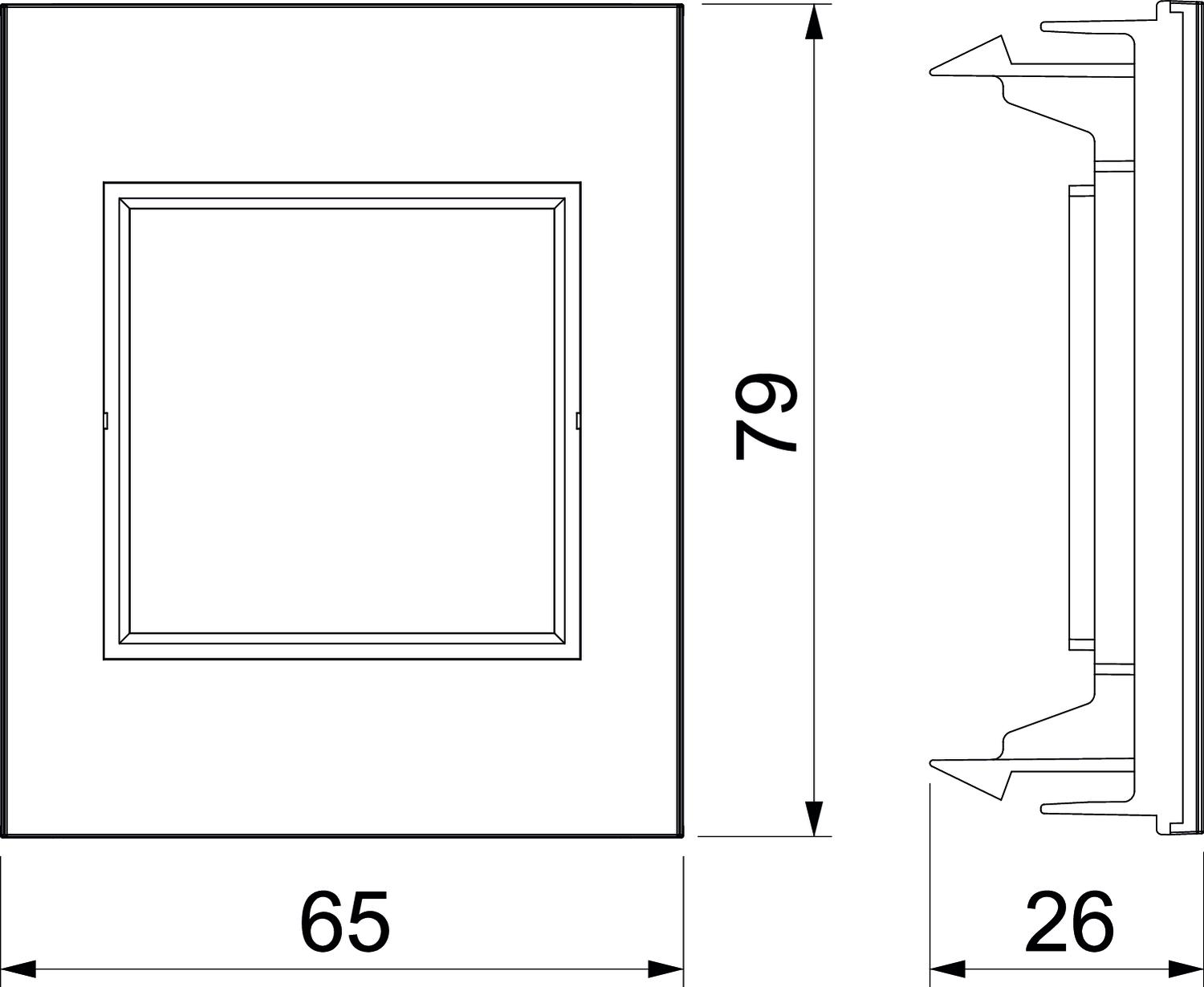

Height 80 mm Width 66 mm - All types
- Downloads
-
Data sheet BRK CF1 M45 rws / 6121104 , 0.21MB , pdfREACH Declaration of conformity BRK CF1 M45 rws / 6121104 , 0.12MB , pdfRoHS Declaration of conformity BRK CF1 M45 rws / 6121104 , 0.13MB , pdfNo invitation to tender text is available for this product.
