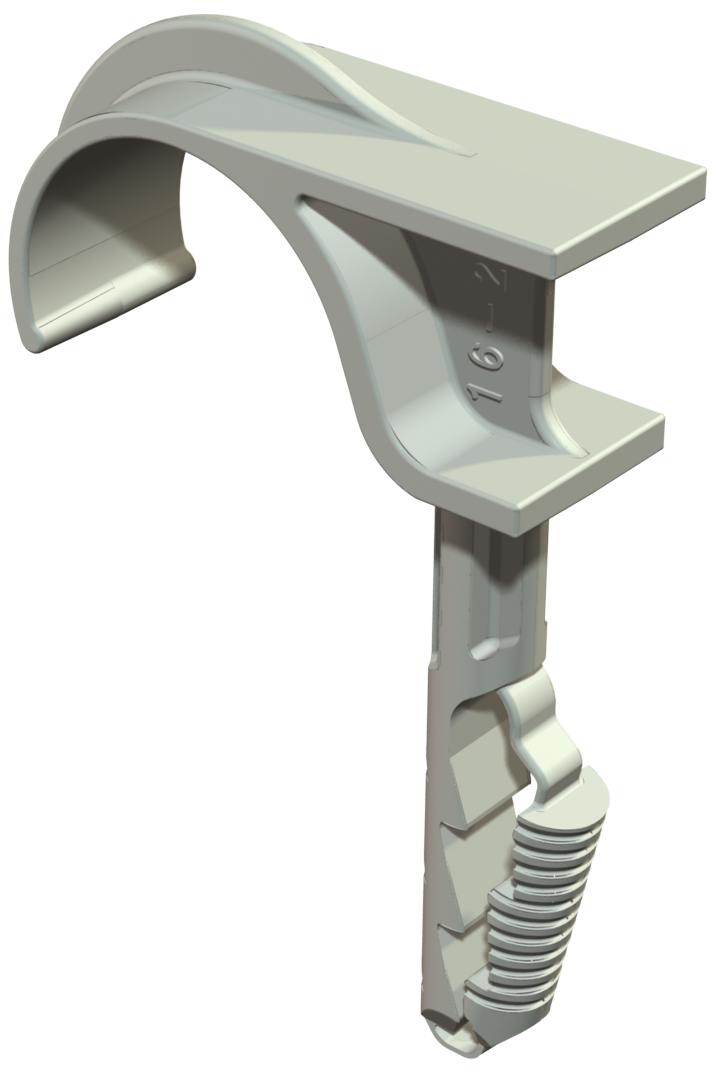

Single push-fit clip

Item no. 2197804 | EAN 4012195742999

40 mm
Product description

Product description

These push-fit clips are used when installing cables and pipes on walls and ceilings and when running flexible pipes on concrete and in the screed. The single push-fit clips can be used instead of nail clips in concrete and aerated concrete. The advantage of the push-fit clips is that they only have to be pushed into the drilled hole. Anchors and bolts are not needed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load for concrete B25 50 N
Clamping range D, max. 23 mm
Clamping range D, min. 16 mm
Colour Light grey; RAL 7035
Dimension 16-23mm
Drill hole depth 40 mm
Drill hole diameter, min. 6 mm
Fastening type Plug fastening
Halogen-free yes
Material Polyamide
Number of cables/pipes 1
Version for Single-lobe
All types

All types

Types Drill hole depth Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
1974 16-23 40 mm 16 mm 23 mm 2197804
100 piece
1974 22-30 40 mm 22 mm 30 mm 2197812
100 piece
