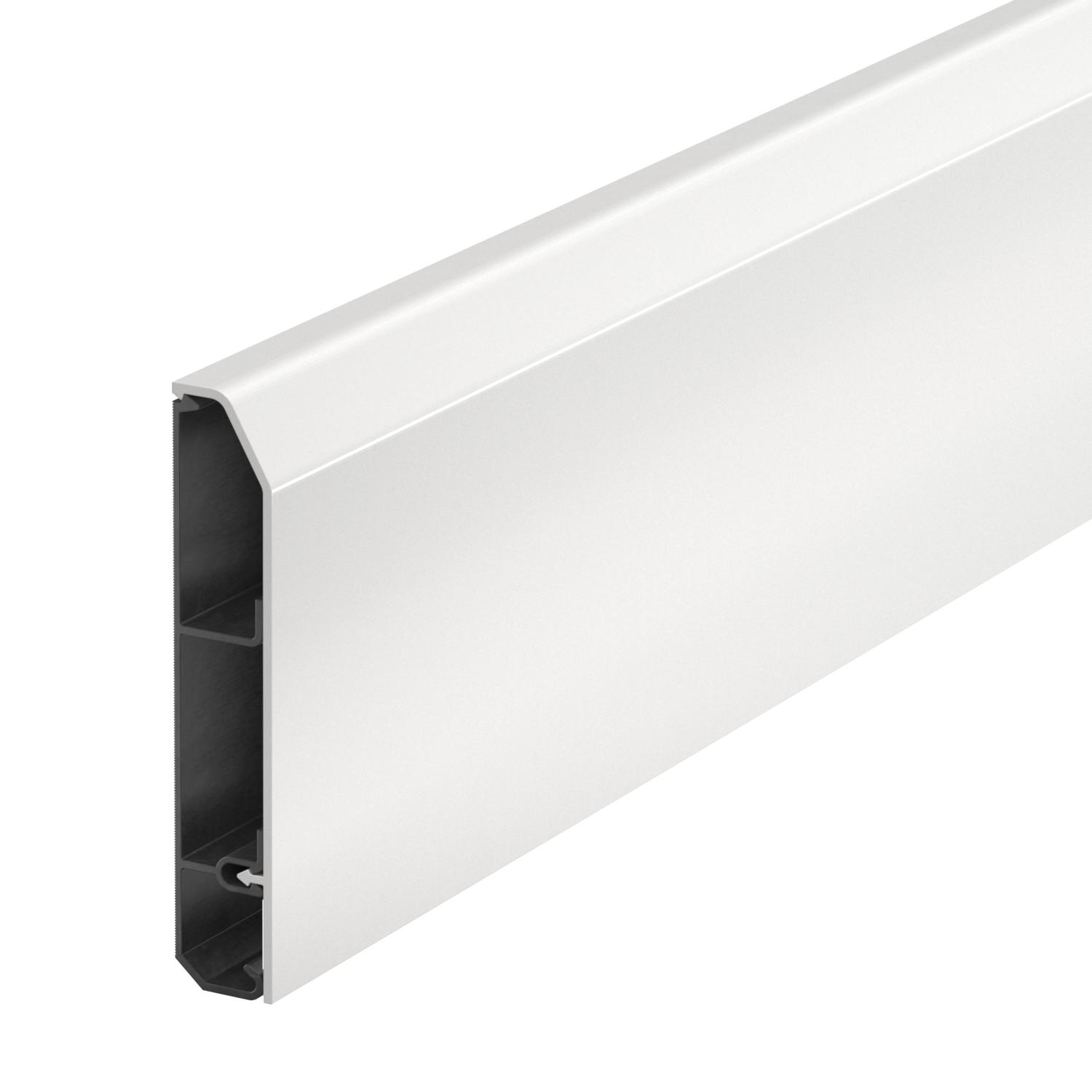

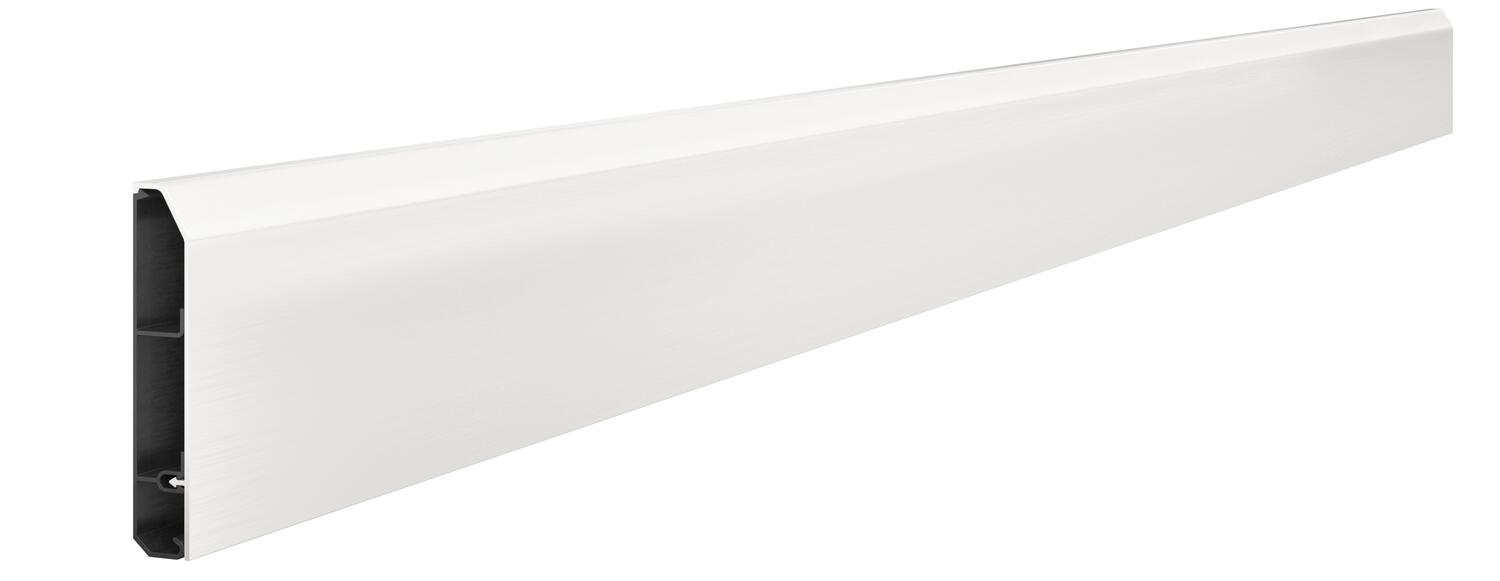

Skirting trunking SL 20110

Item no. 6132274 | EAN 4012196723416

6132274 / SL 20110 rws
2000 mm
Pure white; RAL 9010
Product description
Product description
SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Cover sealing lip Without
Decoration Without
Halogen-free no

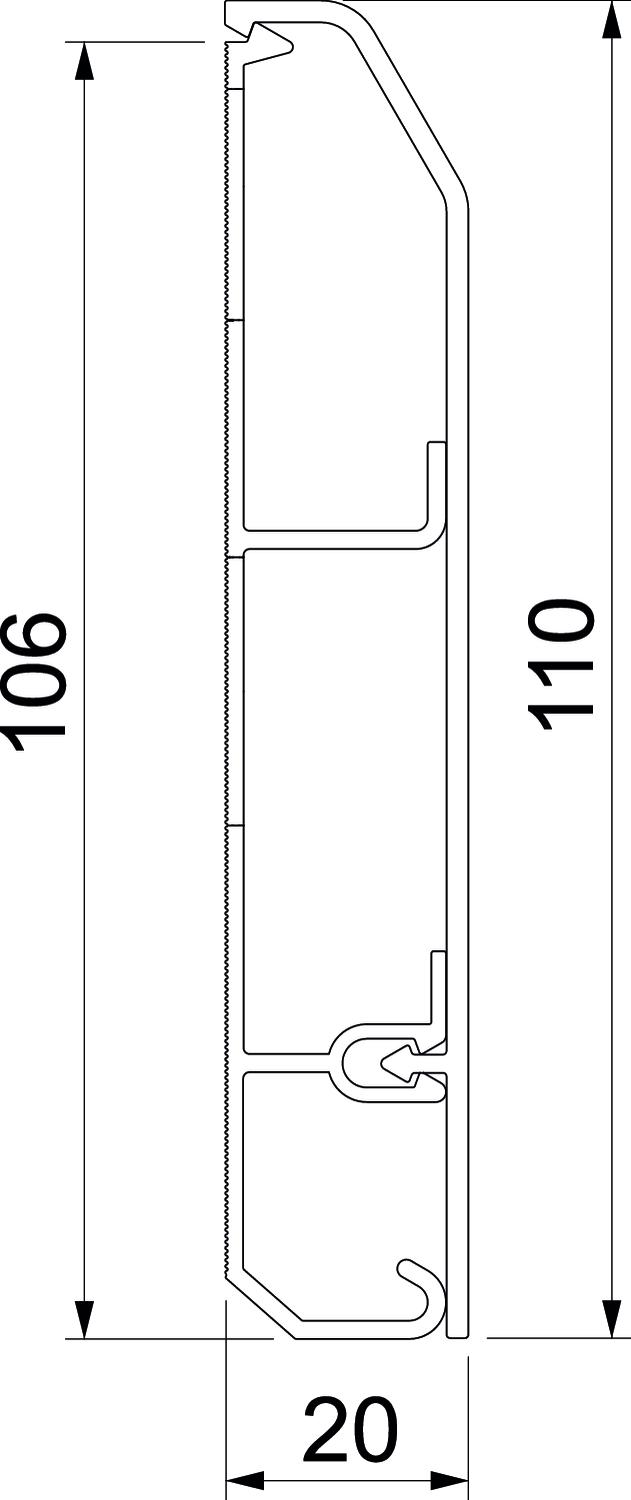

Height 20 mm
Length 2000 mm
Material Polyvinylchloride
Mounting perforation in base yes
Number of fixed partitions 2
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Protective film no
Usable cross-section 1350 mm²
Width 110 mm
With carpet strip no
All types

All types

Types Length Colour Item no. Quantity SSU
SL 20110 rws 2000 mm Pure white; RAL 9010 6132274
18 m
Accessories

System accessories

Products Types Item no. Quantity SSU

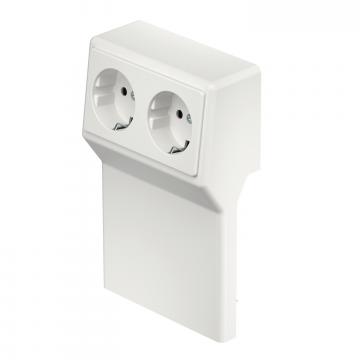

Device support SL 2GT20110 Device support SL 2GT20110 SL2GT20110 rws 6132250
10 piece
Device support SL ETler20110 Device support SL ETler20110 SL ETler20110rws 6132242
10 piece
Device support SL GTler20110 Device support SL GTler20110 SL GTler20110rws 6132236
10 piece
End piece SL ESli20110 End piece SL ESli20110 SL ESli20110 rws 6132300
10 piece

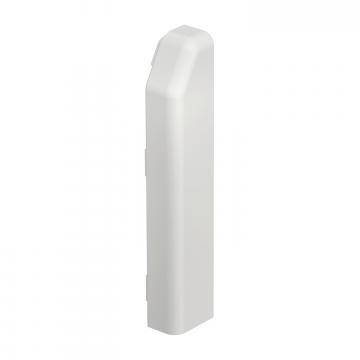

End piece SL ESre20110 End piece SL ESre20110 SL ESre20110 rws 6132286
10 piece

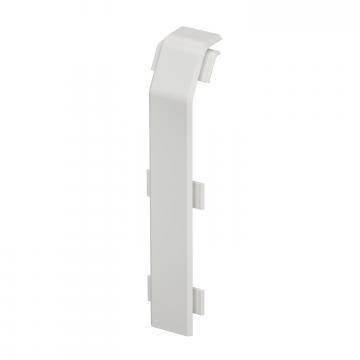

Coupling SL KUP20110 Coupling SL KUP20110 SL KUP20110 rws 6132235
10 piece

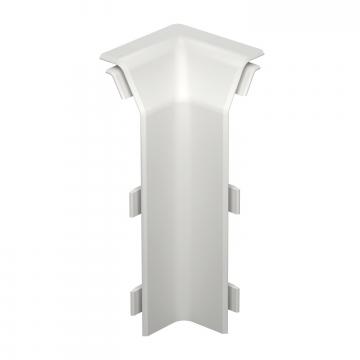

Internal corner SL IE20110 Internal corner SL IE20110 SL IE20110 rws 6132259
100 piece
External corner SL AE20110 External corner SL AE20110 SL AE20110 rws 6132275
10 piece
Blind cover SL BL blind Blind cover SL BL blind SL BL blind rws 6132199
10 piece

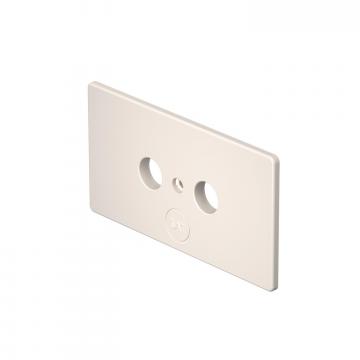

Antenna socket panel SL BL ANT Antenna socket panel SL BL ANT SL BL ANT cws 6132195
10 piece
Downloads

Download

Download

EU declaration of conformity SL 20110 rws / 6132274 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
