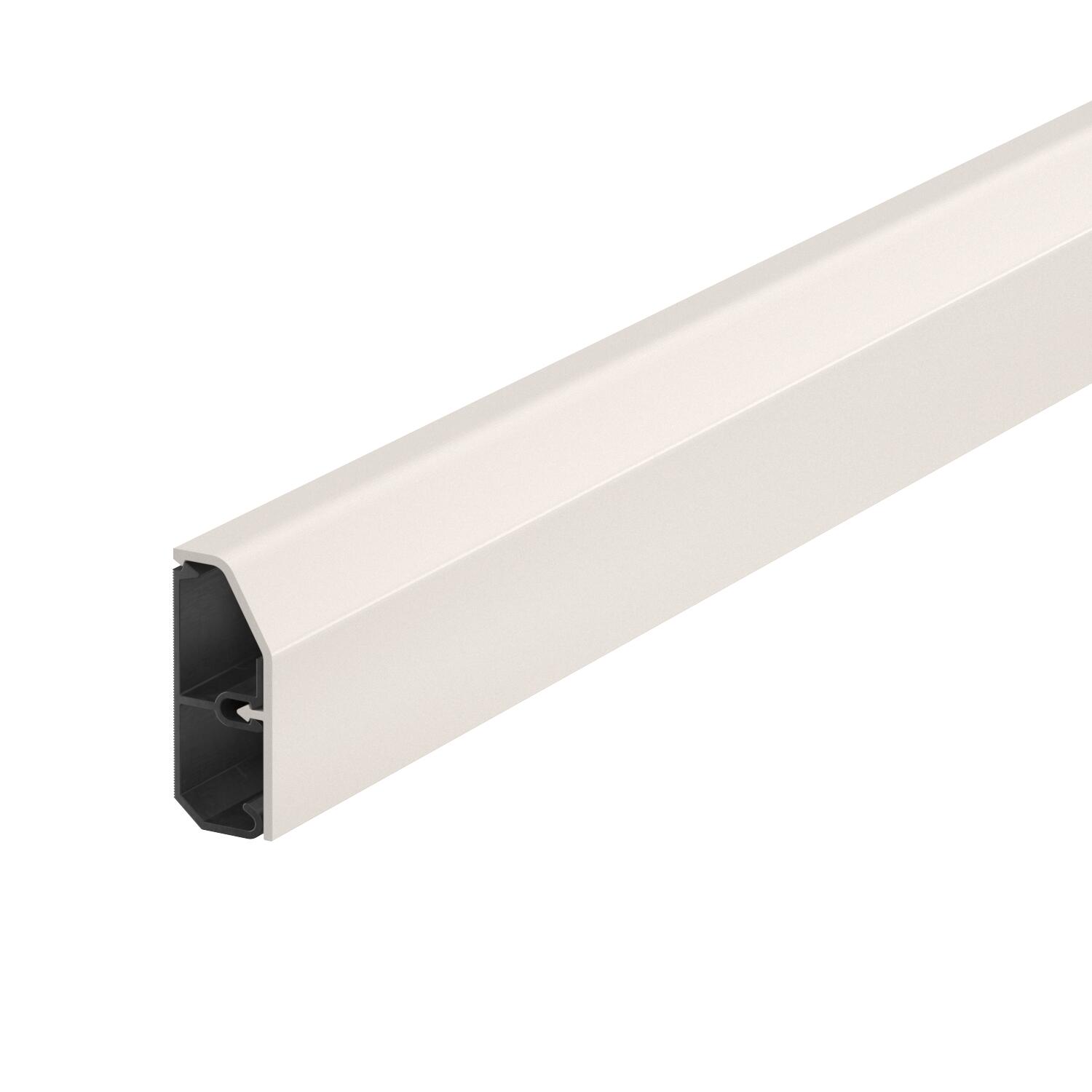

Skirting trunking SL 2050

Item no. 6132201 | EAN 4012196719211

2000 mm
Product description
Product description
SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Cream; RAL 9001
Cover sealing lip Without
Decoration Without
Halogen-free no
Height 20 mm
Length 2000 mm
Material Polyvinylchloride
Mounting perforation in base yes
Number of fixed partitions 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Protective film no
Usable cross-section 580 mm²
Width 50 mm
With carpet strip no
All types

All types

Types Length Colour Item no. Quantity SSU
SL 2050 rws 2000 mm Pure white; RAL 9010 6132193
42 m
SL 2050 cws 2000 mm Cream; RAL 9001 6132201
42 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Device support SL2GT5070 Device support SL2GT5070 SL2GT5070 cws 6132246
10 piece
Device support SL ETler5070 Device support SL ETler5070 SL ETler5070 cws 6132239
10 piece
Device support SL GTO 50-70 Device support SL GTO 50-70 SL GTO 50-70 cws 6132224
10 piece

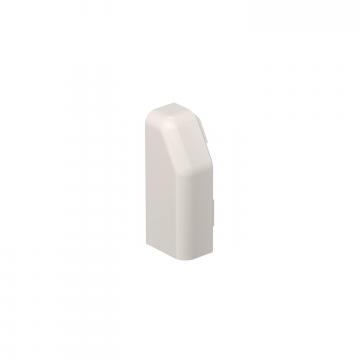

End piece SL ESli2050 End piece SL ESli2050 SL ESli2050 cws 6132294
10 piece

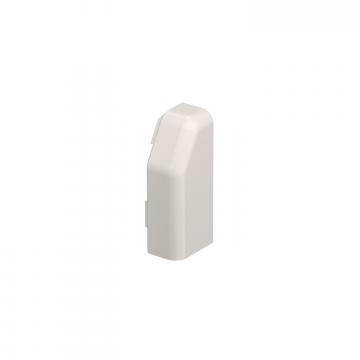

End piece SL ESre2050 End piece SL ESre2050 SL ESre2050 cws 6132278
10 piece
Coupling SL KUP2050 Coupling SL KUP2050 SL KUP2050 cws 6132226
10 piece

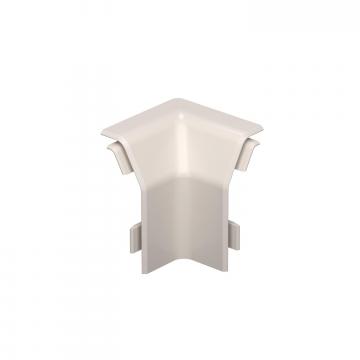

Internal corner SL IE2050 Internal corner SL IE2050 SL IE2050 cws 6132249
10 piece

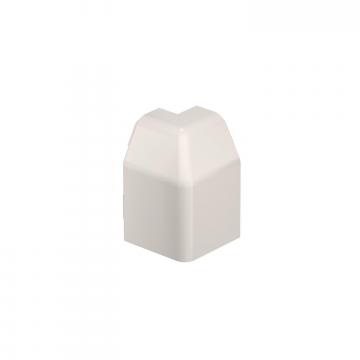

External corner SL AE2050 External corner SL AE2050 SL AE2050 cws 6132266
10 piece
Side closure, SL GTSA5070 device support Side closure, SL GTSA5070 device support SL GTSA5070 cws 6132197
10 piece
Blind cover SL BL blind Blind cover SL BL blind SL BL blind cws 6132252
10 piece
Antenna socket panel SL BL ANT Antenna socket panel SL BL ANT SL BL ANT cws 6132195
10 piece
Downloads

Download

Download

EU declaration of conformity SL 2050 cws / 6132201 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
