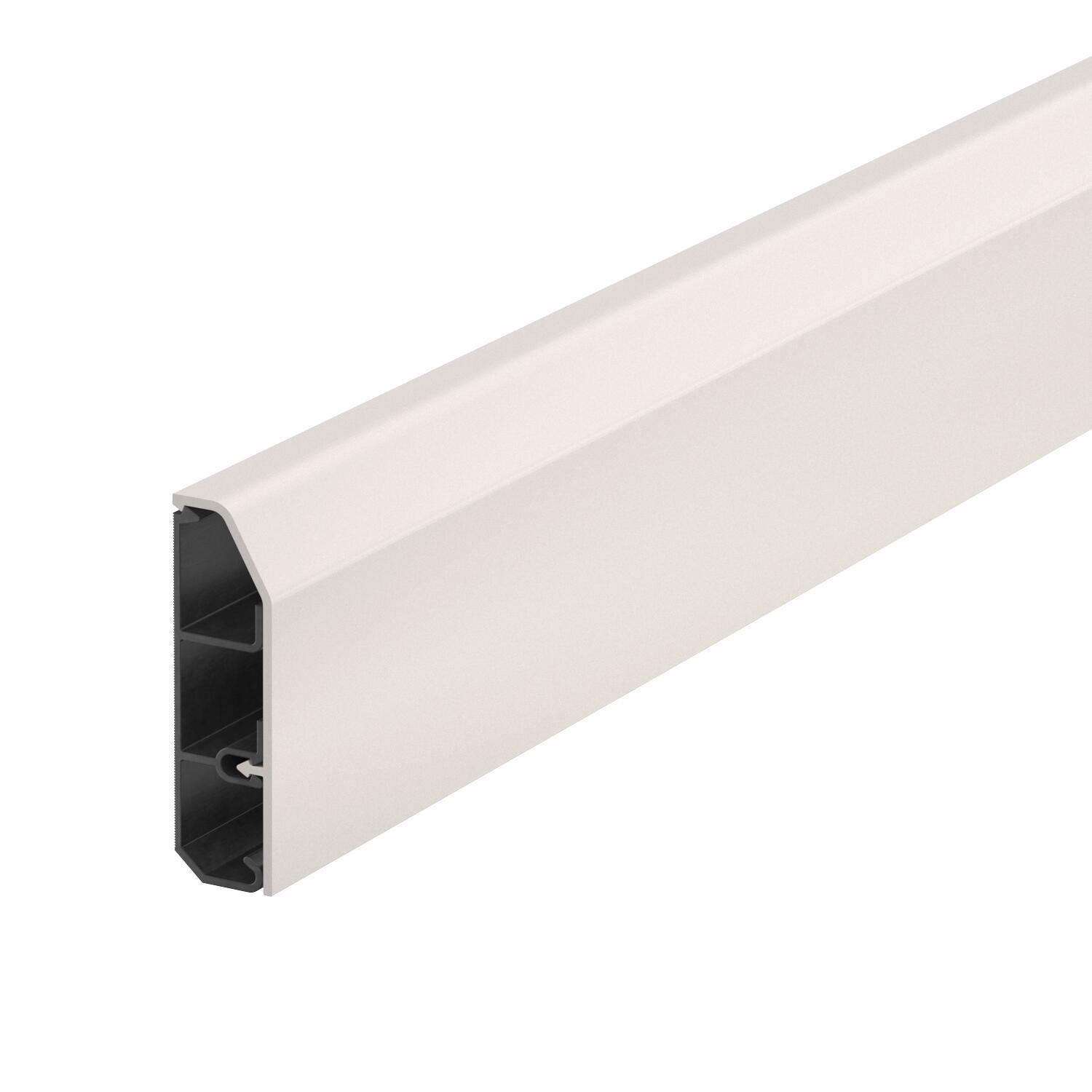

Skirting trunking SL 2070

Item no. 6132208 | EAN 4012196719976

2000 mm
Product description
Product description
SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Cream; RAL 9001
Cover sealing lip Without
Decoration Without
Halogen-free no

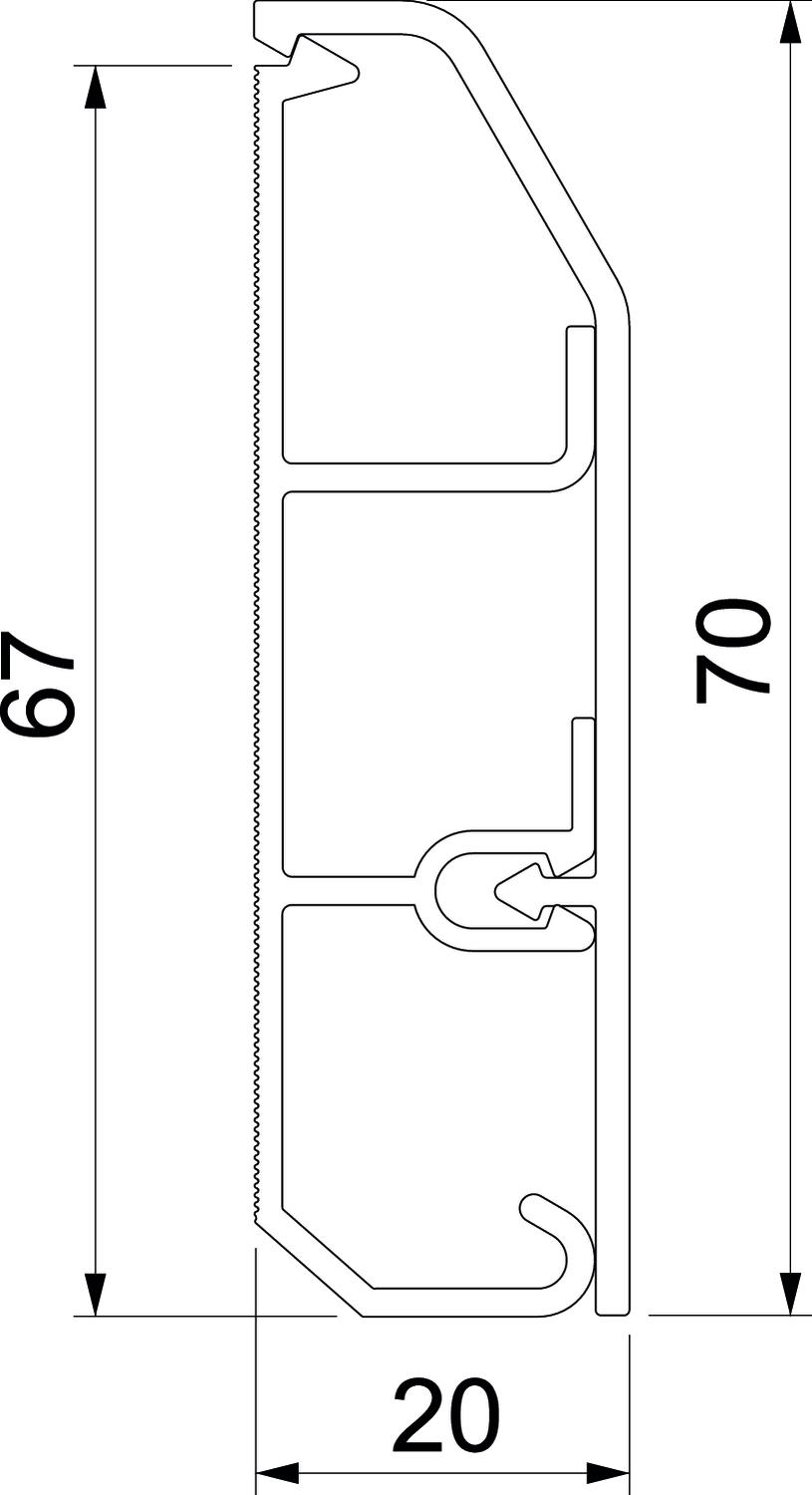

Height 20 mm
Length 2000 mm
Material Polyvinylchloride
Mounting perforation in base yes
Number of fixed partitions 2
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Protective film no
Usable cross-section 820 mm²
Width 70 mm
With carpet strip no
All types

All types

Types Length Colour Item no. Quantity SSU
SL 2070 cws 2000 mm Cream; RAL 9001 6132208
28 m
SL 2070 rws 2000 mm Pure white; RAL 9010 6132267
28 m
SL 2070 lgr 2000 mm Light grey; RAL 7035 6132269
28 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Device support SL2GT5070 Device support SL2GT5070 SL2GT5070 cws 6132246
10 piece
Device support SL ETler5070 Device support SL ETler5070 SL ETler5070 cws 6132239
10 piece
Device support SL GTO 50-70 Device support SL GTO 50-70 SL GTO 50-70 cws 6132224
10 piece

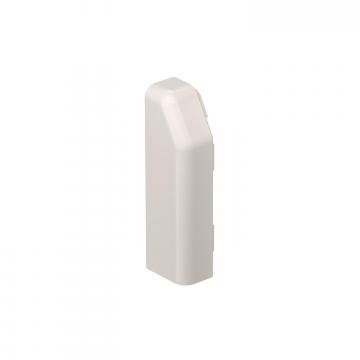

End piece SL ESli2070 End piece SL ESli2070 SL ESli2070 cws 6132297
10 piece

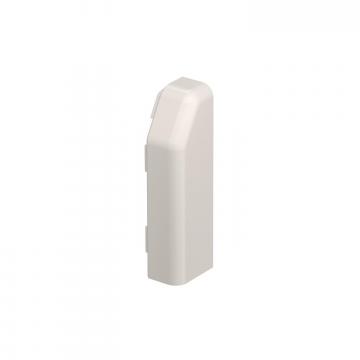

End piece SL ESre2070 End piece SL ESre2070 SL ESre2070 cw 6132282
10 piece
Coupling SL KUP2070 Coupling SL KUP2070 SL KUP2070 cws 6132231
10 piece

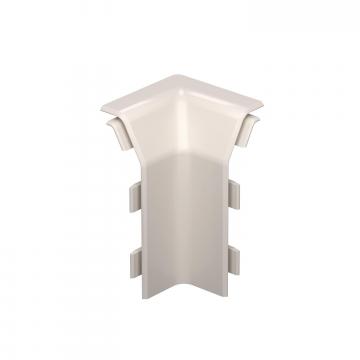

Internal corner SL IE2070 Internal corner SL IE2070 SL IE2070 cws 6132254
10 piece

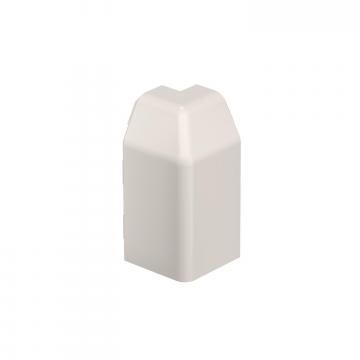

External corner SL AE2070 External corner SL AE2070 SL AE2070 cws 6132271
10 piece
Blind cover SL BL blind Blind cover SL BL blind SL BL blind cws 6132252
10 piece
Antenna socket panel SL BL ANT Antenna socket panel SL BL ANT SL BL ANT cws 6132195
10 piece
Downloads

Download

Download

EU declaration of conformity SL 2070 cws / 6132208 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
