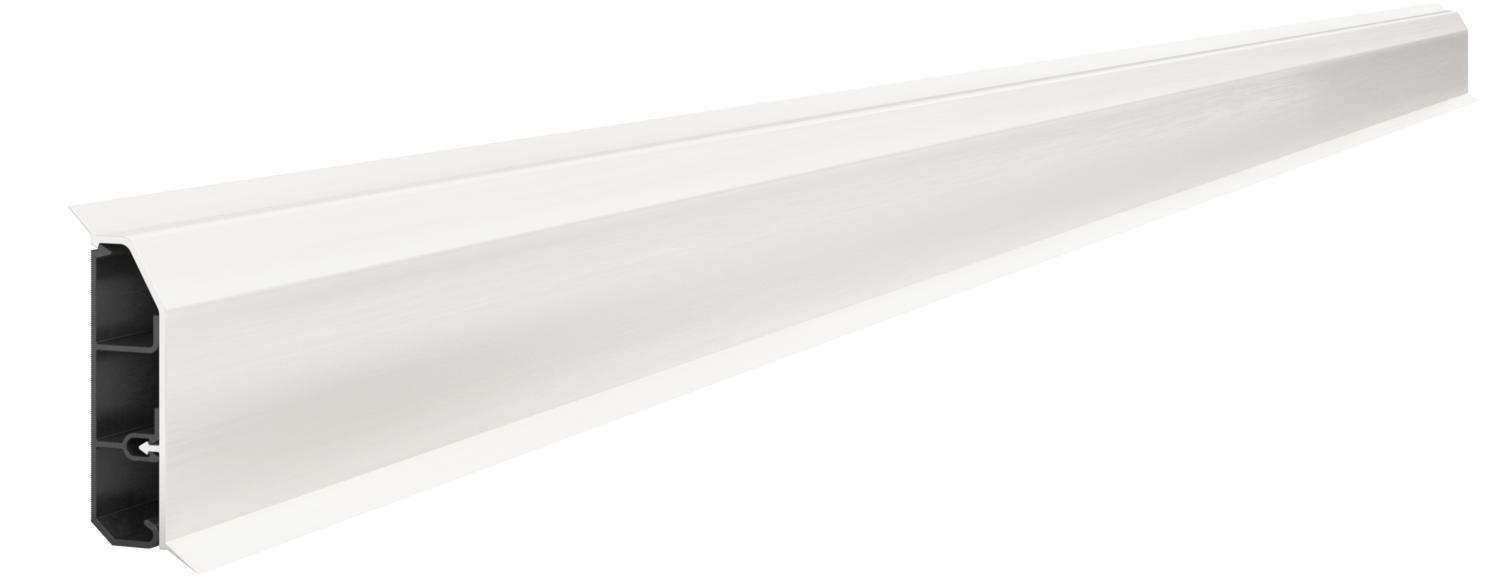

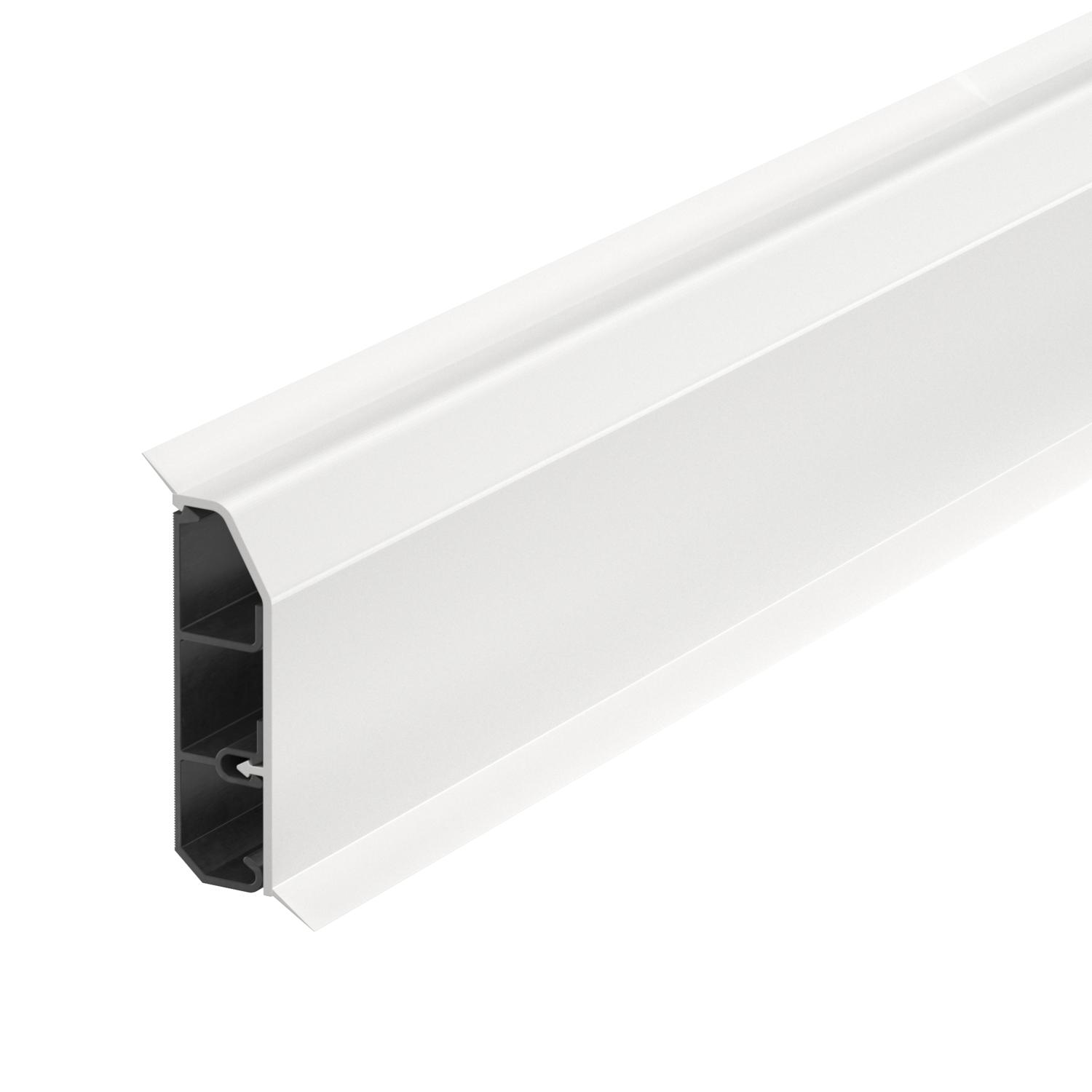

Skirting trunking SLL 2070

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

SL-L skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

Technical data

Colour	Pure white; RAL 9010
Cover sealing lip	Wall/floor
Decoration	Without
Halogen-free	no

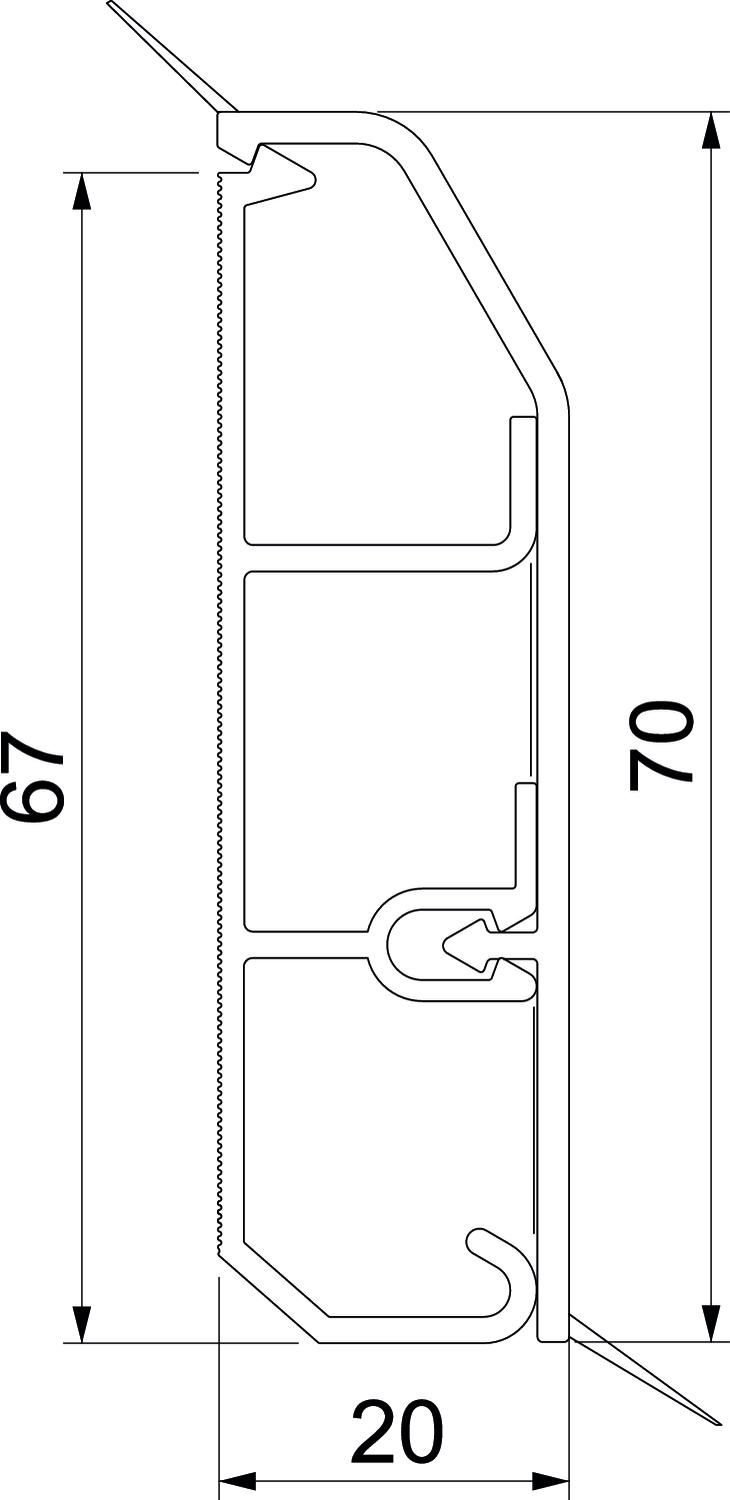

Height	20 mm
Length	2000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes
Number of fixed partitions	2

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Protective film	no
Usable cross-section	820 mm²
Width	70 mm
With carpet strip	no

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SLL 2070 cws	2000 mm	Cream; RAL 9001	6132214	m	42 m
SLL 2070 rws	2000 mm	Pure white; RAL 9010	6132215	m	42 m

Accessories

Products	Types	Item no.	Quantity	SSU
Device support SL2GT5070	SL2GT5070 rws	6132245	piece	10 piece
Device support SL ETler5070	SL ETler5070 rws	6132238	piece	10 piece
Device support SL GTO 50-70	SL GTO 50-70 rws	6132229	piece	10 piece
Coupling SL KUP2070	SL KUP2070 rws	6132230	piece	10 piece

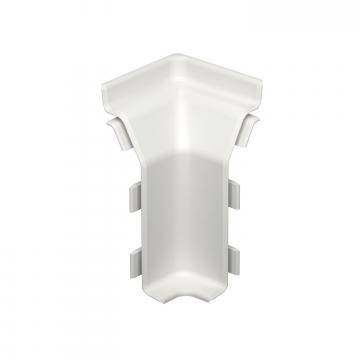

Internal corner SLL IE2070	SLL IE2070 rws	6132243	piece	10 piece

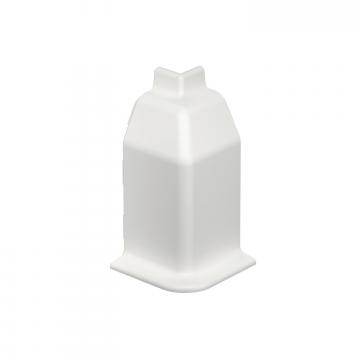

External corner SLL AE2070	SLL AE2070 rws	6132262	piece	10 piece
Side closure, SL GTSA5070 device support	SL GTSA5070 rws	6132234	piece	10 piece
Blind cover SL BL blind	SL BL blind rws	6132199	piece	10 piece
Antenna socket panel SL BL ANT	SL BL ANT rws	6132258	piece	10 piece
