Slide nut 17 | 10.5 | 4 | M6
morepic-1 morepic-2

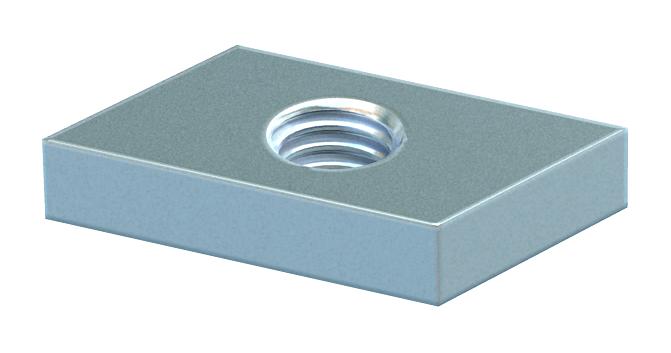

Slide nut

Item no. 1147016 | EAN 4012196488650

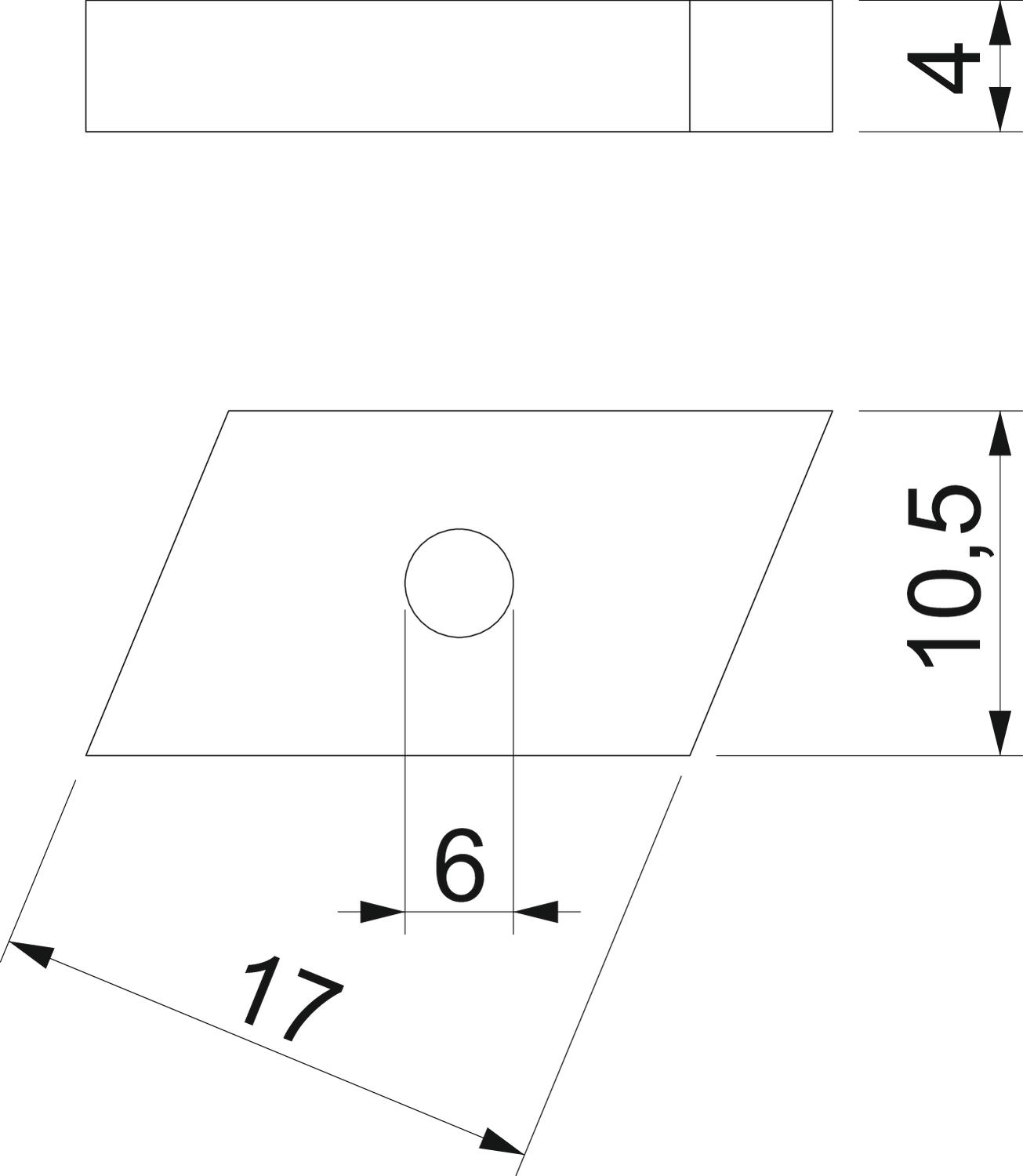

17 mm
10.5 mm
4 mm
Product description
Product description
Slide nut for use with CL2008 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,012 kg CO₂e / 1 Piece
Dimension M6
Height 4 mm
Length 17 mm
Material Steel
Surface Zinc slat
Thread M6
Thread metric 6
Width 10,5 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
CL20SN M4 ZL 17 mm 10.5 mm 4 mm M4 1147008
100 piece
CL20SN M5 ZL 17 mm 10.5 mm 4 mm M5 1147012
100 piece
CL20SN M6 ZL 17 mm 10.5 mm 4 mm M6 1147016
100 piece
