Slide nut 24.5 | 13 | 4 | M8

morepic-1

morepic-2

Slide nut

Item no. 1147032 | EAN 4012196488698

Item no. / Types

Length

Width

Height

Thread

Product description

Product description

Slide nut for use with CL2712 profile rail

Technical data

Technical data

Dimension	M8
Height	4 mm
Length	24,5 mm
Material	Steel
Surface	Zinc slat

Thread	M8
Thread metric	8
Width	13 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
CL27SN M4 ZL	21 mm	10 mm	2.5 mm	M4	1147020	piece	100 piece
CL27SN M5 ZL	24.5 mm	13 mm	4 mm	M5	1147024	piece	100 piece
CL27SN M6 ZL	24.5 mm	13 mm	4 mm	M6	1147028	piece	100 piece
CL27SN M8 ZL	24.5 mm	13 mm	4 mm	M8	1147032	piece	100 piece

Downloads

Data sheet CL27SN M8 ZL / 1147032 , 0.14MB , pdf

Brochure Rail systems , 2.10MB , pdf

REACH Declaration of conformity CL27SN M8 ZL / 1147032 , 0.12MB , pdf

Download

RoHS Declaration of conformity CL27SN M8 ZL / 1147032 , 0.12MB , pdf

Download

Product graphic CL27SN M8 ZL / 1147032, 17.75 kB, jpg

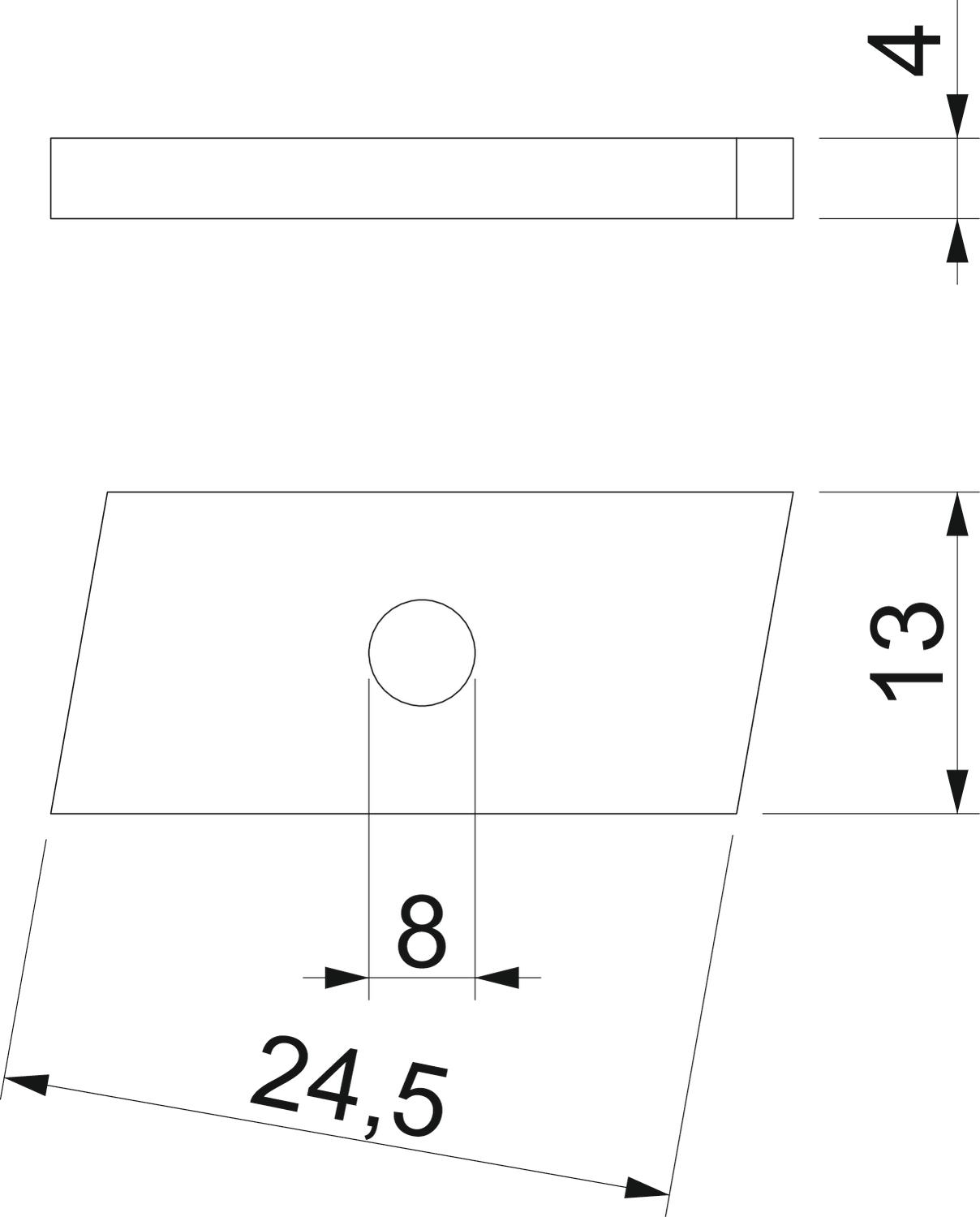

Scale drawing CL27SN M8 ZL / 1147032, 46.39 kB, jpg

CL27SN M8 ZL / 1147032

1147032_KSTP1.STP, 19.50 kB
