Slide nut A4 26 | 16.5 | 6 | M10
morepic-1 morepic-2

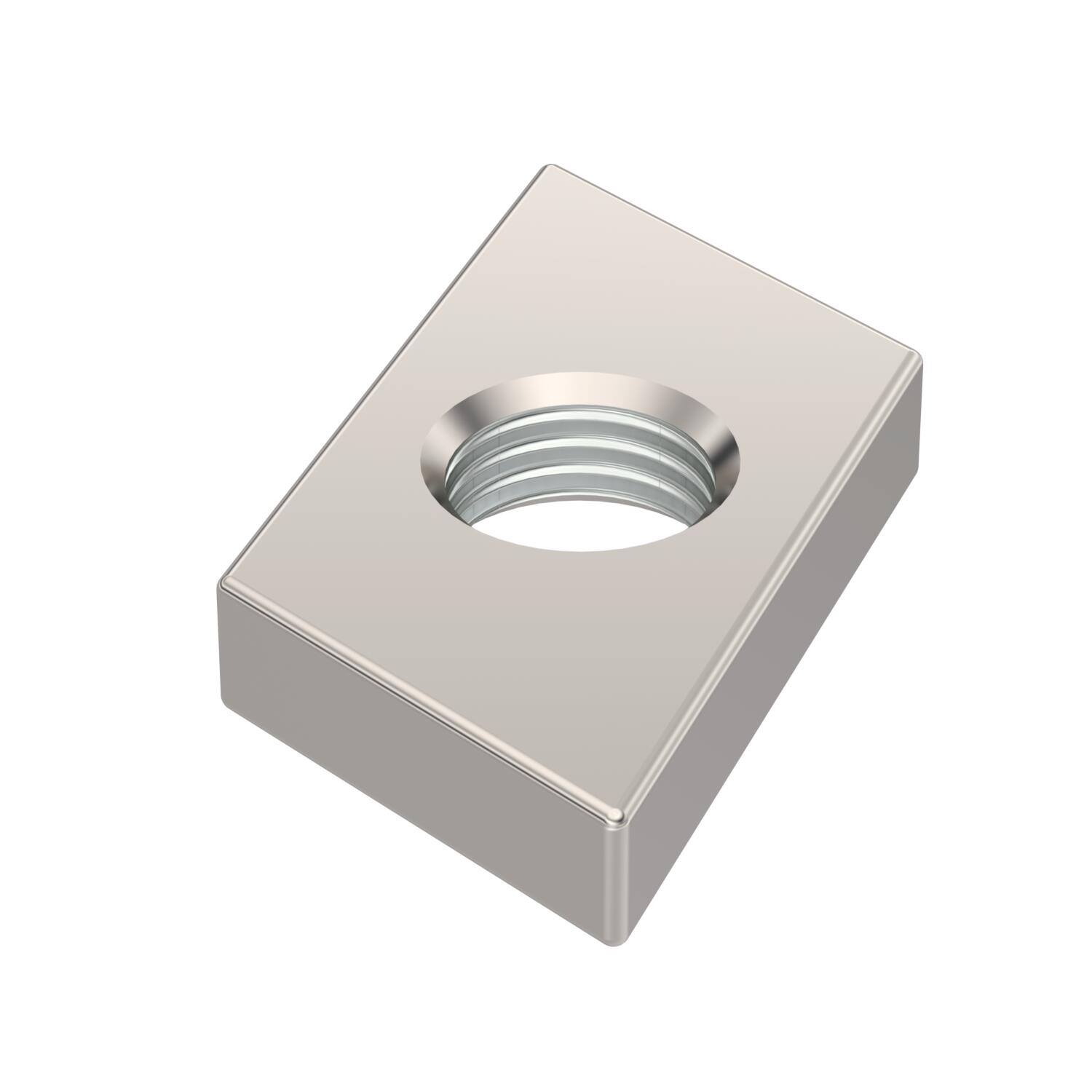

Slide nut A4

Item no. 1147084 | EAN 4012196488803

26 mm
16.5 mm
Product description

Product description

Slide nut for use with CM3015, CM3518 and AM3518 profile rails.


Slide nut for use with C30 profile rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
Technical data

Technical data

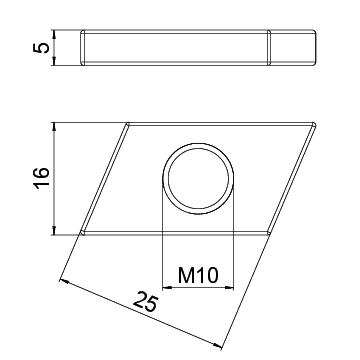

Dimension M10
Dimension B 16,5 mm
Dimension H 6 mm
Dimension L 26 mm
Height 6 mm
Length 26 mm
Material Stainless steel
Surface Bright, treated
Thread M10
Thread metric 10
Width 16,5 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMSN M6 A4 26 mm 16.5 mm 4 mm M6 1147076
100 piece
ACMSN M8 A4 26 mm 16.5 mm 5 mm M8 1147080
100 piece
ACMSN M10 A4 26 mm 16.5 mm 6 mm M10 1147084
100 piece
Downloads

Download

Download

REACH Declaration of conformity ACMSN M10 A4 / 1147084 , 0.12MB , pdf
Download
RoHS Declaration of conformity ACMSN M10 A4 / 1147084 , 0.12MB , pdf
Download

ACMSN M10 A4 / 1147084
