Slide nut A4 35 | 17 | 10 | M6
morepic-1 morepic-2

Slide nut A4

Item no. 1147126 | EAN 4012196489435

35 mm
17 mm
Product description

Product description

Slide nut for use with MS4022 profile rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
Technical data

Technical data

Dimension M6
Material Stainless steel
Surface Bright, treated
Thread M6
Thread metric 6
With spring no

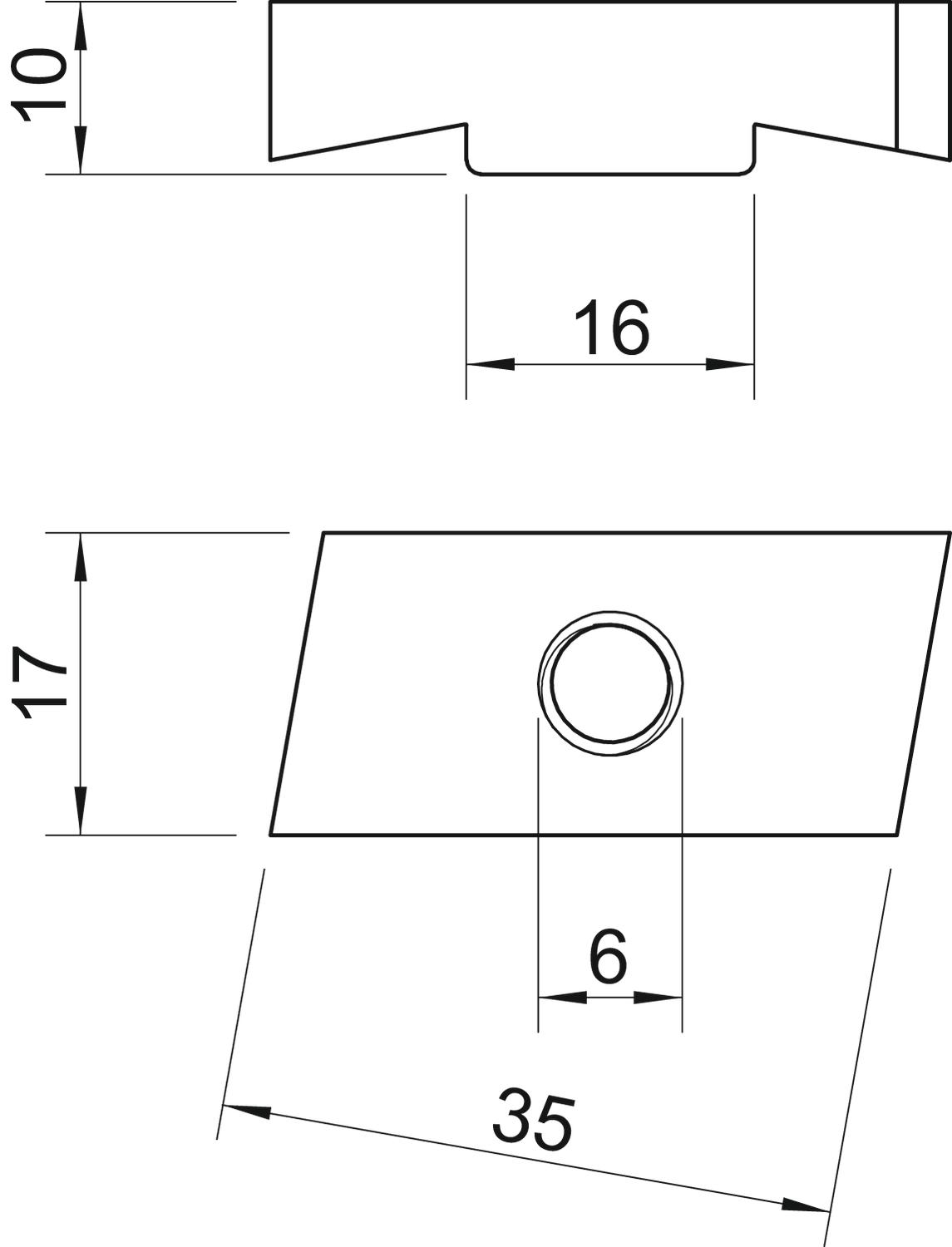

Dimensions

Dimension B 17 mm
Dimension H 10 mm
Dimension L 30 mm
Height 10 mm
Length 35 mm
Width 17 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS40SN M6 A4 35 mm 17 mm 10 mm M6 1147126
50 piece
MS40SN M8 A4 35 mm 17 mm 10 mm M8 1147130
50 piece
MS40SN M10 A4 35 mm 17 mm 10 mm M10 1147134
50 piece
MS40SN M12 A4 35 mm 17 mm 11.5 mm M12 1147138
50 piece
Downloads

Download

Download

MS40SN M6 A4 / 1147126
Download
