Slide nut A4 35 | 20 | 6 | M6
morepic-1 morepic-2

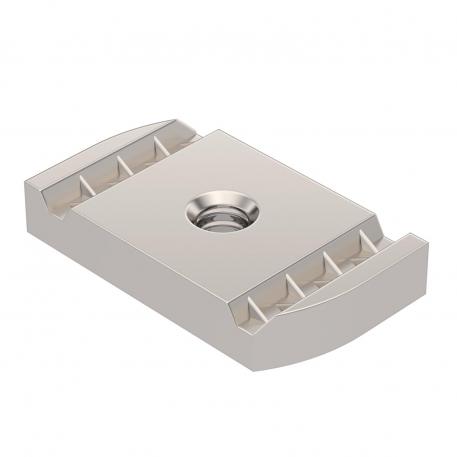

Slide nut A4

Item no. 1147226 | EAN 4012196489893

35 mm
20 mm
Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

Dimension M6
Material Stainless steel
Surface Bright, treated
Thread M6
Thread metric 6
With spring no

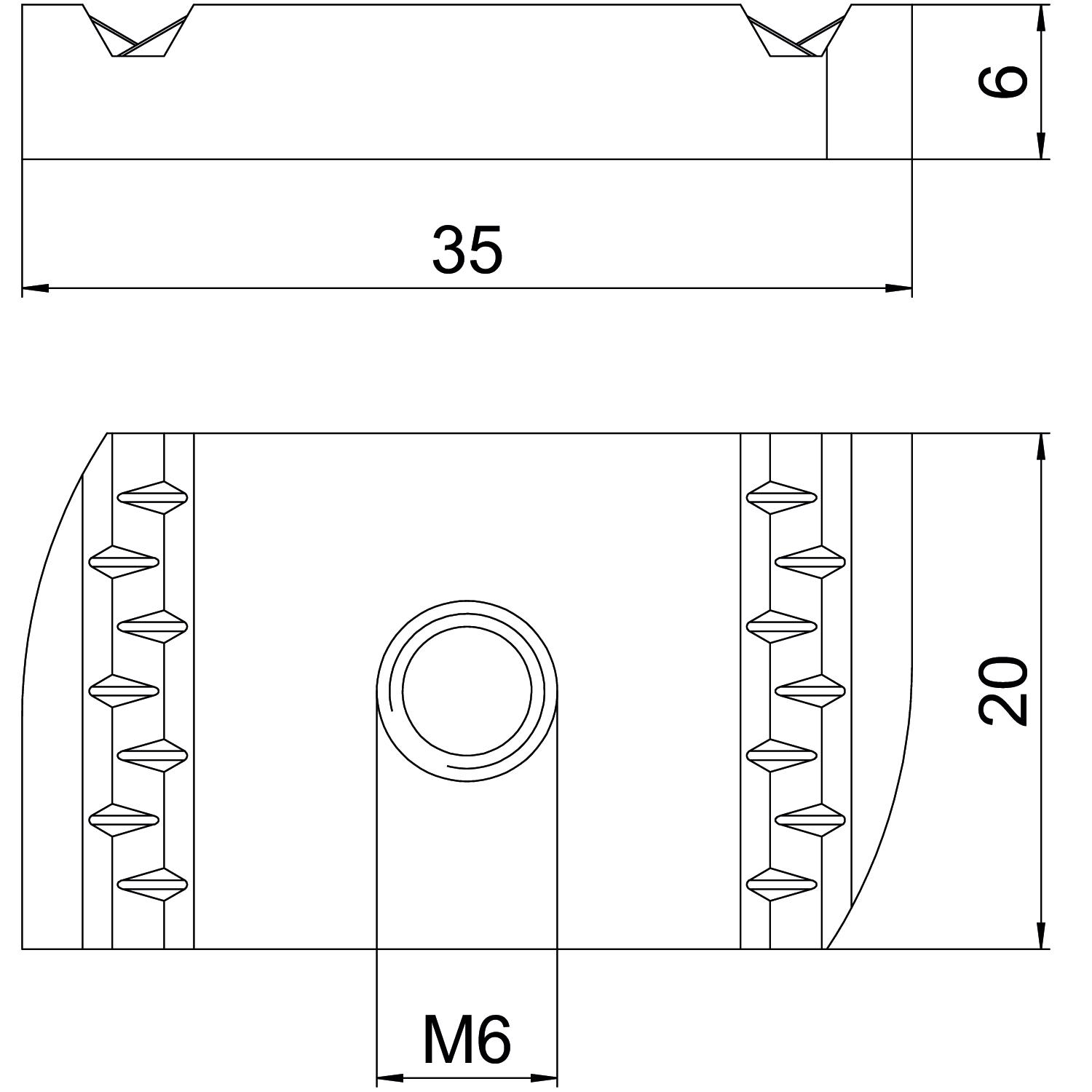

Dimensions

Dimension H 6 mm
Height 6 mm
Length 35 mm
Width 20 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 A4 35 mm 20 mm 6 mm M6 1147226
50 piece
MS41SN M8 A4 35 mm 20 mm 6 mm M8 1147230
50 piece
MS41SN M10 A4 35 mm 20 mm 8 mm M10 1147234
50 piece
MS41SN M12 A4 35 mm 20 mm 9 mm M12 1147238
50 piece
