Slide nut A4 35 | 20 | 6 | M8

morepic-1

morepic-2

Slide nut A4

Item no. 1147230 | EAN 4012196489909

Item no. / Types

Length	35 mm

Width	20 mm

Height

Thread

Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails

Technical data

Technical data

Dimension	M8
Dimension H	6 mm
Height	6 mm
Length	35 mm
Material	Stainless steel

Surface	Bright, treated
Thread	M8
Thread metric	8
Width	20 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41SN M6 A4	35 mm	20 mm	6 mm	M6	1147226	piece	50 piece
MS41SN M8 A4	35 mm	20 mm	6 mm	M8	1147230	piece	50 piece
MS41SN M10 A4	35 mm	20 mm	8 mm	M10	1147234	piece	50 piece
MS41SN M12 A4	35 mm	20 mm	9 mm	M12	1147238	piece	50 piece

Downloads

Data sheet MS41SN M8 A4 / 1147230 , 0.19MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS41SN M8 A4 / 1147230 , 0.04MB , pdf

Download

REACH Declaration of conformity MS41SN M8 A4 / 1147230 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS41SN M8 A4 / 1147230 , 0.12MB , pdf

Download

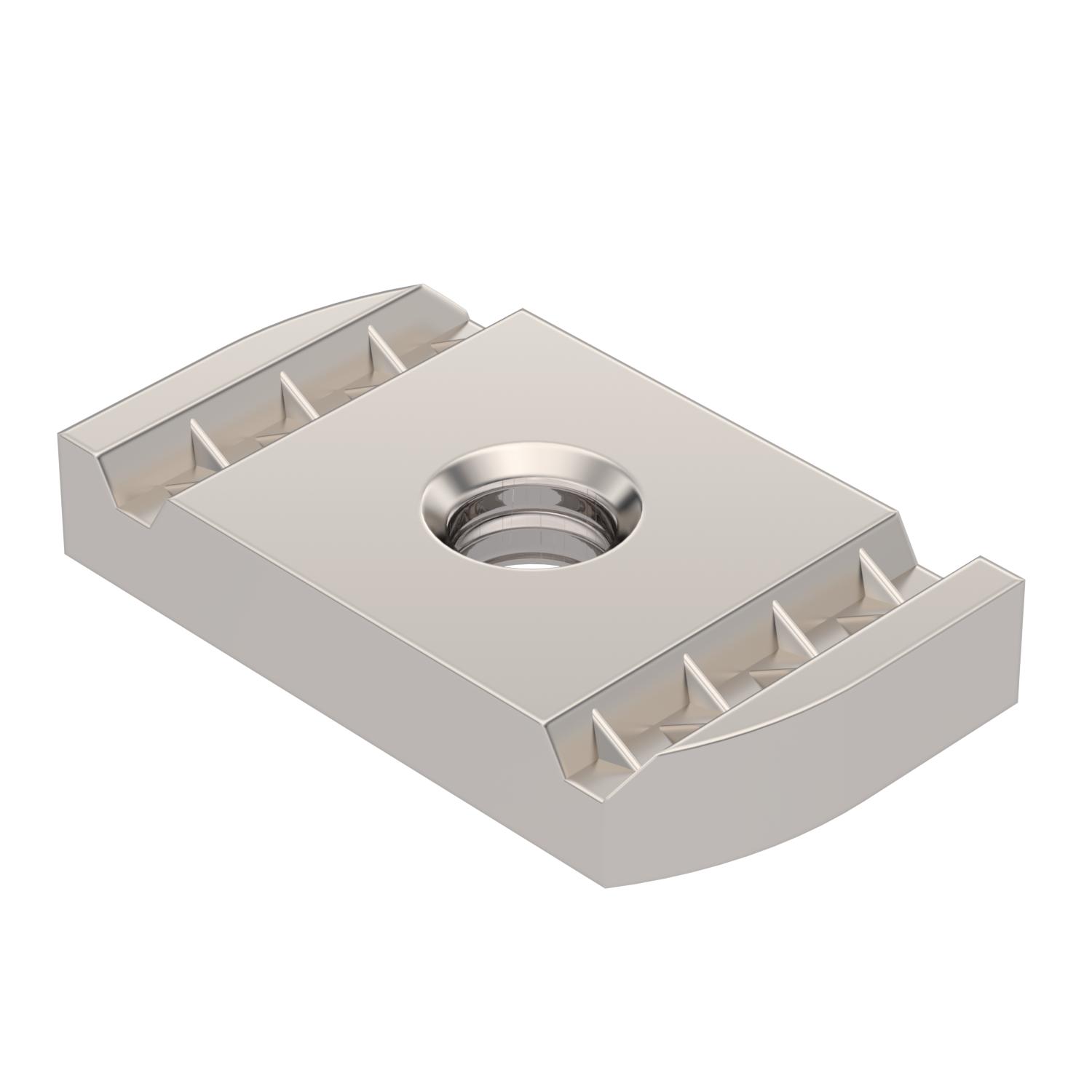

Product graphic MS41SN M8 A4 / 1147230, 49.66 kB, jpg

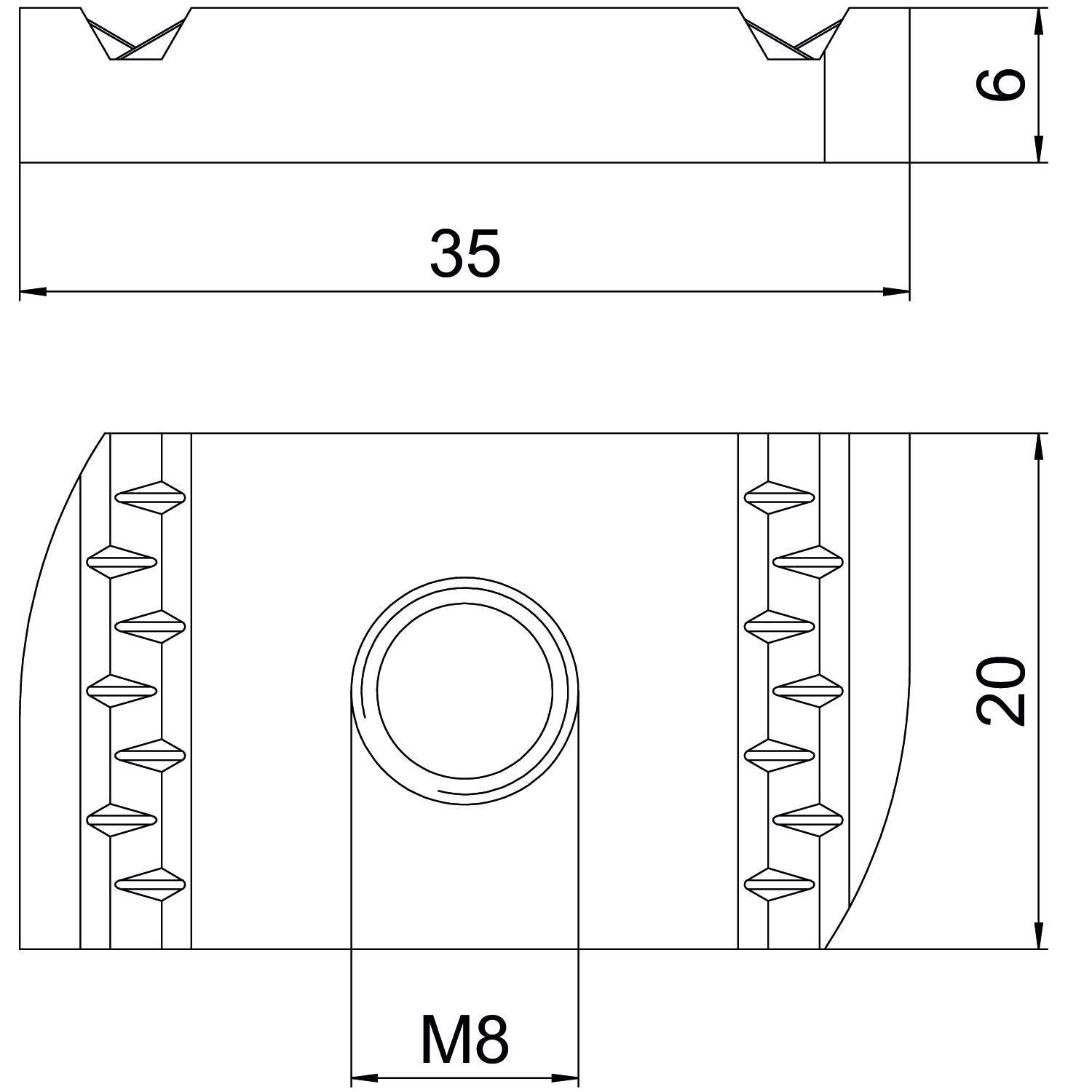

Scale drawing MS41SN M8 A4 / 1147230, 94.27 kB, jpg

MS41SN M8 A4 / 1147230
