Slide nut A4 43 | 21 | 12 | M10
morepic-1 morepic-2

Slide nut A4

Item no. 1147190 | EAN 4012196489671

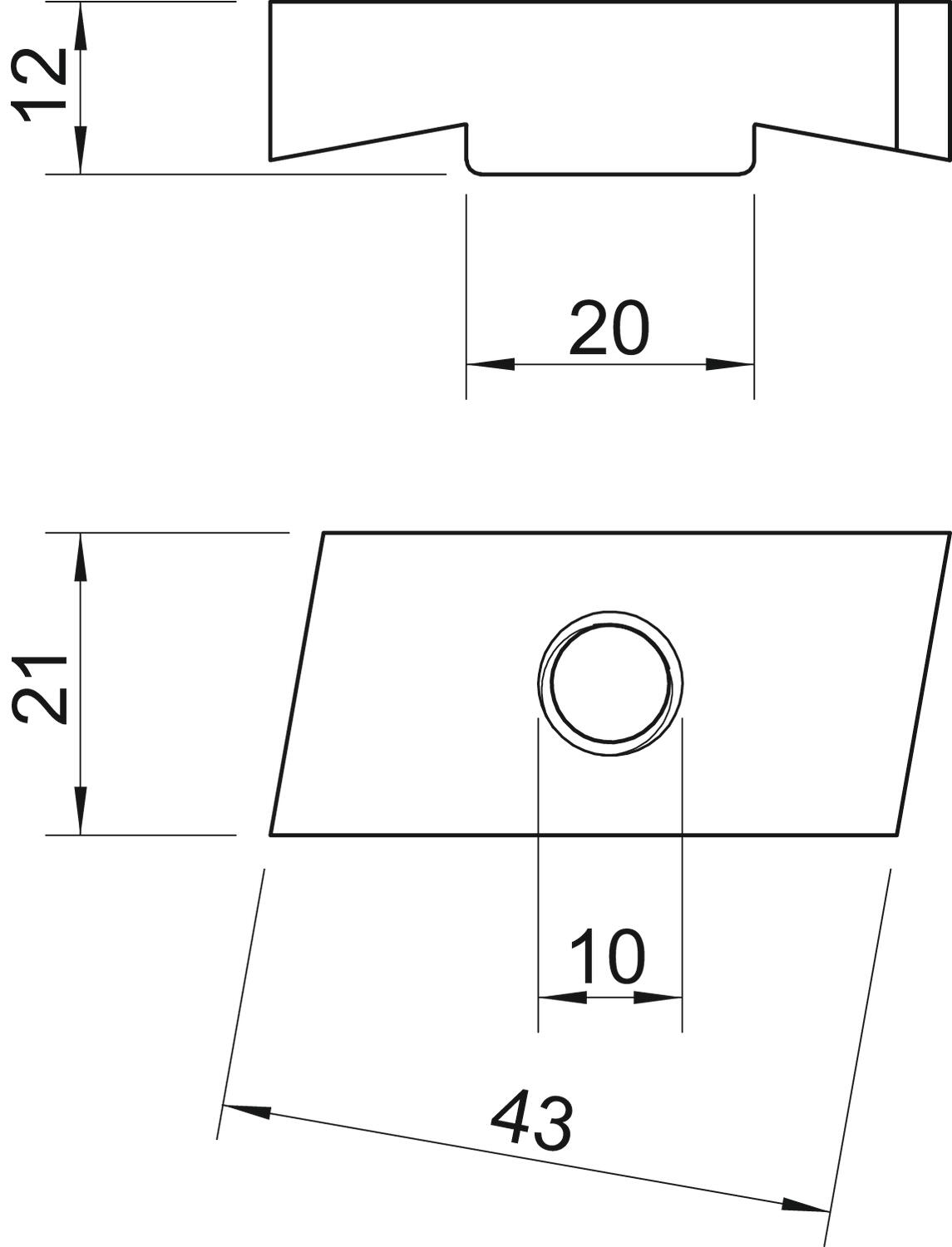

43 mm
21 mm
12 mm
Product description
Product description
Slide nut for use with MS5030 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,305 kg CO₂e / 1 Piece
Dimension M10
Height 12 mm
Length 43 mm
Material Stainless steel
Surface Bright, treated
Thread M10
Thread metric 10
Width 21 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS50SN M6 A4 43 mm 21 mm 12 mm M6 1147172
50 piece
MS50SN M8 A4 43 mm 21 mm 12 mm M8 1147186
50 piece
MS50SN M10 A4 43 mm 21 mm 12 mm M10 1147190
50 piece
MS50SN M12 A4 43 mm 21 mm 12 mm M12 1147194
50 piece
Downloads

Download

Download

MS50SN M10 A4 / 1147190
Download
