Slide nut A4 43 | 21 | 12 | M12
morepic-1 morepic-2

Slide nut A4

Item no. 1147194 | EAN 4012196489688

43 mm
21 mm
12 mm
Product description

Product description

Slide nut for use with MS5030 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

Dimension M12
Material Stainless steel
Surface Bright, treated
Thread M12
Thread metric 12
With spring no

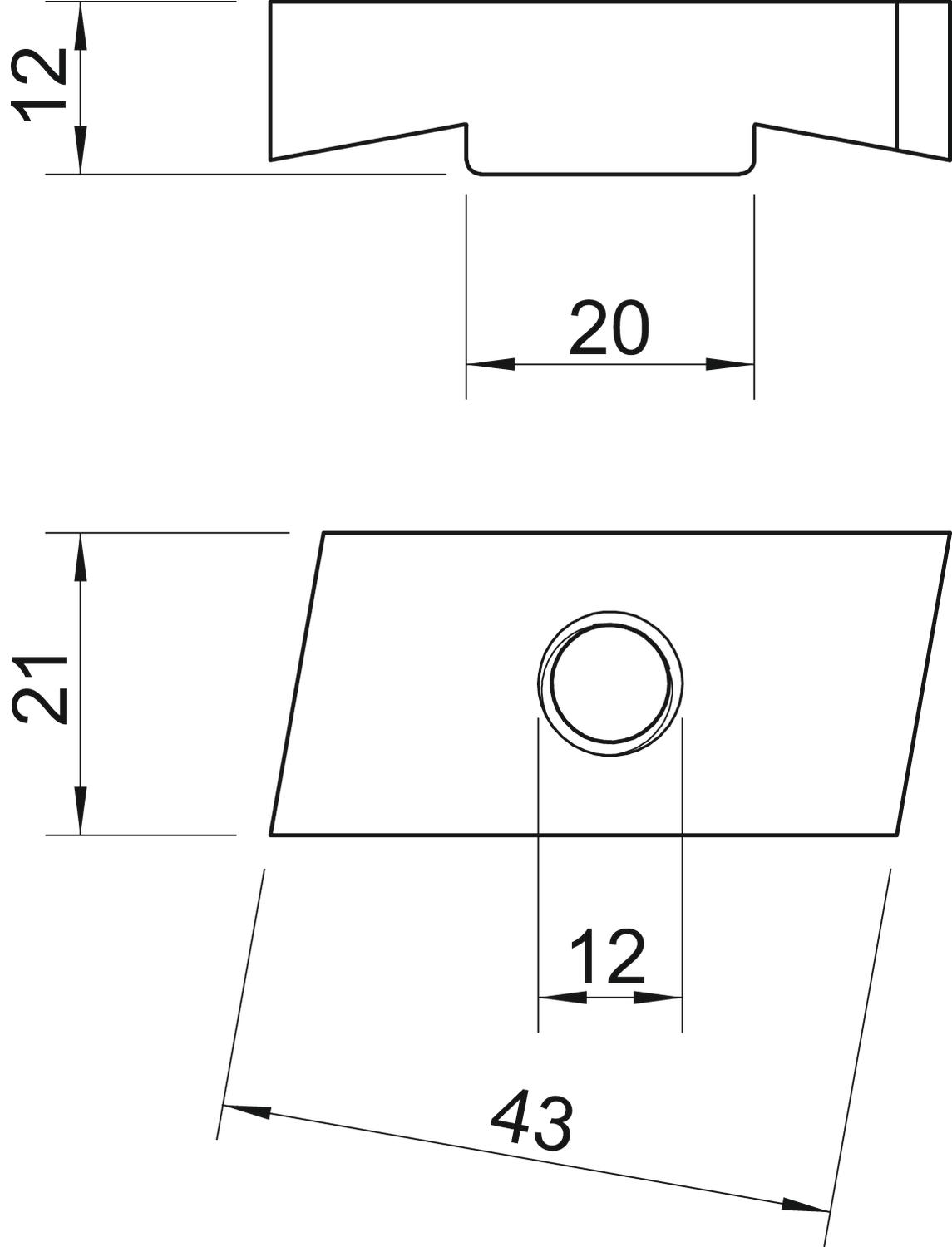

Dimensions

Height 12 mm
Length 43 mm
Width 21 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS50SN M6 A4 43 mm 21 mm 12 mm M6 1147172
50 piece
MS50SN M8 A4 43 mm 21 mm 12 mm M8 1147186
50 piece
MS50SN M10 A4 43 mm 21 mm 12 mm M10 1147190
50 piece
MS50SN M12 A4 43 mm 21 mm 12 mm M12 1147194
50 piece
Downloads

Download

Download

MS50SN M12 A4 / 1147194
Download
