Slide nut with spring ZL 35 | 20 | 8 | M10
morepic-1 morepic-2

Slide nut with spring ZL

Item no. 1147314 | EAN 4012196489954

35 mm
20 mm
Product description
Product description
Slide nut with spring for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm

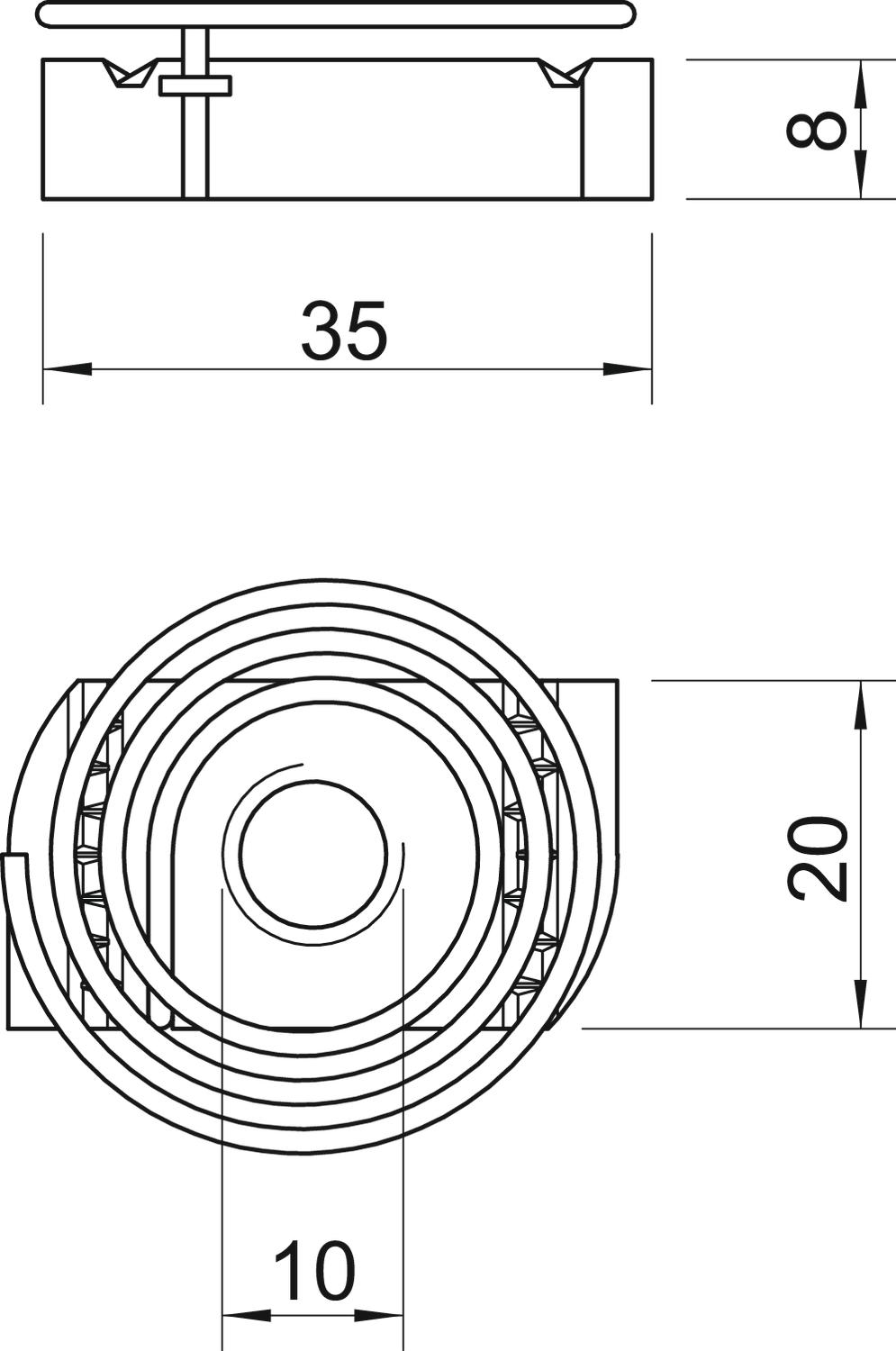

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,112 kg CO₂e / 1 Piece
Dimension M10
Height 8 mm
Length 35 mm
Material Steel
Surface Hot galvanized
Thread M10
Thread metric 10
Width 20 mm
With spring yes
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SNF M6 F 35 mm 20 mm 6 mm M6 1147306
50 piece
MS41SNF M8 F 35 mm 20 mm 6 mm M8 1147310
50 piece
MS41SNF M10 F 35 mm 20 mm 8 mm M10 1147314
50 piece
MS41SNF M12 F 35 mm 20 mm 9.5 mm M12 1147318
50 piece
Downloads

Download

Download

EU declaration of conformity MS41SNF M10 F / 1147314 , 0.04MB , pdf
Download
REACH Declaration of conformity MS41SNF M10 F / 1147314 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS41SNF M10 F / 1147314 , 0.12MB , pdf
Download

MS41SNF M10 F / 1147314
Download
