Slide nut with spring ZL 35 | 20 | 9.5 | M12
morepic-1 morepic-2

Slide nut with spring ZL

Item no. 1147318 | EAN 4012196489961

35 mm
20 mm
Product description
Product description
Slide nut with spring for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,128 kg CO₂e / 1 Piece

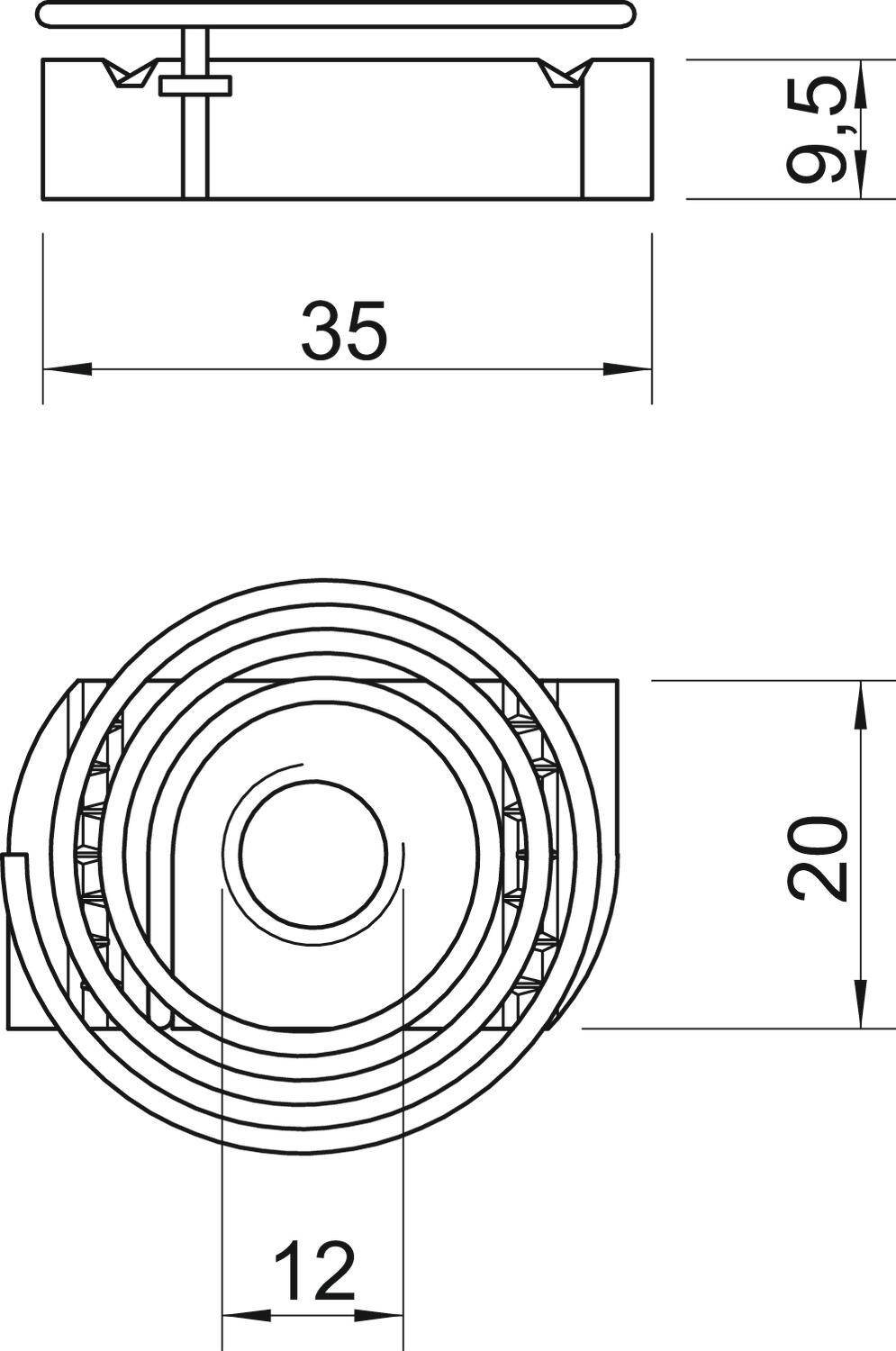

Dimension M12
Height 9,5 mm
Length 35 mm
Material Steel
Surface Hot galvanized
Thread M12
Thread metric 12
Width 20 mm
With spring yes
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SNF M6 F 35 mm 20 mm 6 mm M6 1147306
50 piece
MS41SNF M8 F 35 mm 20 mm 6 mm M8 1147310
50 piece
MS41SNF M10 F 35 mm 20 mm 8 mm M10 1147314
50 piece
MS41SNF M12 F 35 mm 20 mm 9.5 mm M12 1147318
50 piece
Downloads

Download

Download

EU declaration of conformity MS41SNF M12 F / 1147318 , 0.04MB , pdf
Download
REACH Declaration of conformity MS41SNF M12 F / 1147318 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS41SNF M12 F / 1147318 , 0.12MB , pdf
Download

MS41SNF M12 F / 1147318
