Slide nut ZL 26 | 16.5 | 6 | M10
morepic-1 morepic-2 video-1

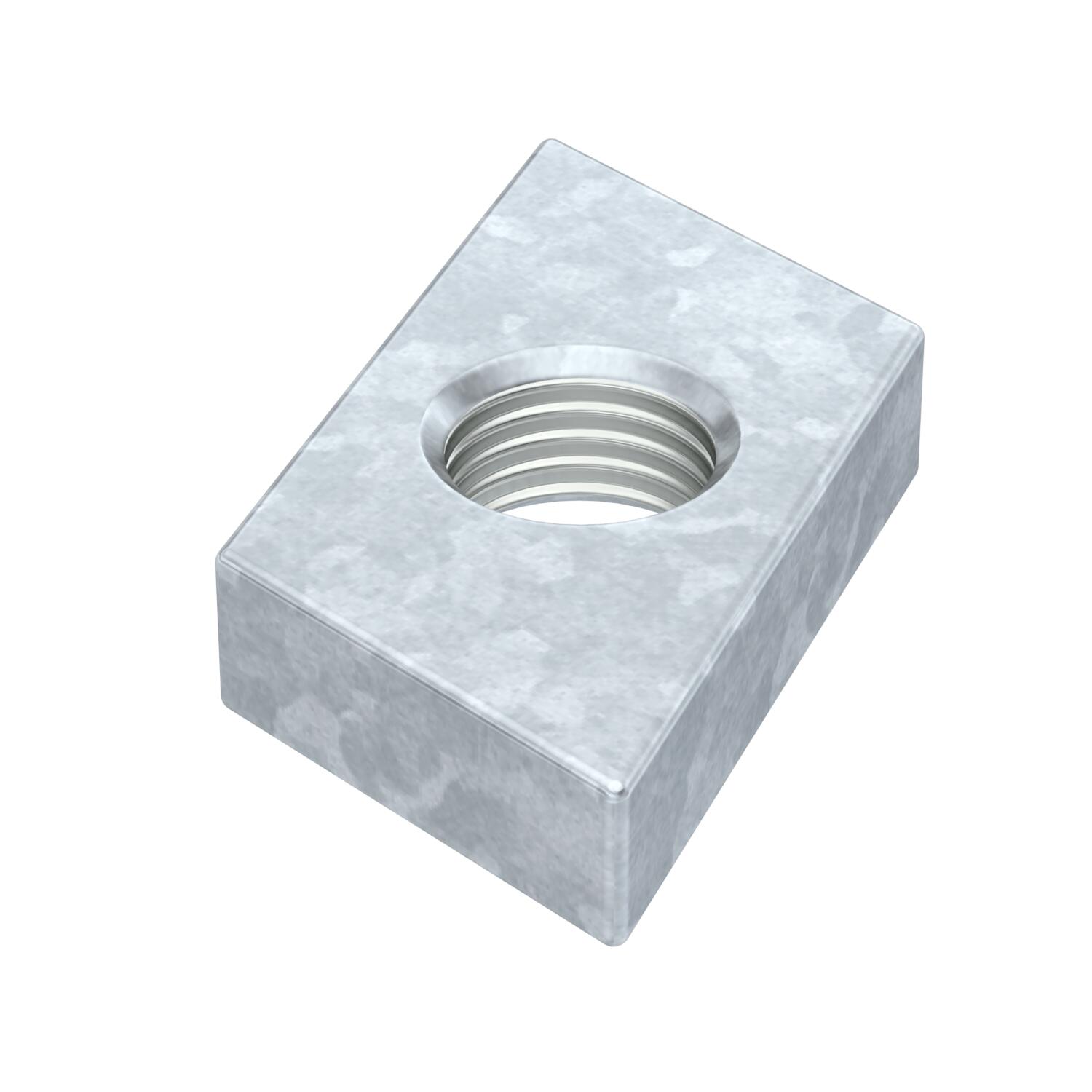

Slide nut ZL

Item no. 1147064 | EAN 4012196488858

26 mm
16.5 mm
Product description
Product description
Slide nut for use with CM3015, CM3518 and AM3518 profile rails.


Slide nut for use with C30 profile rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,04 kg CO₂e / 1 Piece

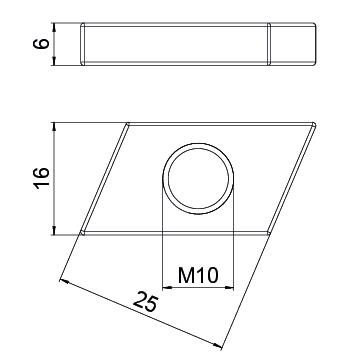

Dimension M10
Dimension B 16,5 mm
Dimension H 6 mm
Dimension L 26 mm
Height 6 mm
Length 26 mm
Material Steel
Surface Zinc slat
Thread M10
Thread metric 10
Width 16,5 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMSN M6 ZL 26 mm 16.5 mm 4 mm M6 1147056
100 piece
ACMSN M8 ZL 26 mm 16.5 mm 5 mm M8 1147060
100 piece
ACMSN M10 ZL 26 mm 16.5 mm 6 mm M10 1147064
100 piece
