Slide nut ZL 35 | 17 | 10 | M10

morepic-1

morepic-2

Slide nut ZL

Item no. 1147114 | EAN 4012196489411

Item no. / Types

Length	35 mm

Width	17 mm

Height

Thread

Product description

Product description

Slide nut for use with MS4022 profile rail.

Technical data

Technical data

Dimension	M10
Dimension B	17 mm
Dimension H	10 mm
Dimension L	30 mm
Height	10 mm
Length	35 mm

Material	Steel
Surface	Zinc slat
Thread	M10
Thread metric	10
Width	17 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS40SN M6 ZL	35 mm	17 mm	10 mm	M6	1147106	piece	50 piece
MS40SN M8 ZL	35 mm	17 mm	10 mm	M8	1147110	piece	50 piece
MS40SN M10 ZL	35 mm	17 mm	10 mm	M10	1147114	piece	50 piece
MS40SN M12 ZL	35 mm	17 mm	11.5 mm	M12	1147118	piece	50 piece

Downloads

Data sheet MS40SN M10 ZL / 1147114 , 0.18MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Brochure Rail systems , 2.10MB , pdf

REACH Declaration of conformity MS40SN M10 ZL / 1147114 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS40SN M10 ZL / 1147114 , 0.12MB , pdf

Download

Product graphic MS40SN M10 ZL / 1147114, 33.41 kB, jpg

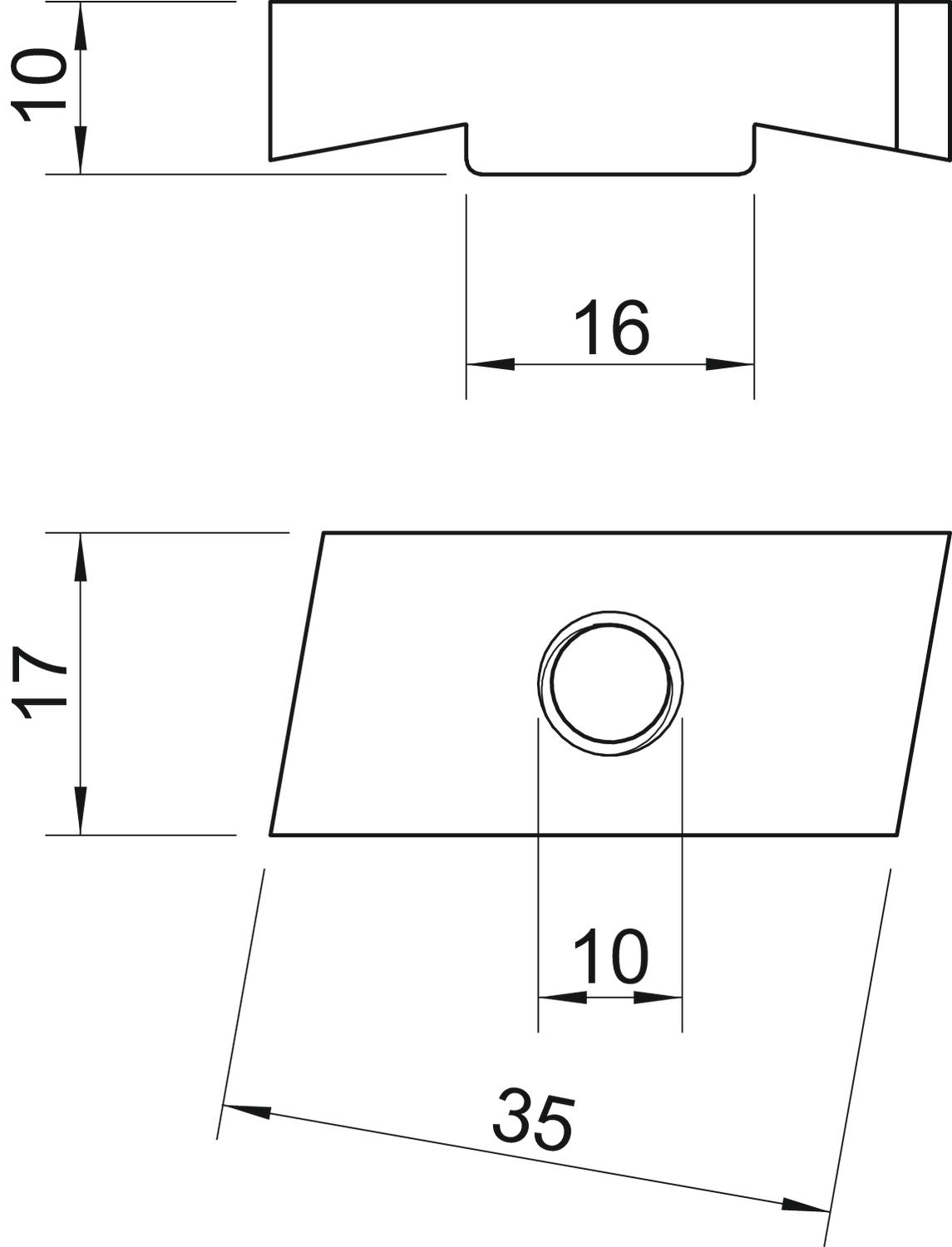

Scale drawing MS40SN M10 ZL / 1147114, 53.36 kB, jpg

MS40SN M10 ZL / 1147114

1147114_KSTP1.stp, 25.51 kB
