Slide nut ZL 35 | 17 | 10 | M6
morepic-1 morepic-2 video-1

Slide nut ZL

Item no. 1147106 | EAN 4012196489398

35 mm
17 mm
Product description
Product description
Slide nut for use with MS4022 profile rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm

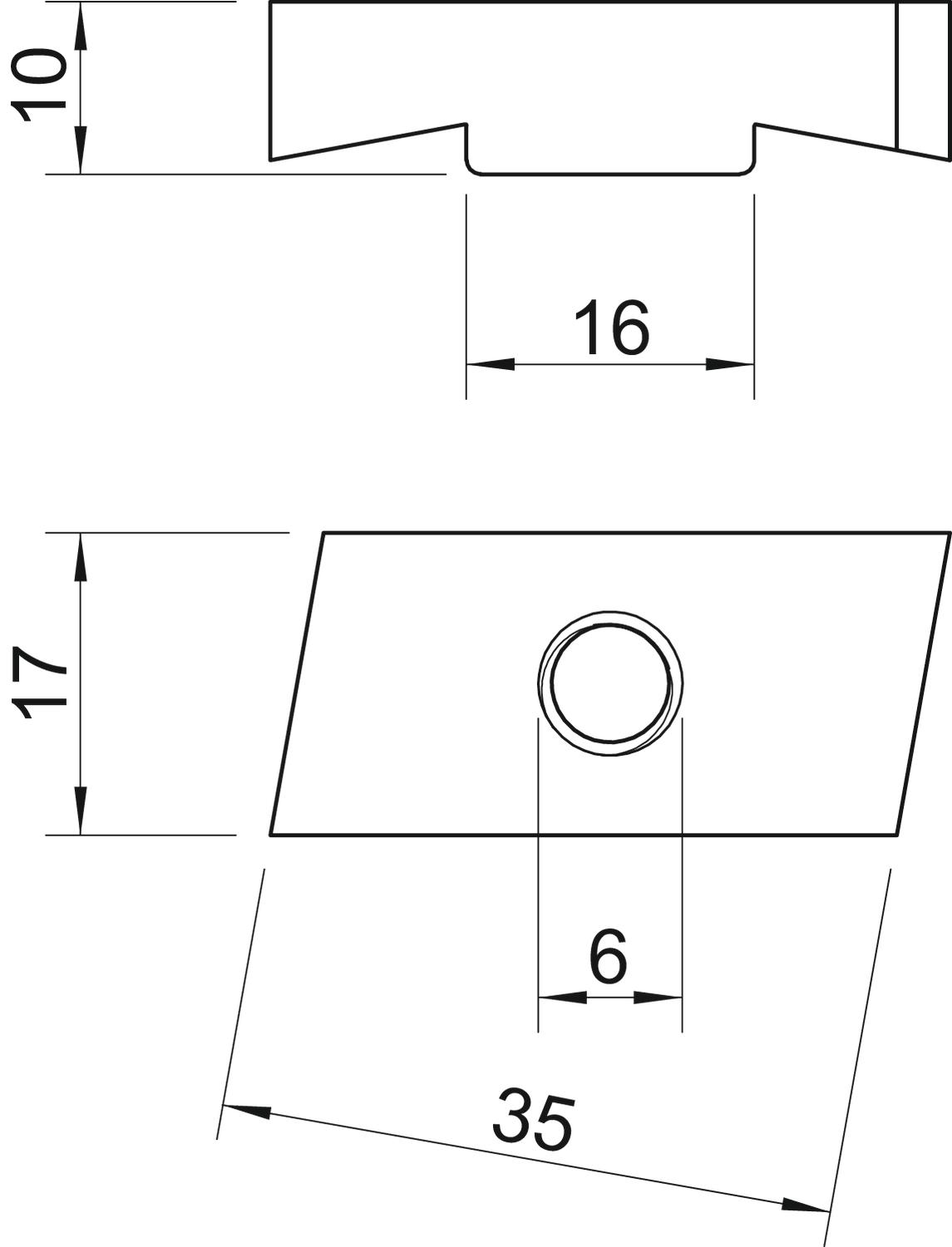

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,002 kg CO₂e / 1 Piece
Dimension M6
Dimension B 17 mm
Dimension H 10 mm
Dimension L 30 mm
Height 10 mm
Length 35 mm
Material Steel
Surface Zinc slat
Thread M6
Thread metric 6
Width 17 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS40SN M6 ZL 35 mm 17 mm 10 mm M6 1147106
50 piece
MS40SN M8 ZL 35 mm 17 mm 10 mm M8 1147110
50 piece
MS40SN M10 ZL 35 mm 17 mm 10 mm M10 1147114
50 piece
MS40SN M12 ZL 35 mm 17 mm 11.5 mm M12 1147118
50 piece
