- Product description
-
Product description

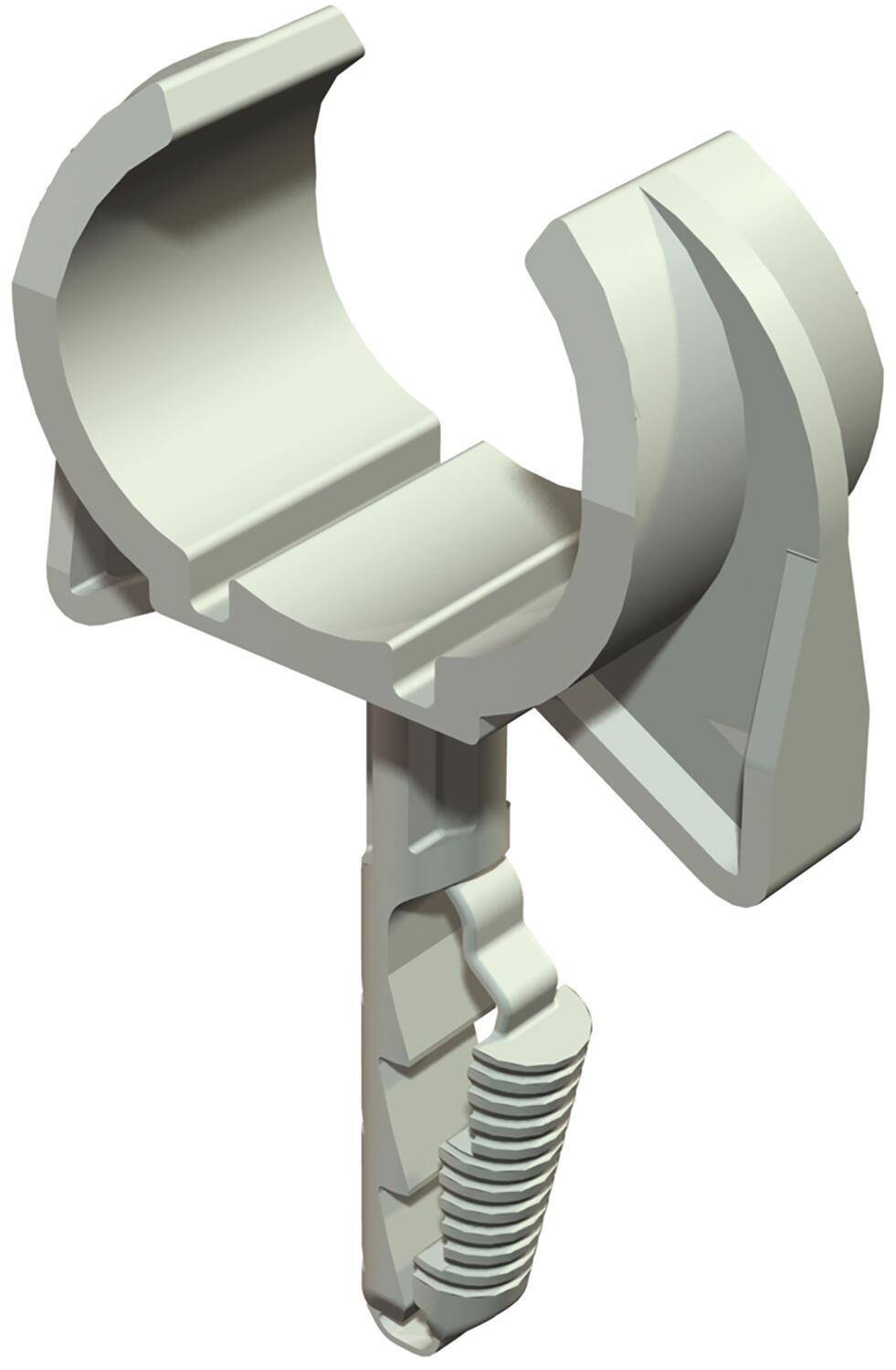

With moulded-on push-fit plug for rapid mounting in concrete walls and masonry.
Push plug into hole until the clip makes contact with the surface. When the pipe is pressed into the clip, the arms of the clip grip it.
- Technical data
-
Technical data

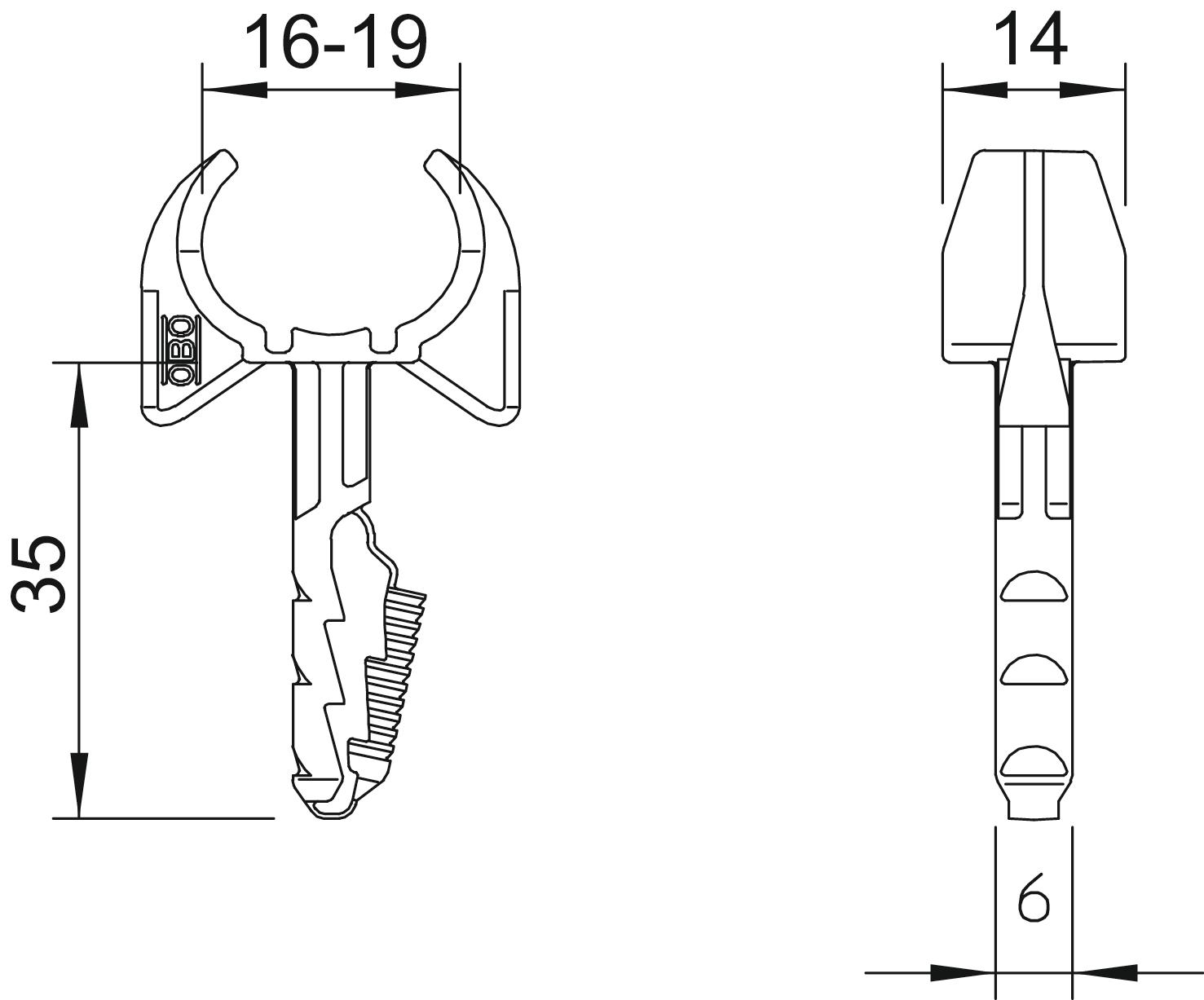

Breaking load for concrete B25 150 N Clamping range D, max. 19 mm Clamping range D, min. 16 mm Colour Light grey; RAL 7035 Dimension 16-19mm Drill hole depth 40 mm Drill hole diameter, min. 6 mm Fastening type Plug fastening Halogen-free yes Material Polyamide Number of cables/pipes 1 Version for Closed - All types
-
All types
- Downloads
-
Data sheet 1975 16-19 / 2148048 , 0.18MB , pdfDeclaration of conformity 1975 16-19 / 2148048 , 0.06MB , pdfREACH Declaration of conformity 1975 16-19 / 2148048 , 0.12MB , pdfRoHS Declaration of conformity 1975 16-19 / 2148048 , 0.12MB , pdf
