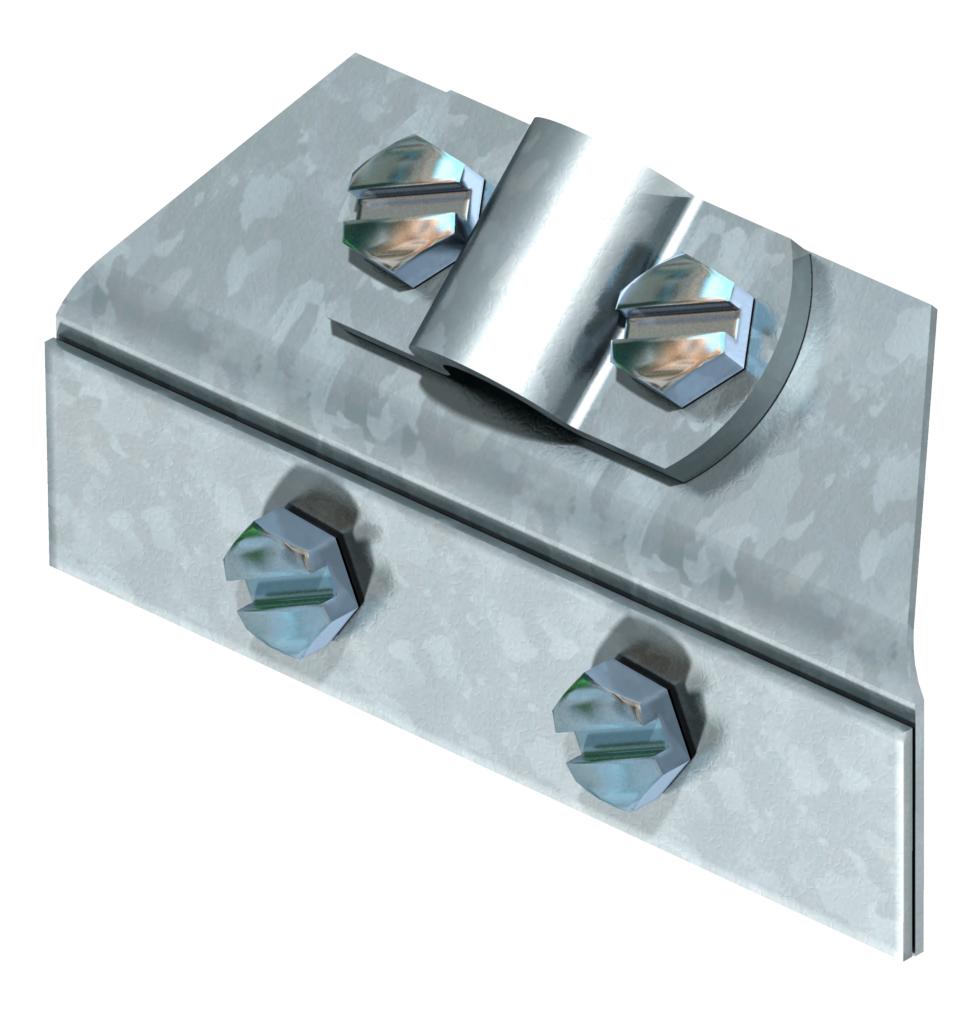

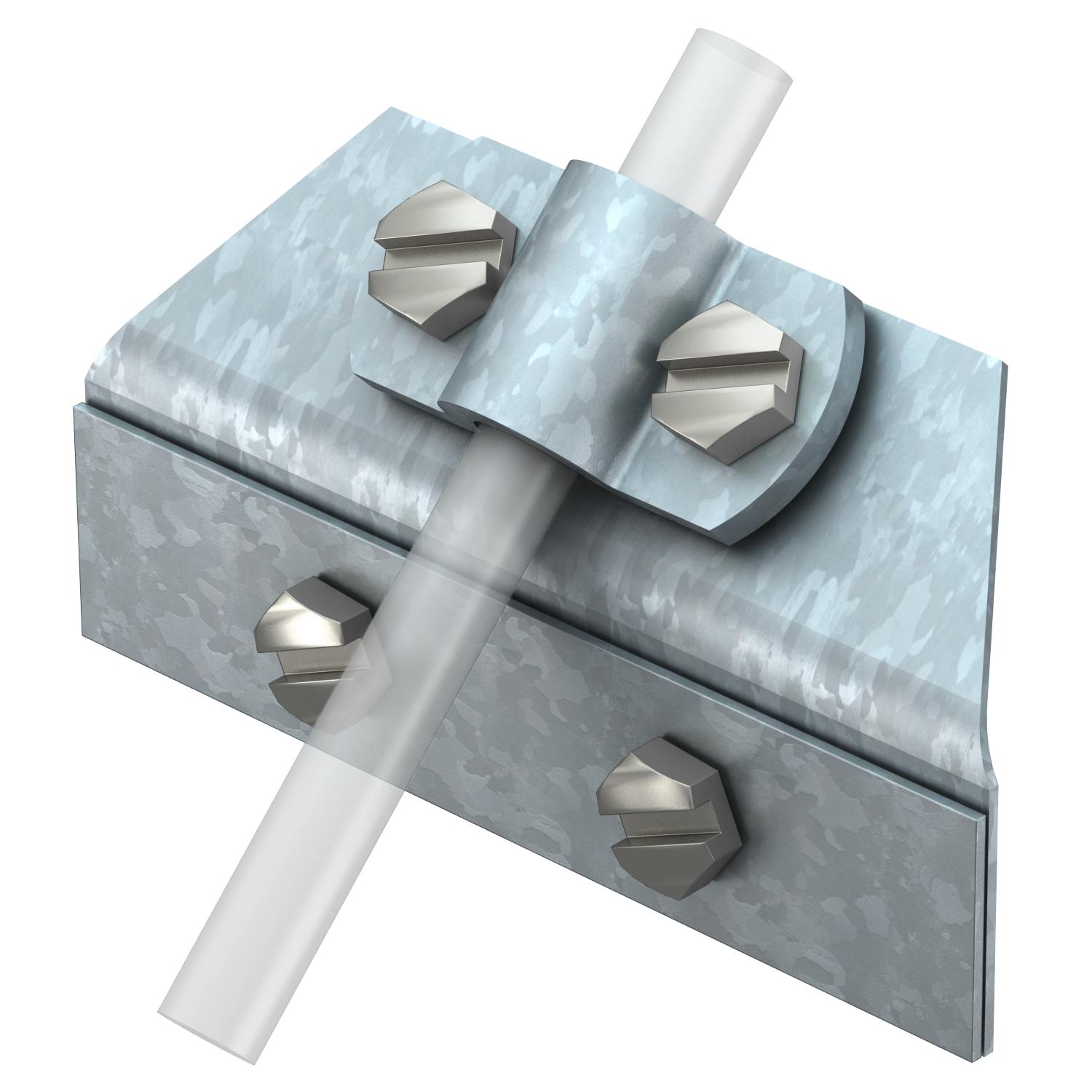

Snow catching grate clamp FT

Item no. 5316510 | EAN 4012195420316

5316510 / 264
Rd 8-10 mm
8 mm
Product description
Product description
• Plate thickness to 8 mm
• With 4 hexagonal bolts M6 x 16
Technical data

Technical data

Clamping range, max. 8 mm
Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Material Steel
Surface Hot galvanized
Type of connector Snow-catching grate clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
264 Rd 8-10 mm 8 mm 5316510
25 piece
Downloads

Download

Download

EU declaration of conformity 264 / 5316510 , 0.06MB , pdf
REACH Declaration of conformity 264 / 5316510 , 0.27MB , pdf
RoHS Declaration of conformity 264 / 5316510 , 0.12MB , pdf

264 / 5316510
