Socket section 5-pin, black
Item no. 6108960 | EAN 4012196688241
- Product description
-
Product description

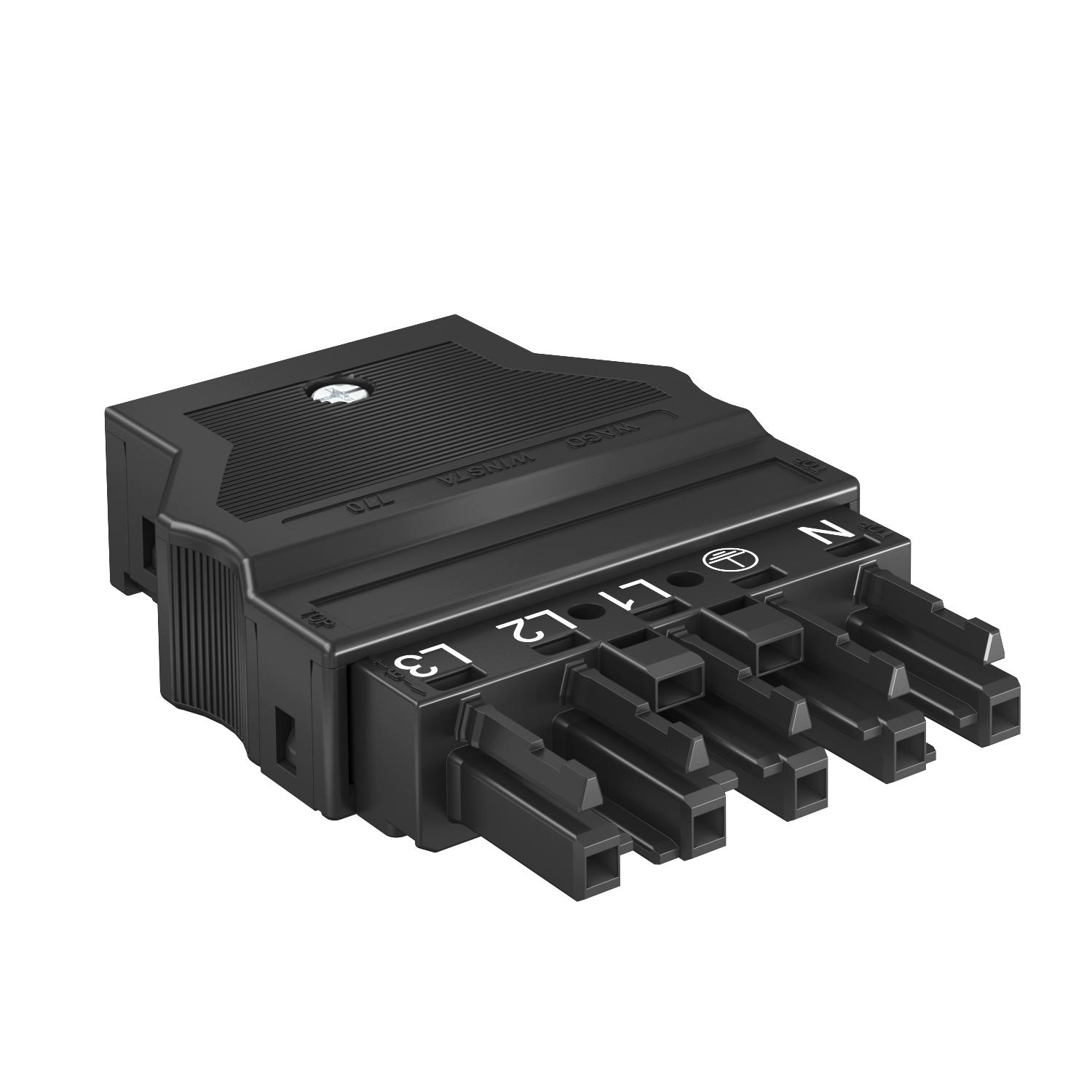

Socket section 5-pin, type WINSTA® MIDI with clamp connection.
Single and multi-wire cables connectable without end sleeve. Not mounted with strain relief and terminable in situ. 250 V, 25 A.
Nominal cross-section: 4 mm²
Stripping length: 55 mm
Insulation removal length: 9 mm
-
- Technical data
-
Technical data

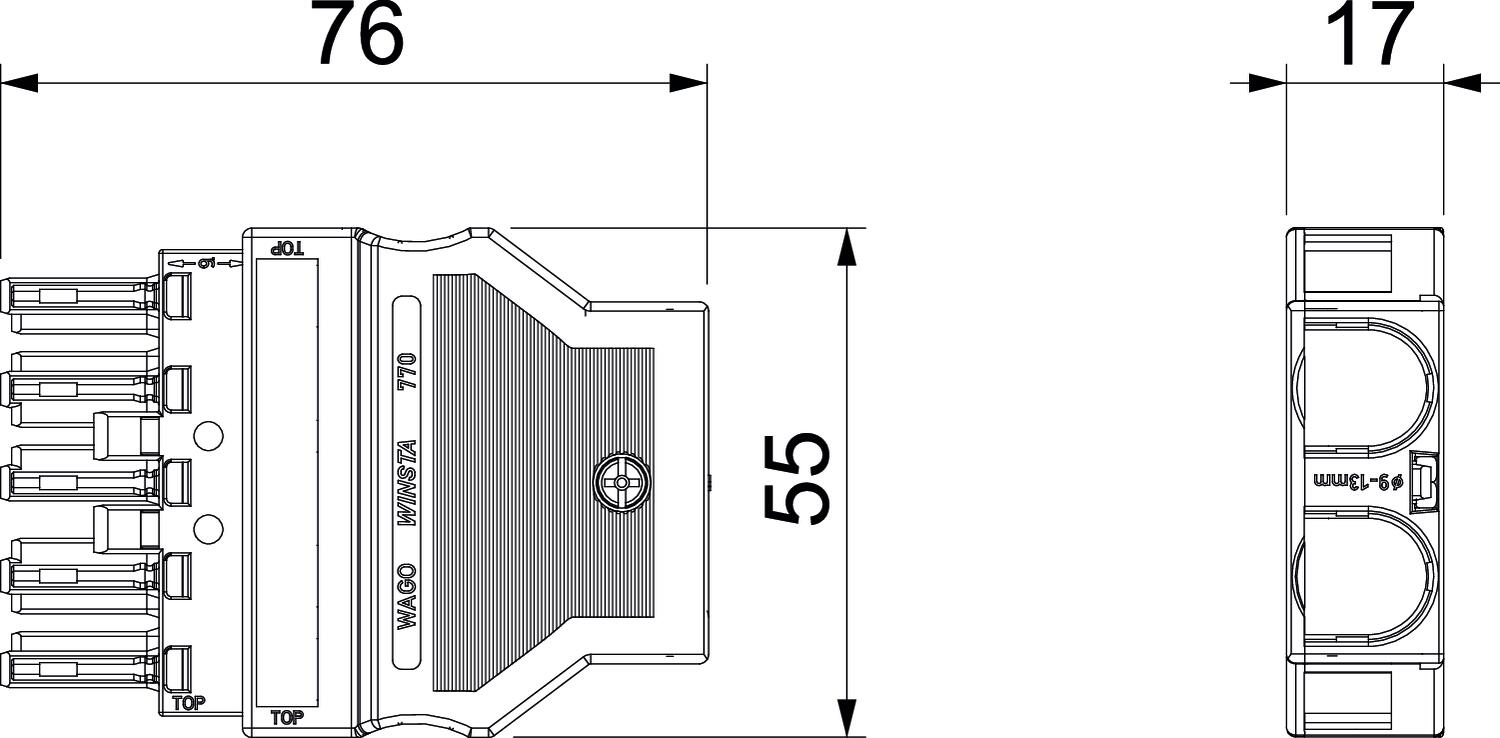

Built-in variants Installation part/plug connection Colour Black Contact material CuSn Dimension 76x55x17 Direction of insertion Straight Halogen-free yes Height 17 mm Length 76 mm Material Polyamide Mechanical encoding yes Nominal current 25 A Nominal voltage 250 V Pin labelling L, N, PE, 1, 2 Plug-in system WINSTA® MIDI Pole number 5 Protection rating IP20 Surface treatment of the contacts Miscellaneous Type of locking Integrated in plug connector Version of the device connection socket Width 55 mm - All types
- Downloads
-
Catalogue Installation systems , 28.45MB , pdfNo invitation to tender text is available for this product.
